FG16OR16 two-core cable by the metre without earth, 2x1.5 to 2x16, CPR 0.6/1kV

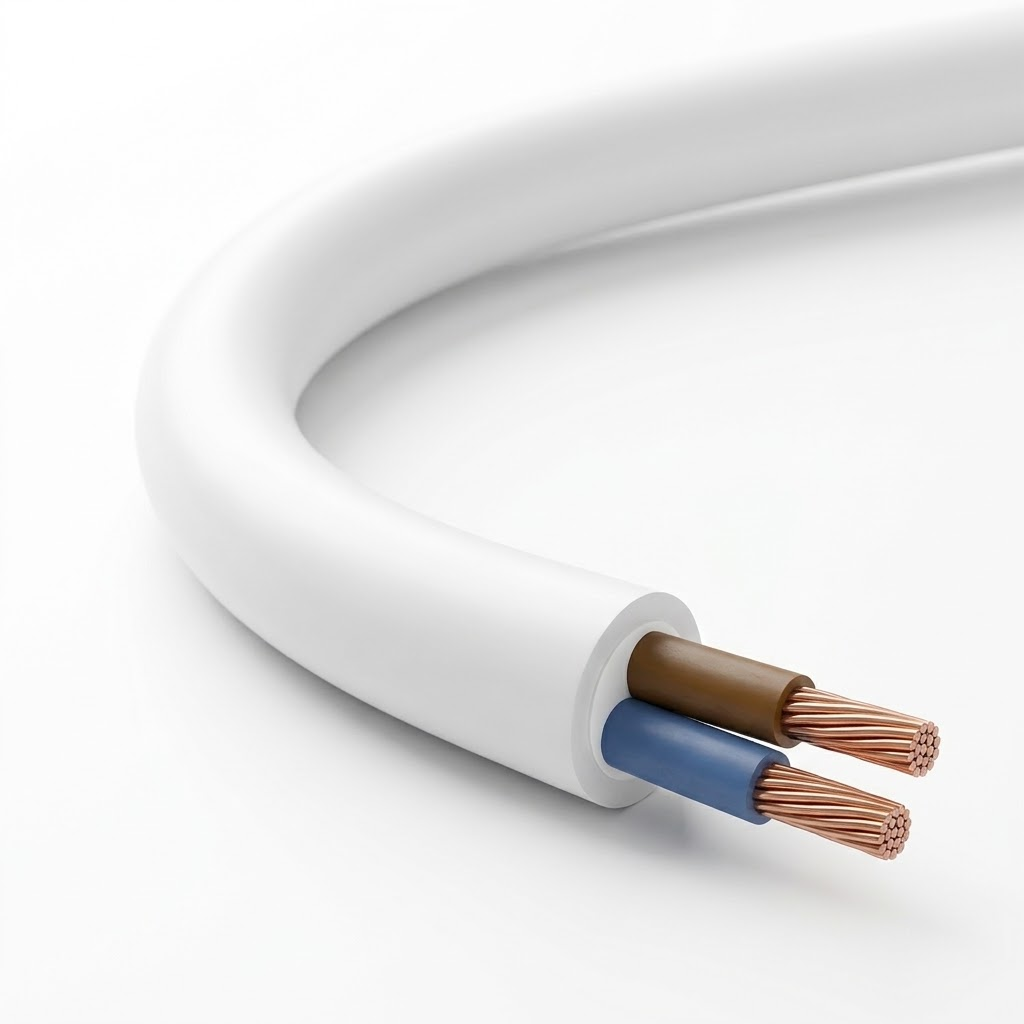

FG16OR16 two-core cable without yellow-green, sold by the metre. Two conductors in the same sheath, insulated for 0.6/1kV.
Suitable for low-voltage DC lines (12V and 24V loads, GX device supplies, pumps, lights) and for AC lines where the earth is run as a separate conductor.
Key features
Two conductorsPositive and negative, or phase and neutral.
0.6/1kV insulationPlenty of margin even on 48V systems.
By the metreOrder only the metres you need.
CPR standardCompliant with the Construction Products Regulation.
Technical specifications
| Feature | Value |
|---|---|
| Cable type | FG16OR16 multicore, compliant with CPR regulation (EU 305/2011) |
| Fire reaction class | Cca-s3,d1,a3 (EN 50575) |
| Rated voltage | 0.6/1kV |
| Conductor | Flexible annealed copper, class 5 (IEC 60228) |
| Insulation | HEPR G16 ethylene propylene rubber, 90°C |
| Sheath | Grey PVC |
| Max operating temperature | 90°C |
| Short-circuit temperature | 250°C |
| Min bending radius | 4 times the diameter |
| Installation | Fixed, indoor and outdoor, also underground |
| Sold | By the metre: the quantity in the cart is the number of metres |
Available sizes
| Cores x size | Typical use |
|---|---|
| 2x1.5 | Signals, small 12V loads |
| 2x2.5 | 12V and 24V loads up to about 16A |
| 2x4 | DC loads up to about 25A |
| 2x6 | DC-DC converter and charge controller outputs |
| 2x10 | High currents and long runs |
| 2x16 | Main DC lines |
In DC the cross-section must also be chosen for voltage drop: at 12V you need larger sizes than at 230V.
