Collection: Victron Energy – Fuses & Fuse Holders

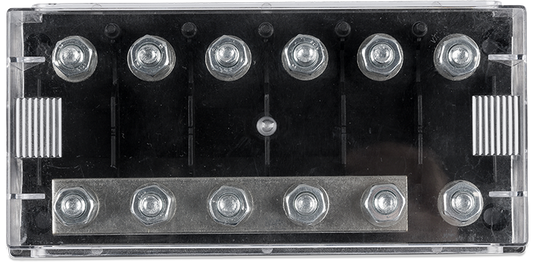

Victron Energy fuses and fuse holders for DC installations: MEGA fuses from 40A to 500A in versions rated up to 32V and up to 80V, single MEGA fuse holders, six-way holders with a built-in 250A busbar and CNN fuses of 325A at 80V for the Lynx Shunt.

In DC the rated voltage of a fuse matters as much as the current: a MEGA rated to 32V used on a 48V system may fail to extinguish the arc, because in DC there is no zero crossing to help interruption. For 48V you need the versions rated to 80V.

The rating is worked out on the maximum continuous current of the load, with a margin, and on the cable cross-section.
