• Kit completo Victron Energy 48V 20kWh inverter 10kVA, 8kVA o 6,5kVA con 4 batterie Lithium NG 51,2V 100Ah, BMS, comunicazione e protezioni – Offerta
1 1

Victron Energy

Complete Victron Energy 48V 20kWh system, 10kVA, 8kVA or 6.5kVA inverter with 4 Lithium NG 51.2V 100Ah batteries, BMS, communication and protection – Offer

Complete Victron Energy 48V 20kWh system, 10kVA, 8kVA or 6.5kVA inverter with 4 Lithium NG 51.2V 100Ah batteries, BMS, communication and protection – Offer

€11,954.64
€13,341.54 €11,954.64
Sale Sold out Excl. VAT — calculated in the cart
See the price with VAT

Price including VAT by delivery country

  • Italy22% €14,584.66
  • Germany19% €14,226.02
  • France20% €14,345.56
  • Austria20% €14,345.56
  • Belgium21% €14,465.11
  • Bulgaria20% €14,345.56
  • Croatia25% €14,943.30
  • Cyprus19% €14,226.02
  • Czech Republic21% €14,465.11
  • Denmark25% €14,943.30
  • Estonia24% €14,823.75
  • Finland25.5% €15,003.07
  • Greece24% €14,823.75
  • Hungary27% €15,182.39
  • Ireland23% €14,704.20
  • Latvia21% €14,465.11
  • Lithuania21% €14,465.11
  • Luxembourg17% €13,986.92
  • Malta18% €14,106.47
  • Netherlands21% €14,465.11
  • Poland23% €14,704.20
  • Portugal23% €14,704.20
  • Romania21% €14,465.11
  • Slovakia23% €14,704.20
  • Slovenia22% €14,584.66
  • Spain21% €14,465.11
  • Sweden25% €14,943.30

Shown prices exclude VAT. At checkout the rate of the delivery country applies. Businesses with a valid EU VAT number buy without VAT (reverse charge).

Inverter
  • Prices exclude VAT: tax is calculated in the cart based on the delivery country.
  • EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
  • Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.

AVAILABILITY

Product available, quantity not tracked

Shipping

  • Italy: €13 on orders up to €150, free shipping over €150.
  • European Union: 60 € per order, with no threshold

Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.

Read the full shipping conditions

View full details

OFFER

This complete Victron Energy kit is on special offer.

Quattro 10kVA: €11,954.64 instead of €13,341.54
Quattro 8kVA: €11,643.44 instead of €12,991.44
MultiPlus-II 6.5kVA: €10,820.76 instead of €12,065.86

A 48V Victron energy storage system with the entire DC side included: 20kWh of 51.2V Lithium NG batteries, a Victron inverter/charger of your choice: 10kVA or 8kVA Quattro, or 6.5kVA MultiPlus-II, two independent banks each with its own Lynx Smart BMS NG, Cerbo GX monitoring with touch display and a 48V→12V converter for low-voltage loads.

Every battery is a 48V module and they all run in parallel: no series links, and the Lynx busbars in the kit already have free connections to grow the bank to eight batteries. Everything needed to wire batteries, protection, Lynx busbars, inverter and Orion is in the box, sized according to Victron's manuals.

System at a glance

System voltage51.2V nominal
Capacity400Ah, 20.48kWh
Batteries4× Victron Lithium NG 51.2V 100Ah LiFePO4, all in parallel
Battery management2 independent banks of 2 batteries, each with its own Lynx Smart BMS NG 500A
Inverter/chargeryour choice of Victron Quattro 48/10000/140-100/100 (10kVA, 140A charging, two AC inputs), Quattro 48/8000/110-100/100 (8kVA, 110A charging, two AC inputs) or MultiPlus-II 48/6k5/100-50 (6.5kVA, 100A charging, one AC input)
Protectiona Class T fuse on every battery, MEGA fuses on the loads
12V outputOrion-Tr 48/12-30A isolated, 360W DC-DC converter
MonitoringCerbo GX MK2 with GX Touch 70, VRM portal
Wiring included120mm², 35mm² and 10mm² battery cables with their lugs, plus those for the chosen inverter, Class T fuses with holders and MEGA fuses, VE.Bus and VE.Can communication cables, M8 extension cables for the batteries, earth cable, control cable, ferrules, diodes and fuse to power the Cerbo GX, IP65 enclosure
Total weightapprox. 230kg, shipped on a pallet

How it is built

The four batteries are split into two independent banks of two, each with its own Lynx busbar and its own Lynx Smart BMS NG. Every battery has its own Class T fuse on the positive, as the Victron manual requires, and reaches the busbar through cables of identical length, so they all share the load evenly. Both banks meet on the Lynx busbar that feeds the inverter and the 12V converter, each on its own fuse.

BMS, inverter and Cerbo GX talk to each other, so charging and discharging are managed by the Victron electronics: each BMS watches the cells of its own batteries. The Cerbo GX is powered from both banks and stays on even when one of them is switched off for maintenance.

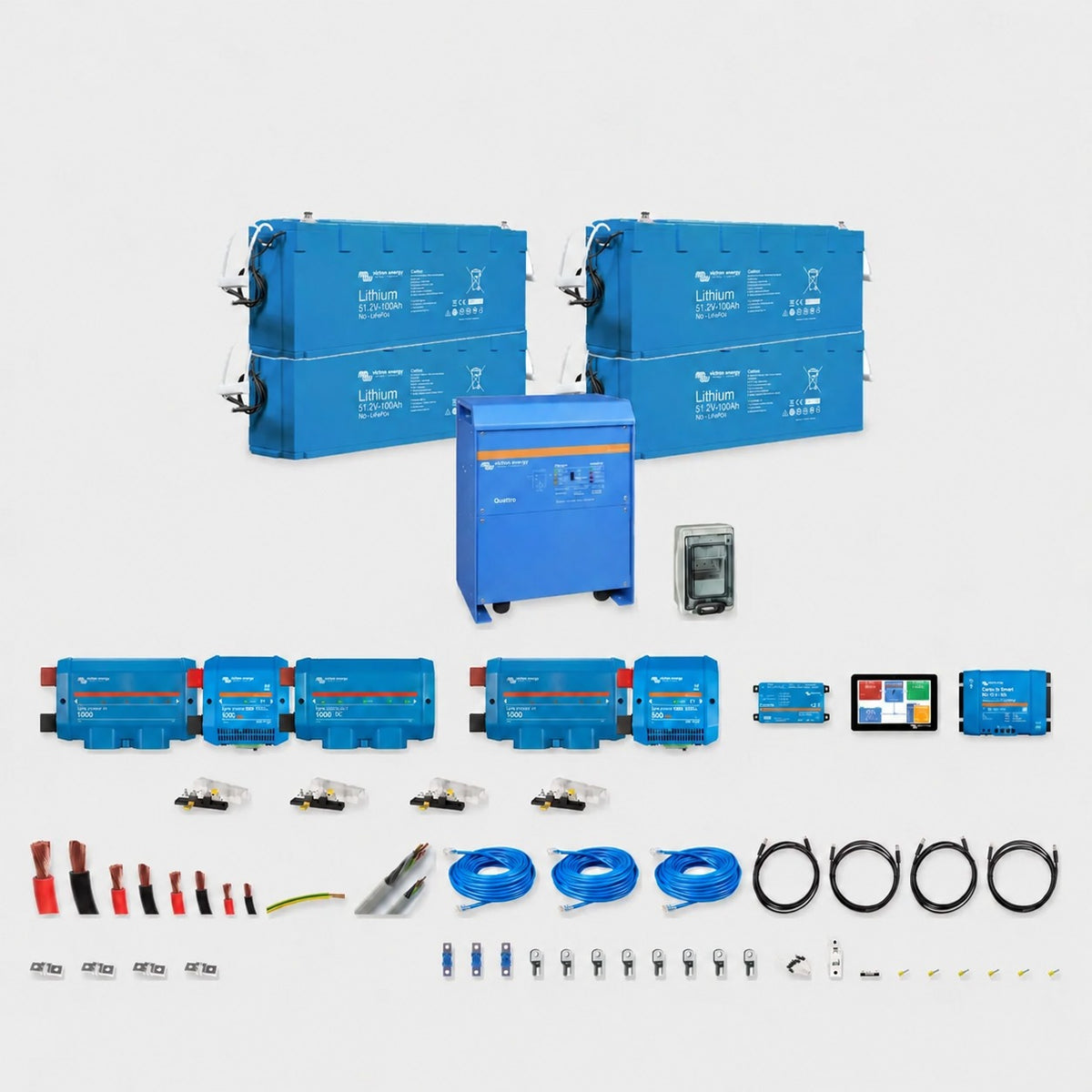

What's in the kit

Cable cross-sections and fuse ratings are the ones Victron's manuals specify for this configuration: we take care of the sizing.

Not included: solar panels and MPPT controllers, AC-side wiring and protection (AC panel, breakers, RCD), battery racks or brackets, installation and commissioning.

Cables are supplied for a compact layout, with batteries, busbars and inverter close together. If your plant room needs longer runs, tell us before ordering and we will adapt the material.

Delivery

  • Delivered in 10-20 days, on a pallet
  • Shipping to Italy and the European Union
  • Prices exclude VAT
