Pallet of 36 photovoltaic modules Suntech Ultra T 2.0 450 W N-Type TOPCon monofacial double glass full black 16.2 kWp
Pallet of 36 photovoltaic modules Suntech Ultra T 2.0 450 W N-Type TOPCon monofacial double glass full black 16.2 kWp
Regular price
€3,350.21
Regular price
Sale price
€3,350.21
Unit price
per
Tax included.
SOLAR PANEL SHIPPING
- Italy: 120 €
- European Union: 350 €
Dedicated rate: modules, pallets and kits with panels ship on a pallet with a specialised carrier. Free shipping over €150 does not apply here. The exact amount is confirmed at checkout; for non-EU countries please ask for a quote.
Couldn't load pickup availability
Prices include 22% Italian VAT; the reduced 10% rate covers only goods for photovoltaic and storage systems, with a customer declaration. From abroad: choose 22% VAT, or for 0% VAT place the order by bank transfer without paying and we send you a proforma invoice.
How VAT works ›
How VAT works ›
Delivery in 10-20 daysFull blackDouble glassWarranty 25 yearsTier 1Suntech

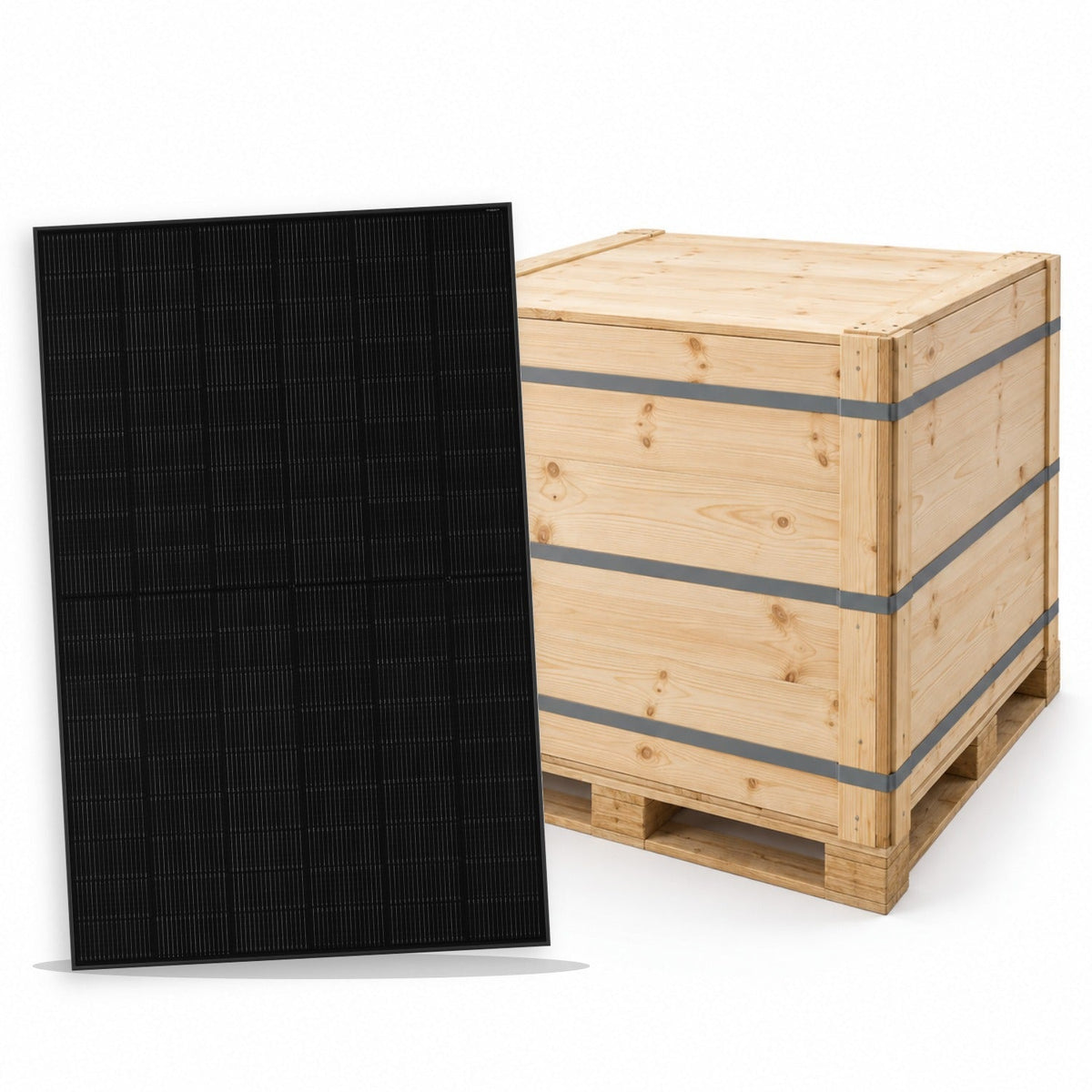

Complete pallet of 36 modules.
Pallet of 36 photovoltaic modules Suntech Ultra T 2.0 450 W N-Type TOPCon monofacial double glass full black 16.2 kWp

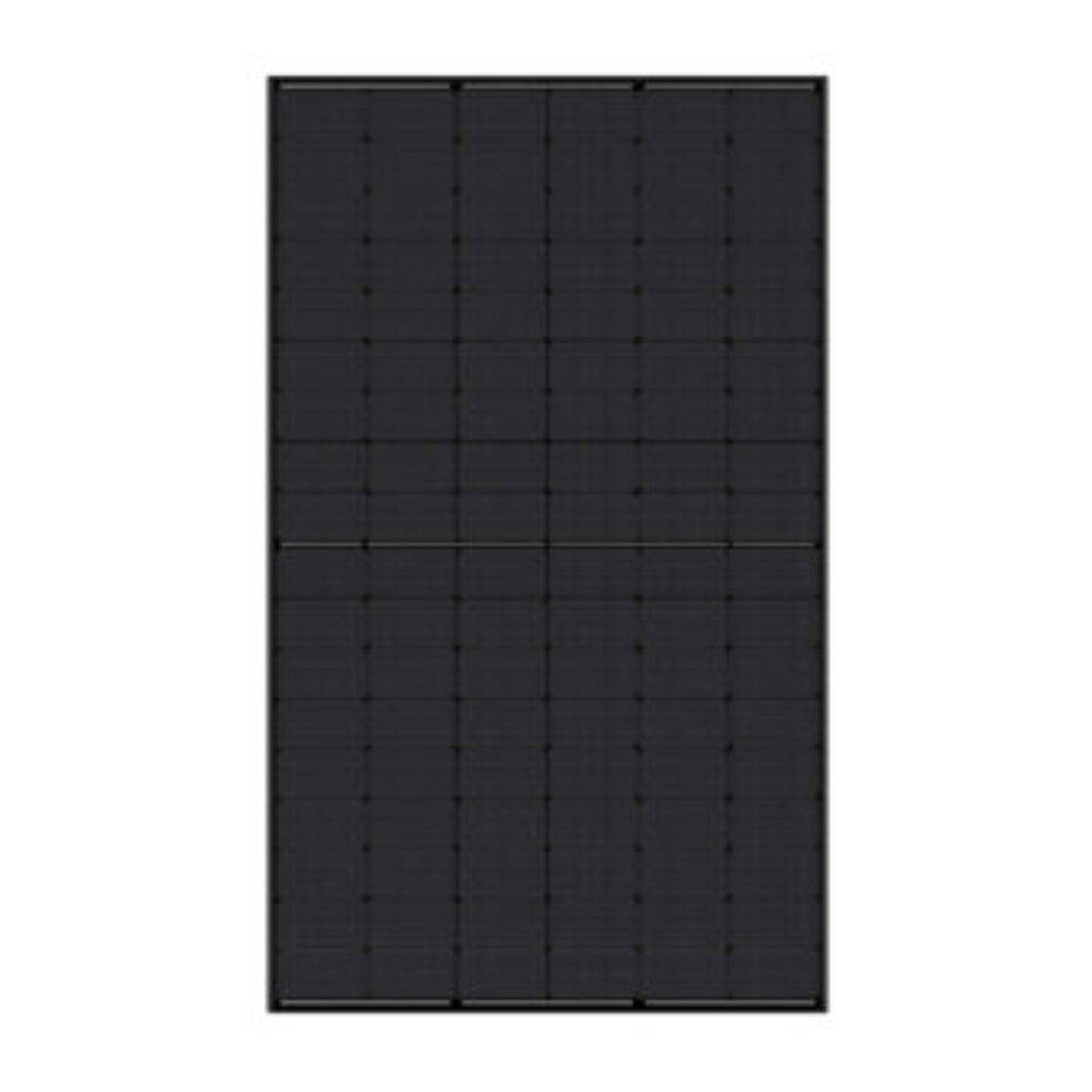

This item is a complete pallet of 36 Suntech STP450S-H48-NFB+ photovoltaic modules from the Ultra T 2.0 series, for an installable output of 16.2 kWp. The modules measure 1762 x 1134 mm and all come from the same production batch, in the full black version.
The module carries N-Type TOPCon monocrystalline cells, for an efficiency of 22.5 %. The construction is double glass with a black aluminium frame 30 mm thick and 16 busbars.
Maximum static load 5400 / 2400 Pa, fire performance class Class C, Tier 1 manufacturer. Product warranty 25 years and performance warranty 30 years linear.
Key strengths
16.2 kWp per pallet36 modules of 450 Wp, all from the same production batch.
Full black appearanceBlack aluminium frame: a system that stays discreet on the roof.
Efficiency 22.5 %N-Type TOPCon cells with a high yield per square metre.
Double glassLaminate with no backsheet: higher resistance to moisture, ammonia and PID.
Warranty 25 yearsPlus 30 years linear of performance warranty.
Technical specifications
| Feature | Value |
|---|---|
| Product code | STP450S-H48-NFB+ |
| Modules per pallet | 36 pcs |
| Total pallet output | 16.2 kWp |
| Manufacturer | Suntech |
| Series | Ultra T 2.0 |
| Nominal power (STC) | 450 Wp |
| Module efficiency | 22.5 % |
| Cell technology | N-Type TOPCon monocrystalline |
| Number of busbars | 16 |
| Bifacial module | No |
| Glass | Double glass |
| Frame | Black aluminium, 30 mm thick |
| Appearance | full black |
| Dimensions | 1762 x 1134 x 30 mm |
| Cable length (+) | 1400 mm |
| Maximum static load (snow / wind) | 5400 / 2400 Pa |
| Fire performance class | Class C |
| Tier 1 manufacturer | Yes |
| Product warranty | 25 years |
| Performance warranty | 30 years linear |
Documentation
PDFDatasheetElectrical and mechanical data of the module — STP450S-H48-NFB+PDFInstallation manualMounting and wiring instructions — STP450S-H48-NFB+PDFIEC certificateConformity document of the module — STP450S-H48-NFB+Series or parallel wiring must respect the voltage and current limits of the inverter MPPTs and the electrical design of the system.
