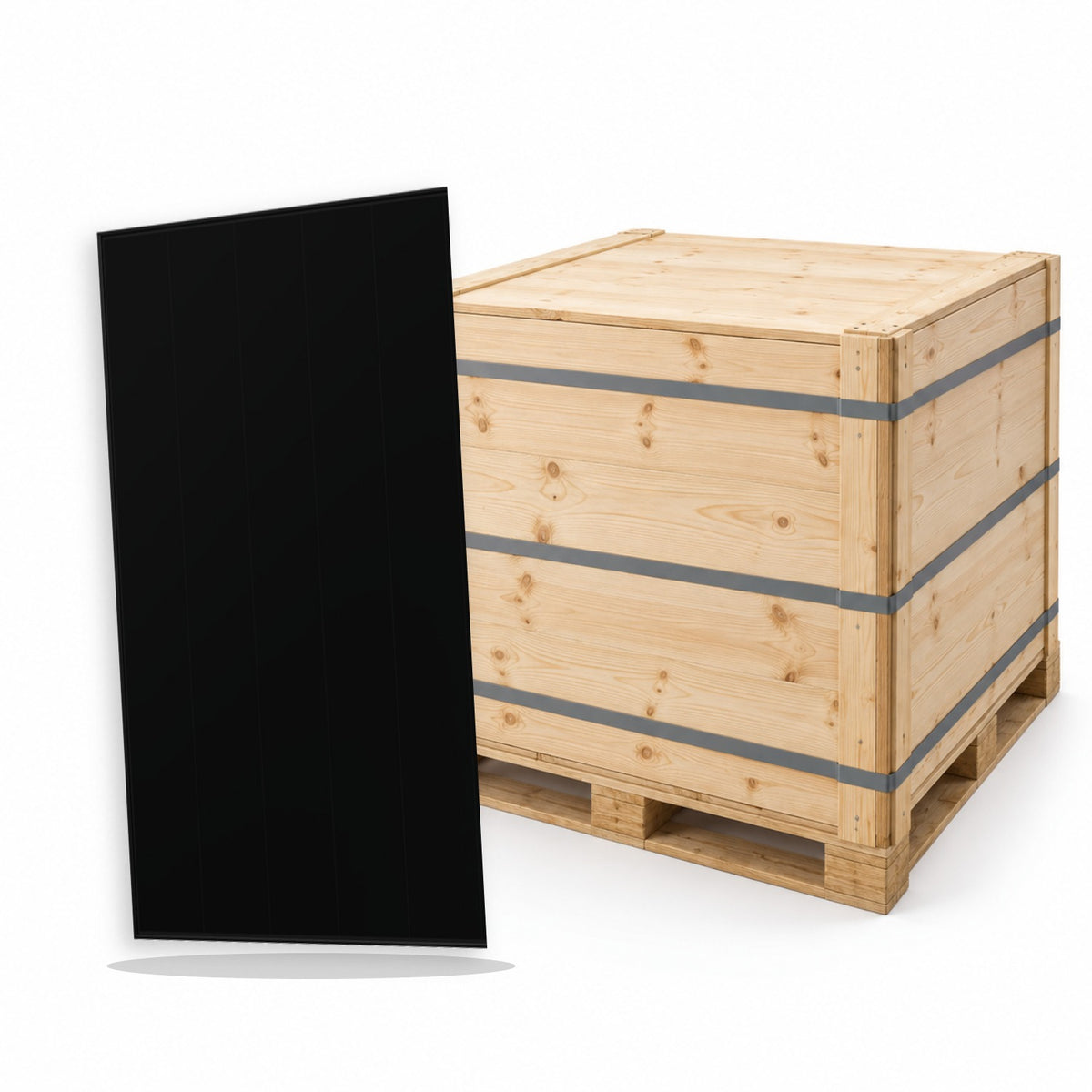

Pallet of 37 AIKO Neostar 3S+ 480W N-Type ABC full black solar panels, 17.76kWp
Pallet of 37 AIKO Neostar 3S+ 480W N-Type ABC full black solar panels, 17.76kWp
Regular price
€4,912.75
Regular price
Sale price
€4,912.75
Unit price
per
See the price with VAT
Price including VAT by delivery country
- Italy22% €5,993.55
- Germany19% €5,846.17
- France20% €5,895.30
- Austria20% €5,895.30
- Belgium21% €5,944.42
- Bulgaria20% €5,895.30
- Croatia25% €6,140.93
- Cyprus19% €5,846.17
- Czech Republic21% €5,944.42
- Denmark25% €6,140.93
- Estonia24% €6,091.81
- Finland25.5% €6,165.50
- Greece24% €6,091.81
- Hungary27% €6,239.19
- Ireland23% €6,042.68
- Latvia21% €5,944.42
- Lithuania21% €5,944.42
- Luxembourg17% €5,747.91
- Malta18% €5,797.04
- Netherlands21% €5,944.42
- Poland23% €6,042.68
- Portugal23% €6,042.68
- Romania21% €5,944.42
- Slovakia23% €6,042.68
- Slovenia22% €5,993.55
- Spain21% €5,944.42
- Sweden25% €6,140.93
Shown prices exclude VAT. At checkout the rate of the delivery country applies. Businesses with a valid EU VAT number buy without VAT (reverse charge).
238 units at this price
Couldn't load pickup availability
- Prices exclude VAT: tax is calculated in the cart based on the delivery country.
- EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
- Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.
SOLAR PANEL SHIPPING
- Italy: 120 €
- European Union: 400 €
Dedicated rate: modules, pallets and kits with panels ship on a pallet with a specialised carrier. Free shipping over €150 does not apply here. The exact amount is confirmed at checkout; for non-EU countries please ask for a quote.
Delivery in 10-20 days30-year warrantyAIKO
Shipping costs
Italy: 120 €. European Union: 350 €.
Italy: 120 €. European Union: 350 €.
Full pallet of 37 modules. Flat shipping: €120.
Pallet of 37 AIKO Neostar 3S+ 480W N-Type ABC full black solar panels, 17.76kWp
This is a complete pallet of 37 AIKO-A480-MCE54Db photovoltaic modules, for a total output of 17.76kWp. Taking the whole pallet costs less than buying the modules individually: you pay for a single shipment, the price per watt is lower and the panels come from the same batch, so they behave consistently in a string. It is the typical choice for a generously sized residential system or a complete commercial installation, ready to install without mixing different supplies.
The module belongs to the Neostar 3S+54 Dual-Glass series and uses third-generation n-type ABC (All Back Contact) cells, 108 cells in a 6 × 18 layout. With every contact moved to the rear, the front surface is completely free of busbars: the result is 24.0% efficiency, among the highest available on a residential module, and a perfectly uniform full-black look. The build is monofacial dual-glass, with two 2.0 mm semi-tempered sheets and a black anodised aluminium frame.
The Pmax temperature coefficient of -0.26%/°C is one of the best on the market and limits losses on hot days, while the back-contact architecture makes the module particularly tolerant of partial shading from chimneys, aerials and trees. With 480W in just 1762 × 1134 mm you get the maximum power per square metre, useful on small roofs. AIKO offers 30 years of product warranty and 30 years of linear performance warranty, with at least 88.85% of rated power in year 30.
Key features
Complete 17.76kWp pallet37 modules from the same batch, ready for a 17.76kWp system with a single order and a single shipment.
3rd-generation n-type ABC cellsEvery contact on the rear: no busbars in view and full use of the cell surface.
24.0% efficiencyOne of the highest efficiencies on the market: 480W in just 1762 × 1134 mm, ideal where roof space is tight.
Shading toleranceThe back-contact architecture reduces the impact of partial shade from chimneys, aerials and trees on output.
Full-black dual glassTwo 2.0 mm semi-tempered glass sheets and a black anodised frame: uniform looks and a more durable structure.
30 + 30 year warranty30 years on the product and 30 years of linear warranty, with at least 88.85% of rated power in year 30.
Technical specifications
| Feature | Value |
|---|---|
| Product code | AIKO-A480-MCE54DB |
| Modules per pallet | 37 pieces |
| Total pallet output | 17.76kWp |
| Manufacturer | AIKO (Aiko Energy) |
| Series | Neostar 3S+54 Dual-Glass (ABC GEN 3) |
| Rated power (STC) | 480W |
| Module efficiency | 24.0% |
| Cell technology | Monocrystalline n-type ABC (All Back Contact), 3rd generation |
| Number of cells | 108 (6 × 18) |
| Voltage at Pmax (Vmp) | 34.50V |
| Current at Pmax (Imp) | 13.92A |
| Open-circuit voltage (Voc) | 40.90V |
| Short-circuit current (Isc) | 14.80A |
| Temperature coefficient of Pmax | -0.26%/°C |
| Temperature coefficient of Voc | -0.22%/°C |
| NOCT / NMOT | 364W — 32.73V / 11.13A |
| Bifacial | No — monofacial dual-glass |
| Glass | Dual coated semi-tempered glass, 2.0 + 2.0 mm |
| Frame | Black anodised aluminium, 30 mm |
| Dimensions | 1762 × 1134 × 30 mm |
| Weight | 24.2 kg (±3%) |
| Connectors | Original MC4-EVO2A |
| Junction box (protection rating) | IP68, 3 bypass diodes |
| Maximum system voltage | 1500V DC |
| Maximum series fuse | 30A |
| Snow load (front) | 5400 Pa |
| Wind load (rear) | 2400 Pa |
| Operating temperature | -40 °C to +70 °C |
| Product warranty | 30 years |
| Performance warranty | 30 years, linear (≥ 88.85% in year 30) |
Documentation
PDFDatasheet AIKO Neostar 3S+54 Dual-Glass AIKO-A-MCE54Db 480-490WOfficial manufacturer documentPDFAIKO NEOSTAR 3S+54 Dual-Glass - pagina prodotto ufficialeOfficial manufacturer documentSeries or parallel wiring must stay within the voltage and current limits of the inverter MPPTs and follow the electrical design of the system.
