• Batteria Accumulo Alta Tensione Pylontech Force H3 10,24kWh 204,8V LiFePO4 con BMU e Base
1 1

Pylontech

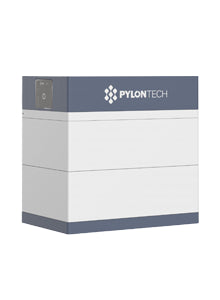

Pylontech Force H3 10.24kWh 204.8V High Voltage LiFePO4 Battery Tower with BMU and Base

Pylontech Force H3 10.24kWh 204.8V High Voltage LiFePO4 Battery Tower with BMU and Base

€2,650.31
€2,650.31
Sale Sold out Excl. VAT — calculated in the cart259 €/kWh
See the price with VAT

Price including VAT by delivery country

  • Italy22% €3,233.37
  • Germany19% €3,153.86
  • France20% €3,180.37
  • Austria20% €3,180.37
  • Belgium21% €3,206.87
  • Bulgaria20% €3,180.37
  • Croatia25% €3,312.88
  • Cyprus19% €3,153.86
  • Czech Republic21% €3,206.87
  • Denmark25% €3,312.88
  • Estonia24% €3,286.38
  • Finland25.5% €3,326.13
  • Greece24% €3,286.38
  • Hungary27% €3,365.89
  • Ireland23% €3,259.88
  • Latvia21% €3,206.87
  • Lithuania21% €3,206.87
  • Luxembourg17% €3,100.86
  • Malta18% €3,127.36
  • Netherlands21% €3,206.87
  • Poland23% €3,259.88
  • Portugal23% €3,259.88
  • Romania21% €3,206.87
  • Slovakia23% €3,259.88
  • Slovenia22% €3,233.37
  • Spain21% €3,206.87
  • Sweden25% €3,312.88

Shown prices exclude VAT. At checkout the rate of the delivery country applies. Businesses with a valid EU VAT number buy without VAT (reverse charge).

  • Prices exclude VAT: tax is calculated in the cart based on the delivery country.
  • EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
  • Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.

AVAILABILITY

313 units in stock at our supplier

Shipping

  • Italy: €13 on orders up to €150, free shipping over €150.
  • European Union: 60 € per order, with no threshold

Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.

Read the full shipping conditions

View full details
Delivery in 10-20 daysPylontech

Pylontech Force H3 10.24kWh 204.8V High Voltage LiFePO4 Battery Tower with BMU and Base

The Pylontech Force H3 10.24kWh tower is a high voltage storage system supplied complete: two LiFePO4 modules of 5.12kWh plus the BMU unit with base and cables. Neither the system manager nor the base has to be ordered separately: the tower arrives ready to stack and connect to a high voltage hybrid inverter, to bank solar energy during the day and give it back in the evening or when the grid is down.

The BMU is the unit that watches the modules and talks to the inverter; the base carries the column, and the power and signal cables are included. This configuration works at 204.8V with a capacity of 50Ah, and the tower can grow to seven modules, that is 35.84kWh. When one tower is not enough, up to six towers run in parallel for roughly 215kWh and a system voltage reaching 864V: the same system covers a household and business-scale storage.

The cells are lithium iron phosphate, a chemistry chosen for its thermal stability, with a declared depth of discharge of 95% and more than 8000 cycles of service life. The 1C charge rate lets the system take in the whole midday peak instead of spreading it over the day, and system status is available in the app at any time. The inverter model must in any case be checked against the official Pylontech compatibility list; installation and commissioning must be carried out by qualified personnel.

Key strengths

10.24kWh completeTwo modules of 5.12kWh with BMU, base and cables under one part number.
Nothing else to addManagement unit, base and wiring are part of the delivery.
Expandable to 35.84kWhUp to seven modules per tower and six towers in parallel, about 215kWh.
1C charge and dischargeUp to 10608W charging and peak discharge.
Over 8000 cyclesLiFePO4 cells, 95% depth of discharge and app monitoring.

Technical specifications

Feature Value
Product code PYL-F-H3-BATT-BMU-10.2
Manufacturer Pylontech
Series Force H3
Type High voltage storage tower
Contents 2 battery modules of 5.12kWh + 1 BMU unit with base and cables
Chemistry LiFePO4 (lithium iron phosphate)
Nominal energy 10.24kWh (2 x 5.12kWh)
Nominal system voltage 204.8V (2 modules of 102.4V in series)
Nominal capacity 50Ah
Depth of discharge (DoD) 95%
Continuous discharge power 10200W
Maximum discharge power (5 minutes) 10200W
Peak power (15 seconds) 10608W
Maximum charge power (5 minutes) 10200W
Modules per tower 2 to 7 (10.24 to 35.84kWh)
Towers in parallel Up to 6 (about 215kWh)
Maximum system voltage 864V
Cycle life Over 8000
Monitoring App, 24/7
Weight 104.2kg
