Batteria Victron Lithium NG 25,6V 200Ah 5120Wh LiFePO4 con Shunt Integrato
Batteria Victron Lithium NG 25,6V 200Ah 5120Wh LiFePO4 con Shunt Integrato
Regular price
€1,746.90
Regular price
Sale price
€1,746.90
Unit price
per
Couldn't load pickup availability
- Prices exclude VAT: tax is calculated in the cart based on the delivery country.
- EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
- Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.
AVAILABILITY
Product available, quantity not tracked
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: 60 € per order, with no threshold
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Delivery in 10-20 days5-year warrantyVictron Energy

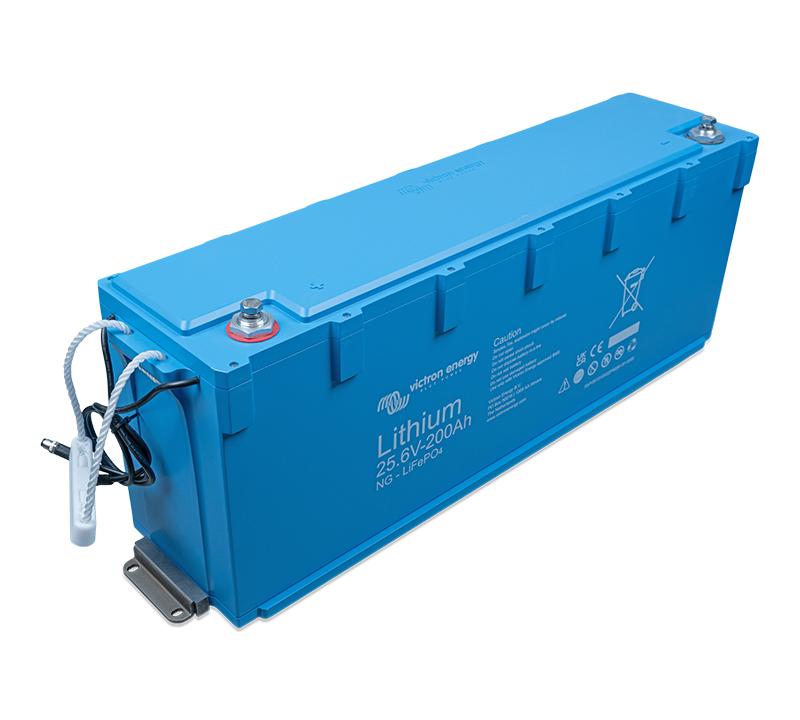

Victron Lithium NG Battery 25.6V 200Ah 5120Wh LiFePO4 with Integrated Shunt
Victron Lithium NG Battery 25.6V 200Ah 5120Wh LiFePO4 with Integrated Shunt is a Victron Energy storage battery for photovoltaic and off-grid systems. The declared figures are: Chemistry LiFePO4, Protection IP65, Nominal voltage (V) 25.6. Product code: BAT524120620.
The Victron Lithium NG (Next Generation) batteries take the Smart range further: cell voltage and temperature readout and banks up to 385 kWh. 12, 24 and 48 V modules with IP65 protection and bracket or strap mounting. They require an NG BMS.
The battery stores surplus energy and releases it when needed: capacity and voltage must be chosen to match the inverter and the loads.
Key features
Victron part number: BAT524120620Manufacturer's declared figure.
Chemistry: LiFePO4Chemistry of the cells used.
Protection: IP65Manufacturer's declared figure.
Nominal voltage (V): 25.6System voltage the product works at: it must match the rest of the system.
5-year warrantyWarranty as stated by the manufacturer.
Documentation availableThe manufacturer's datasheet is attached as a PDF in the Documentation section.
Technical specifications
| Feature | Value |
|---|---|
| Product code | BAT524120620 |
| Manufacturer | Victron Energy |
| Victron part number | BAT524120620 |
| Chemistry | LiFePO4 |
| Protections | IP65 |
| Nominal voltage (V) | 25.6 |
| Capacity (Ah) | 200 |
| Energy (Wh) | 5120 |
| Max charge/discharge current (A) | 200 (1C) |
| Weight (kg) | 37 |
| Dimensions (mm) | 235 × 648 × 162 |
| Cycle life | 2500 @80% DoD, 3000 @70% DoD, 5000 @50% DoD |
| Terminals | M8 threaded inserts and bolts |
| Warranty | 5 years |
