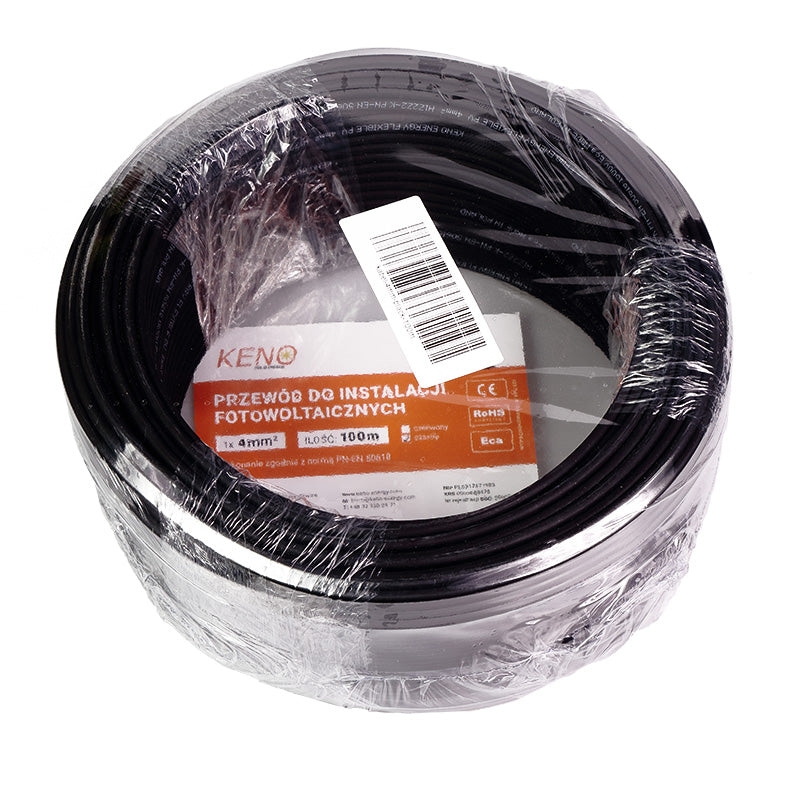

Solar Cable 4 mm² Black 100 m Coil
Single-core solar cable with a 4 mm² conductor cross-section in black, supplied on a 100-metre coil, for wiring the direct current side of a photovoltaic system: connections between the modules, string extension leads and the run from the array to the string combiner box or the inverter. Twice the length of the 50 m coil, it allows you to cover longer runs without joints and to wire several strings from a single pack.
The construction is the one specific to photovoltaic cables: a flexible tinned copper conductor, which resists oxidation over time, and double insulation in halogen-free cross-linked polyolefin, resistant to UV rays, ozone, moisture and the wide temperature swings of a roof, for outdoor exposure that lasts the entire life of the system. The black colour conventionally identifies the negative pole of the string. The ends are to be terminated on site with crimp photovoltaic connectors.
Key features
100-metre coilDouble length that makes it possible to cover long runs and several strings without intermediate joints.
Single-core solar cableConstruction specific to the direct current side, suitable for permanent outdoor installation.
Tinned copper conductorThe tinning protects the strands from oxidation and makes the crimped terminations more stable over time.
Double XLPO insulationHalogen-free cross-linked polyolefin, resistant to UV, ozone, moisture and the weather.
Black colourConventional identification of the negative pole, to be paired with the red version for the positive.
Wide temperature rangeIt keeps its characteristics from winter cold to the intense summer heat on the roof.
Technical specifications
| Feature | Value |
|---|---|
| Cable type | Solar cable for PV systems (H1Z2Z2-K) |
| Cross-section | 4 mm² |
| Colour | Black |
| Length | 100 m |
| Conductor | Flexible tinned copper (class 5) |
| Insulation | Double insulation in cross-linked polyolefin (XLPO), halogen-free |
| Rated voltage | 1,0/1,5 kV DC |
| Operating temperature | Da −40 °C a +90 °C |
| Standards | EN 50618 (H1Z2Z2-K) |
| Connectors | None (cable by the metre, to be terminated with PV connectors) |
| Packaging | Coil |
| Dimensions | 265 × 265 × 105 mm |
| Weight | 5.6 kg |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
