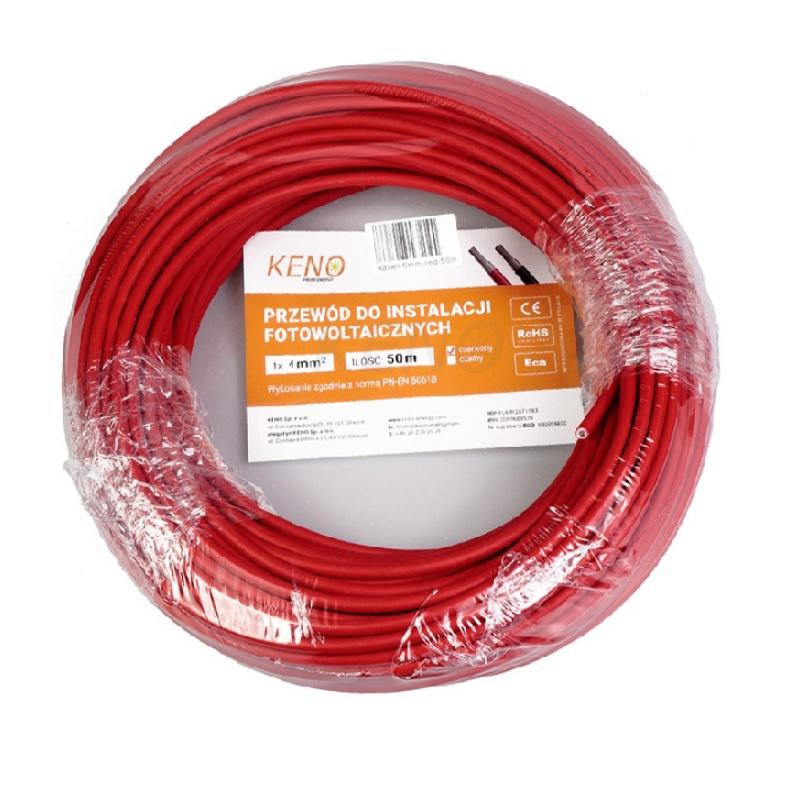

Solar Cable 4 mm² Red 50 m Coil
Single-core solar cable of 4 mm² in red, in a 50 metre coil, for wiring the direct current side of a photovoltaic system: connections between modules, string extensions and the run from the array to the combiner box or the inverter.
It is a cable designed to remain exposed outdoors for the whole life of the system: the flexible tinned copper conductor resists oxidation, the double insulation in halogen-free cross-linked polyolefin resists UV rays, ozone, moisture and the wide temperature swings of a roof. The red colour conventionally identifies the positive pole of the string, to be paired with the black version for the negative, so that polarity stays readable throughout the wiring. The ends must be terminated on site with crimp-on photovoltaic connectors.
Key features
Single-core solar cableSpecific construction for the direct current side, suitable for permanent outdoor installation.
Tinned copper conductorTinning protects the wires from oxidation and makes the connector crimps more stable over time.
Double XLPO insulationHalogen-free cross-linked polyolefin, resistant to UV, ozone, moisture and weather.
Red colourConventional identification of the positive pole, to be paired with the black version for the negative.
50 metre coilA length suited to residential systems, with a compact 2.8 kg package.
Wide temperature rangeKeeps its characteristics from low winter temperatures to the strong summer heat on the roof.
Technical specifications
| Feature | Value |
|---|---|
| Cable type | Solar cable for PV systems (H1Z2Z2-K) |
| Cross-section | 4 mm² |
| Colour | Red |
| Length | 50 m |
| Conductor | Flexible tinned copper (class 5) |
| Insulation | Double insulation in cross-linked polyolefin (XLPO), halogen-free |
| Rated voltage | 1,0/1,5 kV DC |
| Operating temperature | Da −40 °C a +90 °C |
| Standards | EN 50618 (H1Z2Z2-K) |
| Connectors | None (cable by the metre, to be terminated with PV connectors) |
| Packaging | Coil |
| Dimensions | 265 × 265 × 60 mm |
| Weight | 2.8 kg |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
