Drilling Template for Solar Carport Foundations

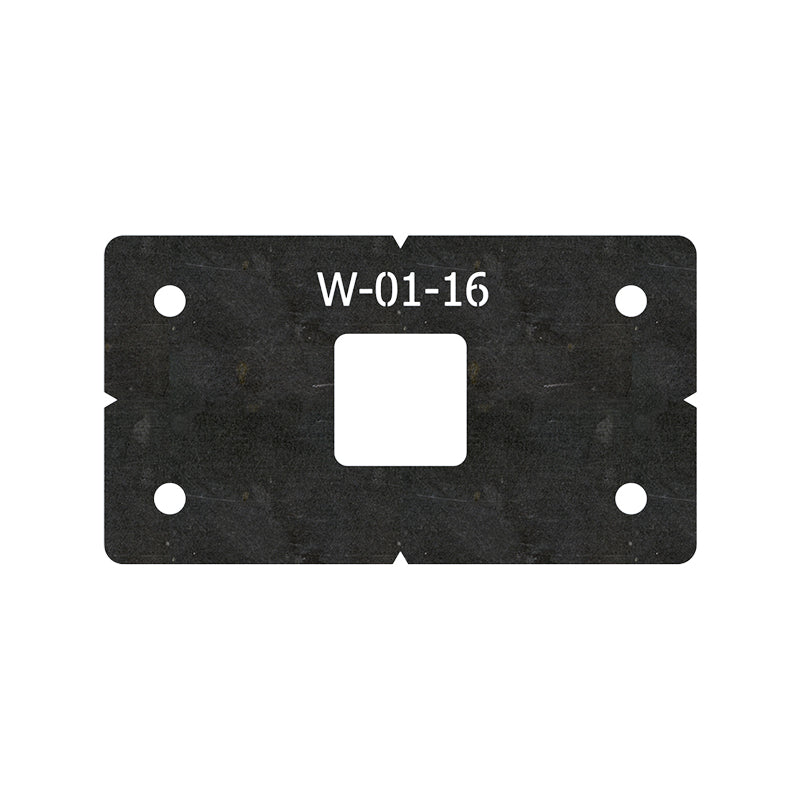

Auxiliary setting-out template for drilling the anchor rod holes in the foundations of the W-01 series solar carport. The carport rests on concrete footings in which the threaded rods that secure the posts are cast in or inserted: the relative position of these anchors must be accurate to the millimetre, because the base plates of the structure have to find that exact spacing on site. The template reproduces the drilling pattern precisely and makes it possible to mark it out or to hold the anchor rods in position during the pour.
It is a site tool, not a component of the finished structure: it is used during the preparation of the foundations, which according to the official manual are the installer's responsibility and must be made in concrete of minimum class C20/25 with four M20×1000 threaded rods of minimum strength class 8.8 for each support point. Using the template eliminates manual setting-out errors, the most frequent cause of delays during assembly: if the anchors do not match the base plates, the structure will not sit down and the pour has to be redone.
Key features
Exact setting-out of the anchorsReproduces the original W-01 series drilling pattern: the base plates find the anchor rods first time.
Avoids redoing the pourAn error in anchor positioning means demolishing and recasting the footing: the template prevents it.
Reusable site toolIt is used on every support point of the structure and remains available for subsequent projects.
For foundations with threaded rodsDesigned for the M20 threaded rod anchoring specified in the structure's assembly manual.
Speeds up installationReduces setting-out time and the repeated dimensional checks before the pour.
Light and easy to handle0.78 kg: it can be carried and positioned on site without any equipment.
Technical specifications
| Feature | Value |
|---|---|
| Product type | Auxiliary template (jig) for drilling the foundations |
| Compatible structure | Solar carport, W-01 series |
| Function | Marking out the position of the anchor rods in the foundation footing |
| Anchors provided by the structure | 4 threaded rods M20 × 1000 mm, minimum class 8.8 per support point |
| Required concrete class | Minimum C20/25 |
| Material | Steel |
| Dimensions | 250 × 450 × 1 mm |
| Weight | 0.78 kg |
The structure and its foundations must be installed by qualified personnel in accordance with the structural design and the applicable standards.
