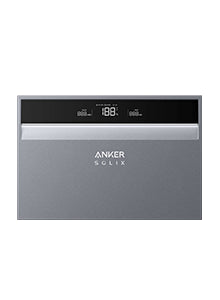

Anker SOLIX X1-H12K-T 12kW Three-Phase Hybrid Inverter HV 2 MPPT

Anker SOLIX X1-H12K-T 12kW Three-Phase Hybrid Inverter HV 2 MPPT

€1,543.04
€1,543.04
Sale Sold out Excl. VAT — calculated in the cart0.13 €/W
See the price with VAT

Price including VAT by delivery country

  • Italy22% €1,882.50
  • Germany19% €1,836.21
  • France20% €1,851.64
  • Austria20% €1,851.64
  • Belgium21% €1,867.07
  • Bulgaria20% €1,851.64
  • Croatia25% €1,928.80
  • Cyprus19% €1,836.21
  • Czech Republic21% €1,867.07
  • Denmark25% €1,928.80
  • Estonia24% €1,913.36
  • Finland25.5% €1,936.51
  • Greece24% €1,913.36
  • Hungary27% €1,959.66
  • Ireland23% €1,897.93
  • Latvia21% €1,867.07
  • Lithuania21% €1,867.07
  • Luxembourg17% €1,805.35
  • Malta18% €1,820.78
  • Netherlands21% €1,867.07
  • Poland23% €1,897.93
  • Portugal23% €1,897.93
  • Romania21% €1,867.07
  • Slovakia23% €1,897.93
  • Slovenia22% €1,882.50
  • Spain21% €1,867.07
  • Sweden25% €1,928.80

Shown prices exclude VAT. At checkout the rate of the delivery country applies. Businesses with a valid EU VAT number buy without VAT (reverse charge).

See the shipping cost

Pallet shipping by country

up to 500 kgup to 750 kg
  • Italy230 € 320 €
  • Austria230 € 320 €
  • Belgium230 € 320 €
  • Czech Republic230 € 320 €
  • Denmark230 € 320 €
  • France230 € 320 €
  • Germany230 € 320 €
  • Luxembourg230 € 320 €
  • Netherlands230 € 320 €
  • Poland230 € 320 €
  • Spain230 € 320 €
  • Bulgaria320 € 410 €
  • Croatia320 € 410 €
  • Estonia320 € 410 €
  • Finland320 € 410 €
  • Greece320 € 410 €
  • Hungary320 € 410 €
  • Ireland320 € 410 €
  • Lithuania320 € 410 €
  • Portugal320 € 410 €
  • Romania320 € 410 €
  • Slovakia320 € 410 €
  • Slovenia320 € 410 €
  • Sweden320 € 410 €
  • Latvia320 € 329.24 €
  • Maltaon request
  • Cypruson request

The price does not include shipping. Goods travel on a pallet with a dedicated carrier: half pallet up to 500 kg, full pallet up to 750 kg. Above 750 kg the cart adds the further pallets on its own. The exact amount is shown in the cart.

Shipping not included

43 units at this price

 Configure your system in two minutes Pick the inverter and get the batteries it accepts, modules per string, switchboards, price per kWp and a cart ready to check out. Open the configurator →
See our resellers Become a distributor or reseller Contact us
  • Prices exclude VAT: tax is calculated in the cart based on the delivery country.
  • EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
View full details
Delivery in 10-20 daysAnker SOLIX

Anker SOLIX X1-H12K-T 12kW Three-Phase Hybrid Inverter HV 2 MPPT

The X1-H12K-T is the 12kW three-phase power module of the Anker SOLIX X1 storage system: the part that converts, charges and discharges, pairing with battery modules from the same family to make a complete installation. The housing is 15cm deep and sits against the wall without eating into a plant room or a garage.

Internal heating allows operation down to -20°C and the anti-corrosion rating is C5, the toughest class: with IP66 protection the unit can live outdoors, including coastal or mountain sites. On the solar side it takes up to 24000W of modules across two MPP trackers, with a 140-950V window, and allows 100% oversizing against rated power, which pays off on dull days.

The box includes the smart meter with two CTs (DTSU 100A sensor), the base plate with levelling and cable routing, side covers for battery and power modules, the accessory kits and the Wi-Fi dongle. Two notes from the manufacturer: four batteries in a single stack require floor mounting, and pairing with a diesel generator is not supported in Europe. Installation and commissioning are for qualified personnel.

Key strengths

12kW three-phaseRated 12000W, up to 13200W apparent power.
15cm deep, IP66Minimal footprint on the wall, suitable for outdoor installation.
Works down to -20°CInternal heating and C5 anti-corrosion rating.
2 MPPT, 24000W of modulesUp to 100% PV oversizing, MPPT window 140-950V.
Meter and Wi-Fi includedSmart meter with two CTs, base plate and Wi-Fi dongle in the box.

Technical specifications

Feature Value
Product code ANK-SOLIX-X1-H12K-T
Manufacturer part number A5103TZ4
Manufacturer Anker SOLIX
Series SOLIX X1
Type Power module (hybrid inverter) for the X1 storage system
Grid connection Three-phase
Rated power 12kW (12000W)
Maximum AC power (5 minutes) 13200W
Maximum DC power from modules 24000W
PV oversizing Up to 100%
Number of MPPTs 2
DC inputs 2 with MC4 connectors
Maximum DC current per input 16A
MPPT voltage window 140-950V
Start-up voltage 160V
Maximum DC voltage 1000V
European efficiency 96.7%
Built-in DC isolator Yes
Battery voltage High voltage, Anker SOLIX X1 battery modules
Protection rating IP66, suitable for outdoor use
Minimum operating temperature -20°C with internal heating
Anti-corrosion class C5
Depth 15cm
Supplied with Smart meter with 2 CTs (DTSU 100A), base plate, side covers, accessory kits, Wi-Fi dongle
Diesel generator Pairing not supported in Europe
Four batteries in a single stack Floor mounting required
Warranty 10 years
Weight 30kg
PDFManufacturer datasheetPDF document
