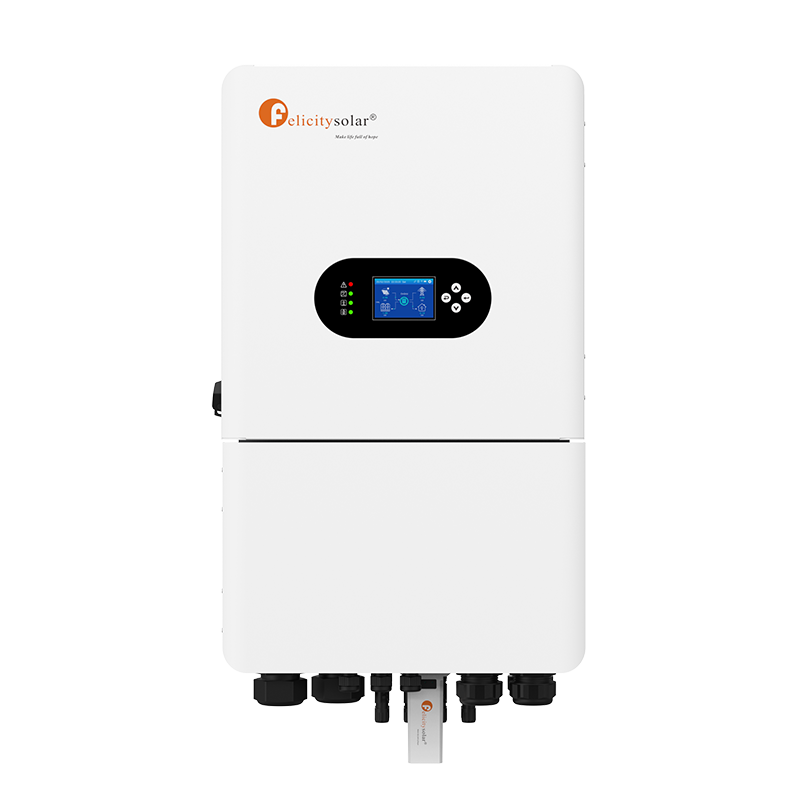

Felicity IVGM15KLP3G1 15 kW Three-Phase Low-Voltage Hybrid Inverter 48 V
Felicity IVGM15KLP3G1 15 kW Three-Phase Low-Voltage Hybrid Inverter 48 V
Regular price
€1,996.04
Regular price
Sale price
€1,996.04
Unit price
per
Tax included.
AVAILABILITY
Product available, quantity not tracked
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: €60 on orders up to €350, free shipping over €350.
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Couldn't load pickup availability
Prices shown include 22% Italian VAT. The 10% rate applies only to goods for photovoltaic and storage systems, with a declaration from the customer. From outside Italy: pick 22% VAT, or for 0% VAT place the order by bank transfer without paying and we will send a proforma invoice.
How VAT works ›
How VAT works ›
Delivery in 10-20 daysFelicity Solar
Felicity IVGM15KLP3G1 15 kW Three-Phase Low-Voltage Hybrid Inverter 48 V
The IVGM LP3G1 range is Felicity's answer for anyone who wants 48 V storage on a 15 kW three-phase system. Low-voltage batteries cost less, are available everywhere and grow one module at a time: no need to commit to a high-voltage tower on day one.
Two MPPT trackers up to 800 V DC carry 22.5 kW of panels, a 1.6 times oversize: in winter and on overcast days you collect what would otherwise be lost. Battery current reaches 350 A across charge and discharge, enough to fill and empty a large bank in a few hours.
IP65 enclosure for outdoor mounting, changeover to the backup circuit under ten milliseconds, up to ten units in parallel as the system grows. Ten-year warranty. We ship within Italy and across the European Union.
At a glance
Part number: IVGM15KLP3G1Genuine Felicity Solar product with the manufacturer's warranty.
Manufacturer: Felicity SolarGenuine Felicity Solar product with the manufacturer's warranty.
Model: IVGM15KLP3G1Genuine Felicity Solar product with the manufacturer's warranty.
Rated AC power: 15 kWGenuine Felicity Solar product with the manufacturer's warranty.
Maximum AC power: 16.5 kWGenuine Felicity Solar product with the manufacturer's warranty.
Technical data
| Specification | Value |
|---|---|
| Part number | IVGM15KLP3G1 |
| Manufacturer | Felicity Solar |
| Model | IVGM15KLP3G1 |
| Rated AC power | 15 kW |
| Maximum AC power | 16.5 kW |
| Grid connection | Three phase 400 V |
| Maximum PV power | 22.5 kW |
| MPPT trackers | 2 |
| Maximum DC voltage | 800 V |
| DC current per MPPT | 26 + 26 A, 2 strings per tracker |
| Battery voltage | 48 V |
| Battery current | up to 350 A |
| Maximum efficiency | per Felicity datasheet |
| Backup switching | under 10 ms |
| Parallel operation | up to 10 units |
| Protection rating | IP65 |
| Communication | Display, Wi-Fi, RS485, CAN |
| Cooling | Forced air |
| Dimensions | 750 × 450 × 268 mm |
| Weight | 48,7 kg |
| Warranty | 10 years |
