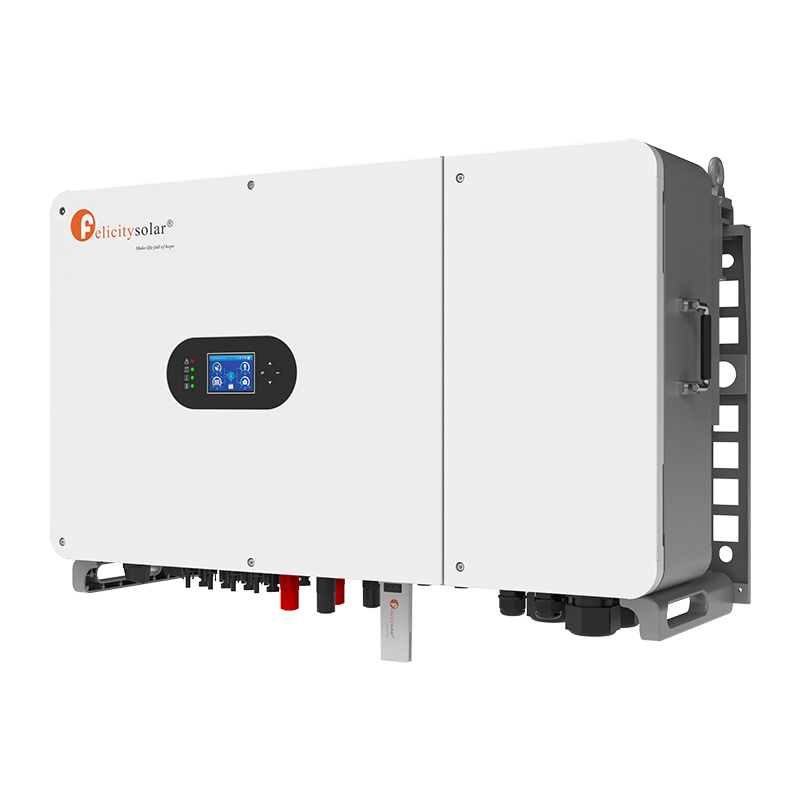

Felicity IVGM30KHP3G2 30 kW Three-Phase High-Voltage Hybrid Inverter
Felicity IVGM30KHP3G2 30 kW Three-Phase High-Voltage Hybrid Inverter
Regular price
€2,692.54
Regular price
Sale price
€2,692.54
Unit price
per
Tax included.
AVAILABILITY
Product available, quantity not tracked
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: €60 on orders up to €350, free shipping over €350.
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Couldn't load pickup availability
Prices shown include 22% Italian VAT. The 10% rate applies only to goods for photovoltaic and storage systems, with a declaration from the customer. From outside Italy: pick 22% VAT, or for 0% VAT place the order by bank transfer without paying and we will send a proforma invoice.
How VAT works ›
How VAT works ›
Delivery in 10-20 daysFelicity Solar
Felicity IVGM30KHP3G2 30 kW Three-Phase High-Voltage Hybrid Inverter
Above twenty kilowatts, high voltage stops being a matter of taste: with a battery tower at several hundred volts the currents stay low, the cable gets thinner and efficiency goes up. The 30 kW of the HP3G2 range is built for the industrial unit, the farm, the apartment block with EV chargers.
3 independent MPPT trackers up to 1000 V DC carry 48 kW of panels at 36 A per input: different roof planes without compromise, and 600 W modules with no current headaches. The battery charges and discharges up to 100 A, split over two 50 A channels.
It runs on-grid, off-grid and as a UPS, with changeover under ten milliseconds and time-of-day charge and discharge scheduling, which is what actually pays on tariff bands. IP65, 87.1 kg, ten-year warranty. We ship within Italy and across the European Union.
At a glance
Part number: IVGM30KHP3G2Genuine Felicity Solar product with the manufacturer's warranty.
Manufacturer: Felicity SolarGenuine Felicity Solar product with the manufacturer's warranty.
Model: IVGM30KHP3G2Genuine Felicity Solar product with the manufacturer's warranty.
Rated AC power: 30 kWGenuine Felicity Solar product with the manufacturer's warranty.
Maximum AC power: 33 kWGenuine Felicity Solar product with the manufacturer's warranty.
Technical data
| Specification | Value |
|---|---|
| Part number | IVGM30KHP3G2 |
| Manufacturer | Felicity Solar |
| Model | IVGM30KHP3G2 |
| Rated AC power | 30 kW |
| Maximum AC power | 33 kW |
| Grid connection | Three phase 400 V |
| Maximum PV power | 48 kW |
| MPPT trackers | 3 |
| Maximum DC voltage | 1000 V |
| DC current per MPPT | 36 A per input, 2 strings per tracker |
| Battery voltage | High voltage |
| Battery current | up to 100 A (50 A + 50 A) |
| Maximum efficiency | per Felicity datasheet |
| Backup switching | under 10 ms |
| Parallel operation | supported by the manufacturer |
| Protection rating | IP65 |
| Communication | Display, Wi-Fi, RS485, CAN |
| Cooling | Forced air |
| Dimensions | 940 × 582 × 340 mm |
| Weight | 87,1 kg |
| Warranty | 10 years |
