• Deye 12.12 kWp Solar Kit – 10 kW Three-Phase Hybrid, Commercial/Industrial
1 1

Deye

Deye 12.12kWp Solar Kit – 10kW Three-Phase Hybrid, Commercial/Industrial

Deye 12.12kWp Solar Kit – 10kW Three-Phase Hybrid, Commercial/Industrial

€3,799.23
€3,799.23
Sale Sold out Excl. VAT — calculated in the cart0.31 €/Wp
See the price with VAT

Price including VAT by delivery country

  • Italy22% €4,635.06
  • Germany19% €4,521.08
  • France20% €4,559.07
  • Austria20% €4,559.07
  • Belgium21% €4,597.06
  • Bulgaria20% €4,559.07
  • Croatia25% €4,749.03
  • Cyprus19% €4,521.08
  • Czech Republic21% €4,597.06
  • Denmark25% €4,749.03
  • Estonia24% €4,711.04
  • Finland25.5% €4,768.03
  • Greece24% €4,711.04
  • Hungary27% €4,825.02
  • Ireland23% €4,673.05
  • Latvia21% €4,597.06
  • Lithuania21% €4,597.06
  • Luxembourg17% €4,445.09
  • Malta18% €4,483.09
  • Netherlands21% €4,597.06
  • Poland23% €4,673.05
  • Portugal23% €4,673.05
  • Romania21% €4,597.06
  • Slovakia23% €4,673.05
  • Slovenia22% €4,635.06
  • Spain21% €4,597.06
  • Sweden25% €4,749.03

Shown prices exclude VAT. At checkout the rate of the delivery country applies. Businesses with a valid EU VAT number buy without VAT (reverse charge).

Shipping to Italy €120
Configure your system in two minutes Pick the inverter and get the batteries it accepts, modules per string, switchboards, price per kWp and a cart ready to check out. Open the configurator →
See our resellers Become a distributor or reseller Contact us
  • Prices exclude VAT: tax is calculated in the cart based on the delivery country.
  • EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.

SOLAR PANEL SHIPPING

  • Italy: 120 €
  • European Union: 400 €

Dedicated rate: modules, pallets and kits with panels ship on a pallet with a specialised carrier. Free shipping to Italy does not apply here. The exact amount is confirmed at checkout; for non-EU countries please ask for a quote.

Read the full shipping conditions

View full details
Shipping costs
Italy: €120.European Union: €350.

Complete kit: every component of the system in a single order, already matched to one another. To see the products in detail and get a tailored quote, visit SolarGear.eu.

Deye 12.12kWp Solar Kit – 10kW Three-Phase Hybrid Inverter, Commercial/Industrial

Scalable solution for commercial and industrial sites, built to maximise self-consumption

🚚 Fast delivery in 10–20 days.

Commercial & Industrial Solar Kit

Three-phase hybrid PV system for grid-connected operation with energy management, designed around the Deye SUN-10K-SG01HP3-EU-AM2 inverter, for commercial and industrial applications.

☀️ 12.12kWp
Solar		⚡ PV Only
No Storage		⚡ 10kW
Inverter		🔌 Three-Phase
Hybrid

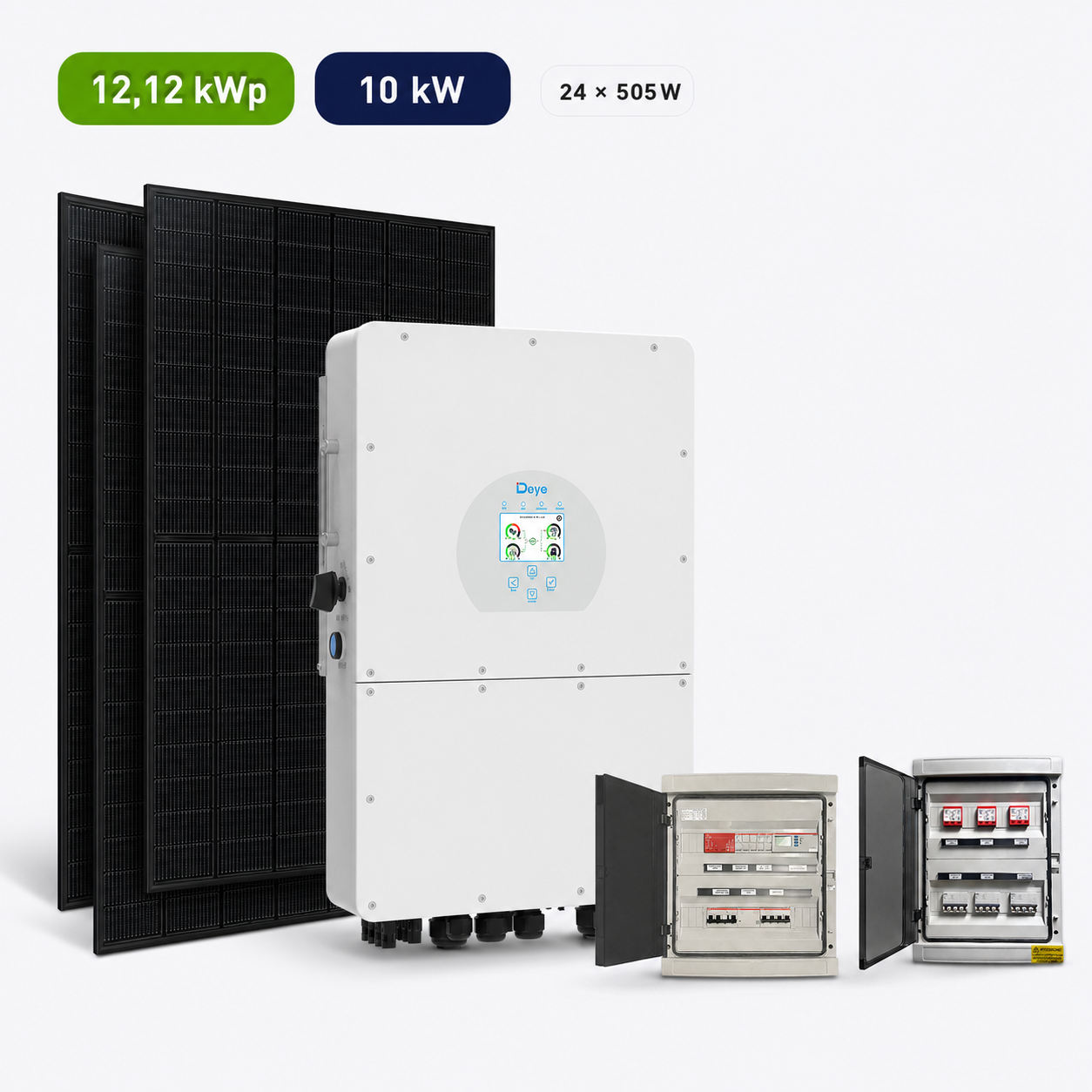

Kit Contents

24× Trina Solar Vertex S+ 505W N-Type TOPCon bifacial Full Black modules

for a total output of 12.12kWp.

1× Deye SUN-10K-SG01HP3-EU-AM2 hybrid inverter

three-phase, 2 MPPTs.

1× Three-phase AC field box 20A with MCB, 300mA Type A RCD and Type 2 SPD

Protection and isolation of the AC grid connection.

1× DC field box 1000V for 2 strings/2 MPPT with Type 2 SPD and Stäubli MC4 connectors

Surge protection of the PV strings on the DC side; DC isolation is built into the inverter.

PV String Design

Calculated configuration: 2 strings of 12 modules, one per MPPT. Operating voltage Vmp 402V, Voc at 25°C 483.6V, conservative Voc at −25°C 541.6V — within the inverter's 1000V limit and within the 150–850V MPPT window. Module used: Trina Solar Vertex S+ 505W N-Type TOPCon bifacial Full Black (Vmp 33.5V, Voc 40.3V, Imp 15.09A, Voc coefficient -0.24%/°C). DC/AC oversizing ratio: 1.21×. Preliminary configuration: to be re-checked against the datasheet of the revision actually purchased and the site conditions.

Storage, Grid and Operation

  • ✓Grid-connected operation.
  • ✓LiFePO₄ batteries not included in this configuration.

A matched, well-engineered system

The kit uses selected components and a PV configuration sized to the inverter’s electrical limits, for a robust, consistent commercial or industrial system ready for installation by qualified personnel. The kit includes only the specified PV panels, inverter, and AC and DC protection panels. Mounting structures, cables, connectors and installation are not included and must be sized by the installer to suit the site. Installation and grid connection must be carried out by licensed personnel.
