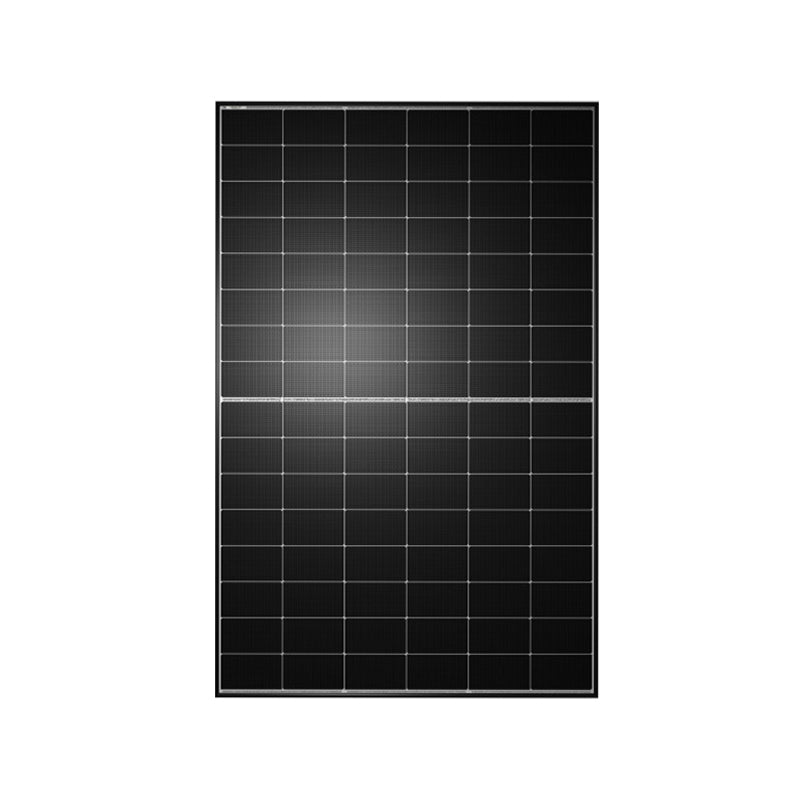

Solar module TW Solar TNC 2.0 Dual Glass 465 W N-Type TNC dual glass Black Frame
Solar module TW Solar TNC 2.0 Dual Glass 465 W N-Type TNC dual glass Black Frame
Regular price
€100.16
Regular price
Sale price
€100.16
Unit price
per
Tax included.
Couldn't load pickup availability
VAT note
Companies and private customers outside Italy: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — read more.
Non-Italian companies entitled to 0% VAT: write to info@litio.store.
Companies and private customers outside Italy: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — read more.
Non-Italian companies entitled to 0% VAT: write to info@litio.store.
Delivery in 10-20 days15-year warrantyTW Solar
Shipping costs
Italy: €120. European Union: €350.
Italy: €120. European Union: €350.
No minimum order quantity. Flat shipping: €120.
Solar module TW Solar TNC 2.0 Dual Glass 465 W N-Type TNC dual glass Black Frame
The TW Solar TWMNH-48HW465W is a 465 W monofacial dual glass module built by Tongwei with the new generation of TNC 2.0 N-type TOPCon cells. In a compact 1762 × 1134 mm format it reaches 23.3 % efficiency, a top-tier figure for this size, thanks to 96 half-cells and a laminate of two 2.0 mm heat-strengthened glass sheets, the front one with an anti-reflective coating.
Choosing dual glass with an opaque rear combines the durability of glass-glass construction — no polymer backsheet to degrade, high resistance to moisture, ammonia and PID — with the uniform look of a monofacial module and a black frame. Certified mechanical loads are notably high: 6000 Pa on the front and 4000 Pa on the rear. This is a product designed for residential and small commercial systems where maximum power per square metre and a long service life both matter. N-type cells suffer no LID, show a power temperature coefficient of -0.28 %/°C and deliver good yield in low light conditions, with a 15-year product warranty and a 30-year linear warranty on power.
Key features
23.3 % efficiency465 W from a format of just 1762 × 1134 mm: one of the highest power densities available in this size.
Dual glass 2.0 + 2.0 mmA heat-strengthened glass-glass structure with no backsheet: superior resistance to moisture, ammonia, salt mist and potential induced degradation.
6000 / 4000 Pa loadsFront load up to 6000 Pa and rear load up to 4000 Pa, above the market standard for snowy and windy regions.
TNC 2.0 N-type cellsThe second TOPCon generation from Tongwei raises conversion efficiency and keeps annual degradation very low.
Compact format and black frameManageable dimensions and a black anodised profile for straightforward installation and a uniform look on residential roofs.
15 + 30 year warrantyFifteen years of product warranty on materials and workmanship and thirty years of linear warranty on power.
Technical specifications
| Feature | Value |
|---|---|
| Product code | TWMNH-48HW465W |
| Manufacturer | TW Solar |
| Series | TNC 2.0 – TWMNH-48HW |
| Rated power (STC) | 465 Wp |
| Module efficiency | 23.3 % |
| Cell technology | N-Type TNC 2.0 (TOPCon) |
| Cells | 96 semicelle (48 celle in serie) N-type TNC 2.0 (TOPCon) |
| Voltage at Pmax (Vmp) | 30.56 V |
| Current at Pmax (Imp) | 15.22 A |
| Open circuit voltage (Voc) | 36.4 V |
| Short circuit current (Isc) | 15.92 A |
| Temperature coefficient of Pmax | -0.28 %/°C |
| Bifacial | No |
| Glass | Doppio vetro: 2.0 mm anteriore semi-temperato con rivestimento antiriflesso + 2.0 mm posteriore semi-temperato |
| Frame | Nera |
| Dimensions (L × W × D) | 1762 × 1134 × 30 mm |
| Weight | 23.7 kg |
| Maximum system voltage | 1500 V DC |
| Maximum series fuse | 30 A |
| Protection rating | IP68 (cassetta di giunzione con 3 diodi) |
| Snow load | 6000 Pa |
| Wind load | 4000 Pa |
| Product warranty | 15 years |
| Performance warranty | 30 years |
Documentation
PDFDatasheet TNC 2.0 Dual GlassOfficial manufacturer documentSeries or parallel wiring must respect the voltage and current limits of the inverter MPPTs and the electrical design of the system.
