Solar Extension Lead 6 mm² Red with MC4 Connectors 3.8 m
Solar Extension Lead 6 mm² Red with MC4 Connectors 3.8 m
Regular price
€31.30
Regular price
Sale price
€31.30
Unit price
per
Tax included.
Couldn't load pickup availability
VAT note
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Delivery in 10-20 daysCableDC sideLitio Store
Solar Extension Lead 6 mm² Red with MC4 Connectors 3.8 m

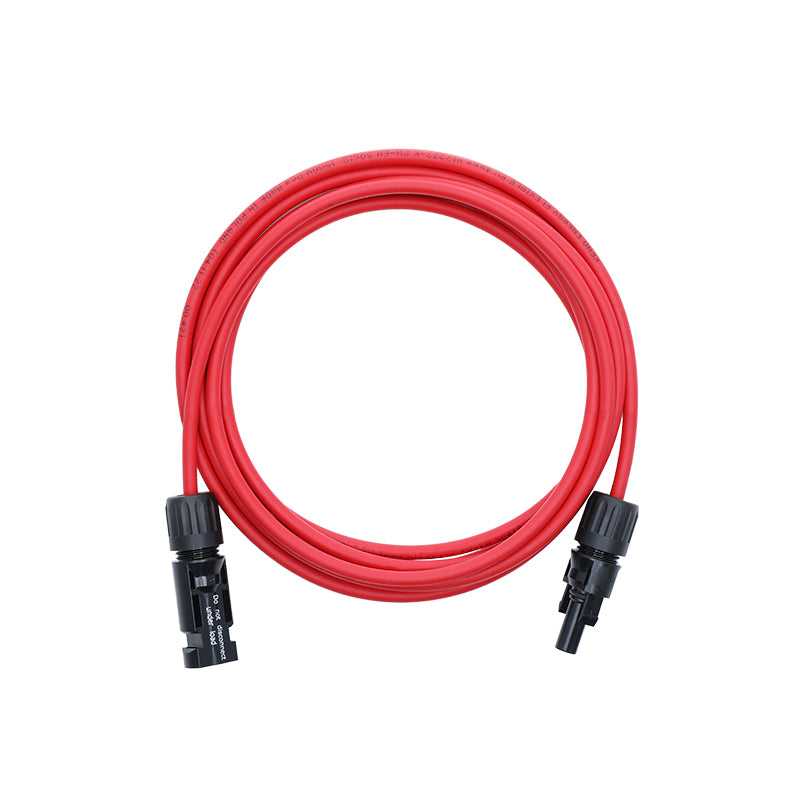

Pre-assembled photovoltaic extension lead 3.8 metres long, made with 6 mm² solar cable in red and complete with MC4 type connectors at both ends. It is used to extend the direct current side of the system: from the string end to the field panel, from the panel to the inverter, or between distant array sections.
The 6 mm² cross-section reduces the voltage drop over longer runs and on higher current strings, typical of the latest generation modules, and is the usual choice when the route from the roof to the technical room exceeds a few tens of metres. The red colour conventionally identifies the positive pole. The assembly is already crimped in the factory, so it is installed without crimping tools; the cable has double insulation in halogen-free cross-linked polyolefin, resistant to UV rays, ozone and weather for outdoor installation.
Key features
6 mm² cross-sectionReduces the voltage drop on long runs and on high current strings compared with the 4 mm² cross-section.
Length 3.8 metresA useful length for the connection between the string end and the field panel or for reaching the inverter.
Ready to useConnectors already crimped and tested in the factory: no crimping on site.
MC4 type connectorsSnap-in coupling with mechanical locking, compatible with the standard connectors of photovoltaic modules.
Outdoor cableDouble insulation in halogen-free cross-linked polyolefin, resistant to UV, ozone and weather.
Red colourConventional identification of the positive pole of the string.
Technical specifications
| Feature | Value |
|---|---|
| Cable type | Solar cable for PV systems (H1Z2Z2-K) |
| Cross-section | 6 mm² |
| Colour | Red |
| Length | 3.8 m |
| Connectors | MC4 type PV connectors (male + female) |
| Conductor | Flexible tinned copper (class 5) |
| Insulation | Double insulation in cross-linked polyolefin (XLPO), halogen-free |
| Rated voltage | 1,0/1,5 kV DC |
| Operating temperature | Da −40 °C a +90 °C |
| Standards | EN 50618 (H1Z2Z2-K) |
| Dimensions | 250 × 265 × 24 mm |
| Weight | 0.3 kg |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
