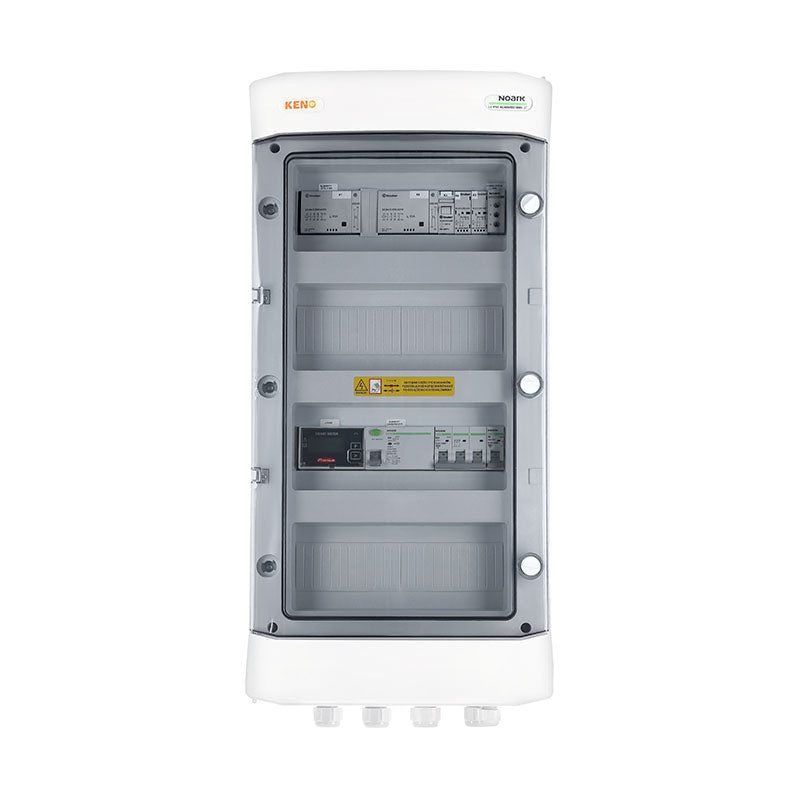

ATS Switchgear with Smart Meter for Fronius Symo GEN24 Three-Phase Hybrid Inverters
ATS switchgear for automatic grid/emergency transfer, dedicated to Fronius Symo GEN24 and Symo Hybrid three-phase hybrid inverters with storage, complete with a smart meter for measuring the energy exchanged with the grid. When the grid voltage fails, the board disconnects the system from the public grid and activates the emergency supply of the priority loads from the battery and the photovoltaic generator.
Transfer takes about 60 seconds, the typical time of the full backup function of GEN24 inverters, which requires the inverter to restart in island mode: it is therefore not the absolute continuity of a UPS. The board is wall-mounted downstream of the inverter, keeps the grid and backup circuits separate and is supplied pre-wired in a halogen-free plastic enclosure with IP65 protection rating.
Key features
Smart meter includedThe board integrates the smart meter required to measure grid exchange and to manage self-consumption.
For Fronius Symo GEN24Dedicated to Symo GEN24 and Symo Hybrid three-phase hybrid inverters with backup function.
Three-phase backupEmergency power is available on all three phases (3P).
Transfer in about 60 sChangeover time to island mode typical of the Fronius GEN24 full backup function.
Separate grid and backup circuitsThe emergency line stays independent of the grid line, as required for island mode operation.
IP65 enclosureHalogen-free plastic housing, suitable for installation in damp environments too.
Technical specifications
| Feature | Value |
|---|---|
| Switchboard type | ATS switchgear for automatic grid/emergency changeover with smart meter |
| System side | AC |
| Compatible inverters | Fronius Symo GEN24 / Symo Hybrid (three-phase hybrid inverters) |
| Emergency power supply | Three-phase (3P) |
| Switching time | Approx. 60 s |
| Energy metering | Smart meter integrated in the switchboard |
| Rated insulation voltage | 400 V AC |
| Protection rating | IP65 |
| Housing material | Halogen-free plastic material |
| Installation | Wall-mounted |
| Dimensions | 319 × 653 × 144 mm |
| Weight | 7.6 kg |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
