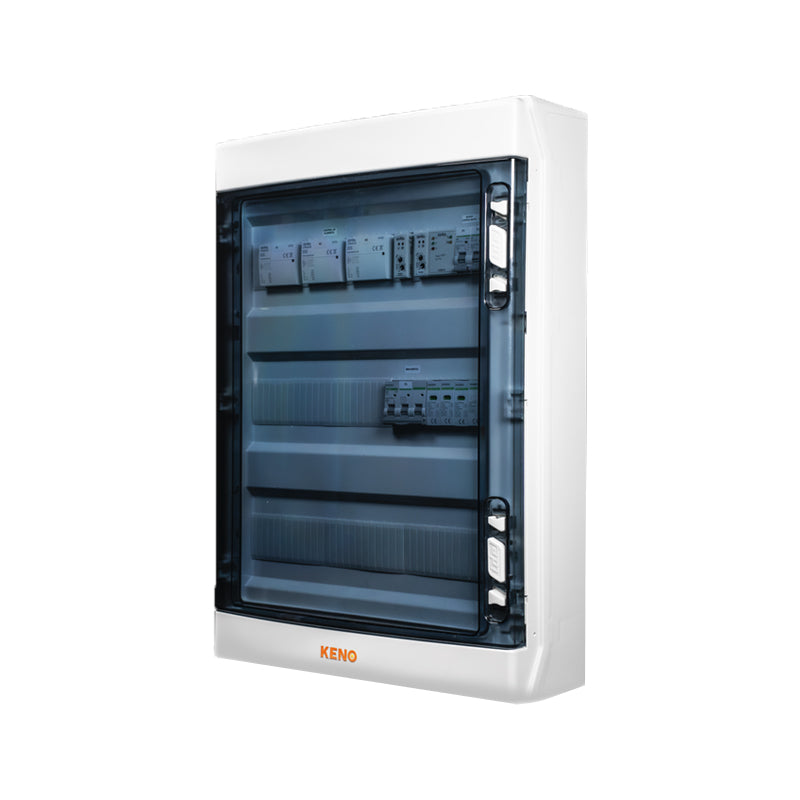

Universal ATS Switchgear for 20 kW Hybrid Inverters
Universal ATS switchgear for the automatic grid/backup transfer of installations with a 20 kW hybrid inverter and storage. Arranged for hybrid inverters of different brands, when the grid voltage fails it isolates the installation from the public grid and automatically supplies the priority loads with energy from the battery and the photovoltaic array, restoring the connection to the grid when this becomes available again.
It is installed on the wall, downstream of the inverter, between the main distribution board and the line of the loads to be kept supplied: it is the typical solution for commercial and small-industrial users that require continuity of service. It integrates the surge protection on the alternating current side and keeps the grid and backup circuits separate. Halogen-free plastic enclosure with IP65 protection rating.
Key features
For 20 kW invertersSized for hybrid installations with storage of the 20 kW class.
Universal compatibilityCan be combined with hybrid inverters from different manufacturers, not tied to a single brand.
Automatic transferTransfers the priority loads to the backup supply in the event of a blackout, without manual intervention.
AC surge protectionAlternating current surge protective device integrated in the panel.
Separate grid and backup circuitsThe backup circuit remains independent of the grid circuit during off-grid operation.
IP65 enclosureHalogen-free plastic housing, also suitable for installation in damp environments.
Technical specifications
| Feature | Value |
|---|---|
| Switchboard type | Universal ATS switchgear for automatic grid/emergency changeover |
| System side | AC |
| Inverter power | 20 kW |
| Compatible inverters | Hybrid inverters of various brands (Deye, Solis, Selfa, SolaX, Sungrow, Afore, Sunways, Solplanet, Sofar, EcoFlow) |
| Surge protective device (SPD) | Integrated AC SPD |
| Rated insulation voltage | 400 V AC |
| Protection rating | IP65 |
| Housing material | Halogen-free plastic material |
| Installation | Wall-mounted |
| Dimensions | 467 × 586 × 148 mm |
| Weight | 8.2 kg |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
