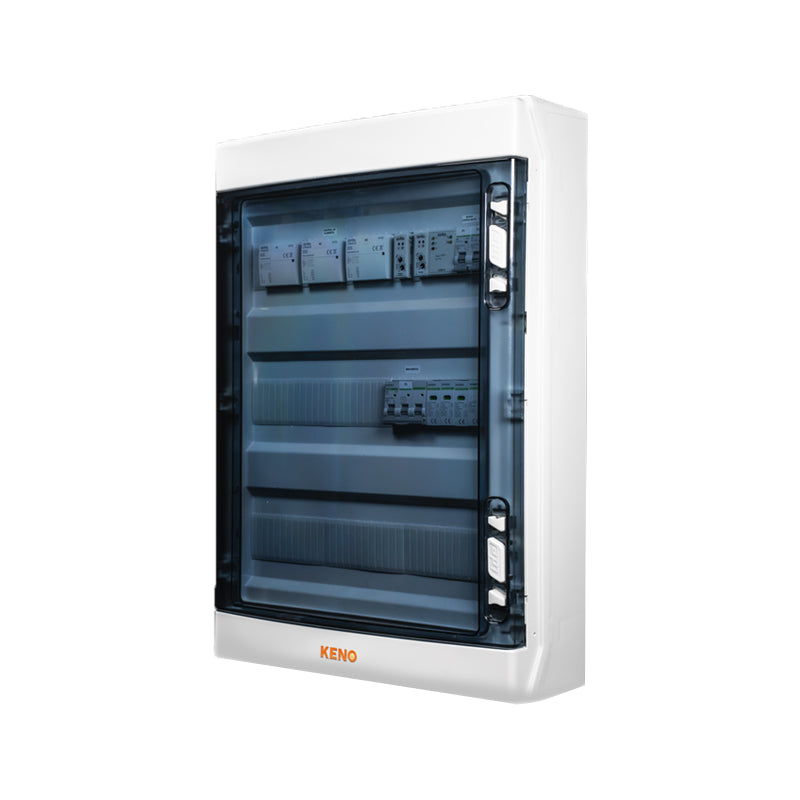

Universal ATS Switchgear for 25 kW Hybrid Inverters
Universal ATS switchgear for the automatic grid/backup transfer of installations with a 25 kW hybrid inverter and storage. Arranged for hybrid inverters of different brands, in the event of a blackout it separates the installation from the public grid and automatically supplies the priority loads with energy from the battery and the photovoltaic generator, then returns them to the grid when the voltage comes back.
It is installed on the wall, downstream of the inverter, between the main distribution board and the line of the loads to be kept in service: this is the typical configuration for warehouses, offices and production activities that require continuity of supply. It integrates the surge protection on the alternating current side and keeps the grid and backup circuits separate. Halogen-free plastic enclosure with IP65 protection rating.
Key features
For 25 kW invertersSized for hybrid installations with storage of the 25 kW class.
Universal compatibilityCan be combined with hybrid inverters from different manufacturers, not bound to a single brand.
Automatic transferAutomatic switchover of the priority loads to the backup supply and return to the grid once it is restored.
AC surge protectionAlternating current surge protective device integrated in the panel.
Separate grid and backup circuitsThe backup line remains independent of the grid line during off-grid operation.
IP65 enclosureHalogen-free plastic housing, also suitable for damp environments.
Technical specifications
| Feature | Value |
|---|---|
| Switchboard type | Universal ATS switchgear for automatic grid/emergency changeover |
| System side | CA |
| Inverter power | 25 kW |
| Compatible inverters | Hybrid inverters of various brands (Deye, Solis, Selfa, SolaX, Sungrow, Afore, Sunways, Solplanet, Sofar, EcoFlow) |
| Surge protective device (SPD) | Integrated AC SPD |
| Rated insulation voltage | 400 V CA |
| Protection rating | IP65 |
| Housing material | Halogen-free plastic material |
| Installation | Wall-mounted |
| Dimensions | 467 × 586 × 148 mm |
| Weight | 8.2 kg |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
