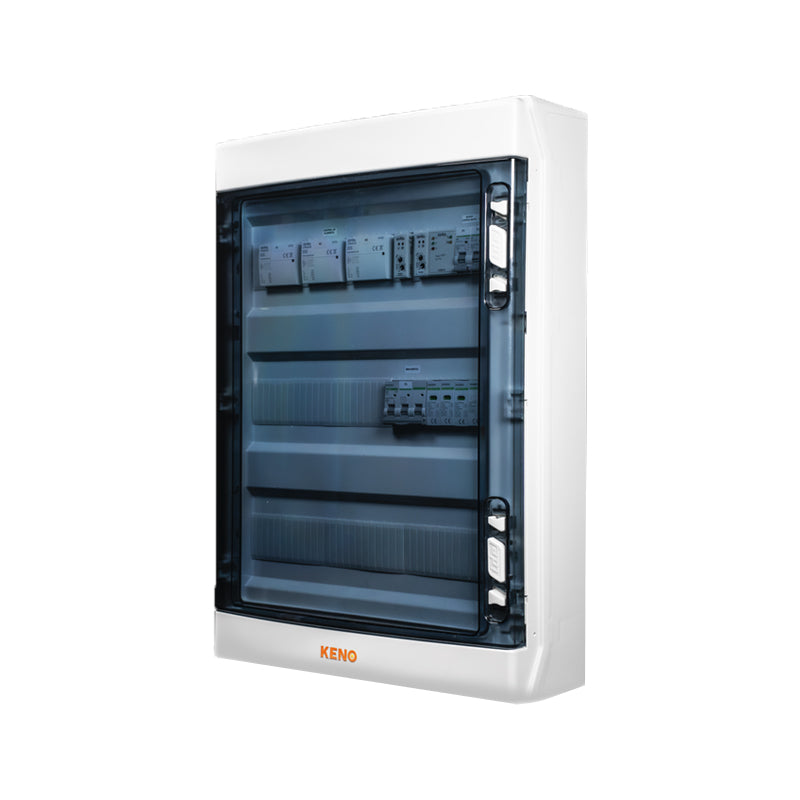

Universal ATS Switchgear for 30 kW Hybrid Inverters
Universal ATS switchgear for automatic grid/emergency transfer in systems with a 30 kW hybrid inverter and storage, the largest size in the range. Designed for hybrid inverters from different brands, when the public grid fails it isolates the system and automatically transfers the priority loads to the emergency power supply produced by the battery and the photovoltaic array.
It is wall-mounted, downstream of the inverter, between the main distribution board and the line feeding the loads that must stay powered, in commercial and industrial installations requiring continuity of service. It includes surge protection on the alternating current side and keeps the grid and backup circuits separate. Halogen-free plastic enclosure with IP65 protection rating.
Key features
For 30 kW invertersThe largest size in the universal ATS family, for hybrid systems up to 30 kW.
Universal compatibilityCan be used with hybrid inverters from different manufacturers, not tied to a single brand.
Automatic transferIt switches the priority loads over to the emergency supply with no manual intervention.
AC surge protectionAlternating current surge protective device built into the board.
Separate grid and backup circuitsThe emergency circuit stays independent of the grid circuit during island mode operation.
IP65 enclosureHalogen-free plastic housing, suitable for installation in damp environments too.
Technical specifications
| Feature | Value |
|---|---|
| Switchboard type | Universal ATS switchgear for automatic grid/emergency changeover |
| System side | CA |
| Inverter power | 30 kW |
| Compatible inverters | Hybrid inverters of various brands (Deye, Solis, Selfa, SolaX, Sungrow, Afore, Sunways, Solplanet, Sofar, EcoFlow) |
| Surge protective device (SPD) | Integrated AC SPD |
| Rated insulation voltage | 400 V CA |
| Protection rating | IP65 |
| Housing material | Halogen-free plastic material |
| Installation | Wall-mounted |
| Dimensions | 467 × 586 × 148 mm |
| Weight | 8.2 kg |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
