WattKit ELE-WK-DC-4S-T2 Pre-wired DC Combiner Box 4 Strings 1000 V SPD Type 2

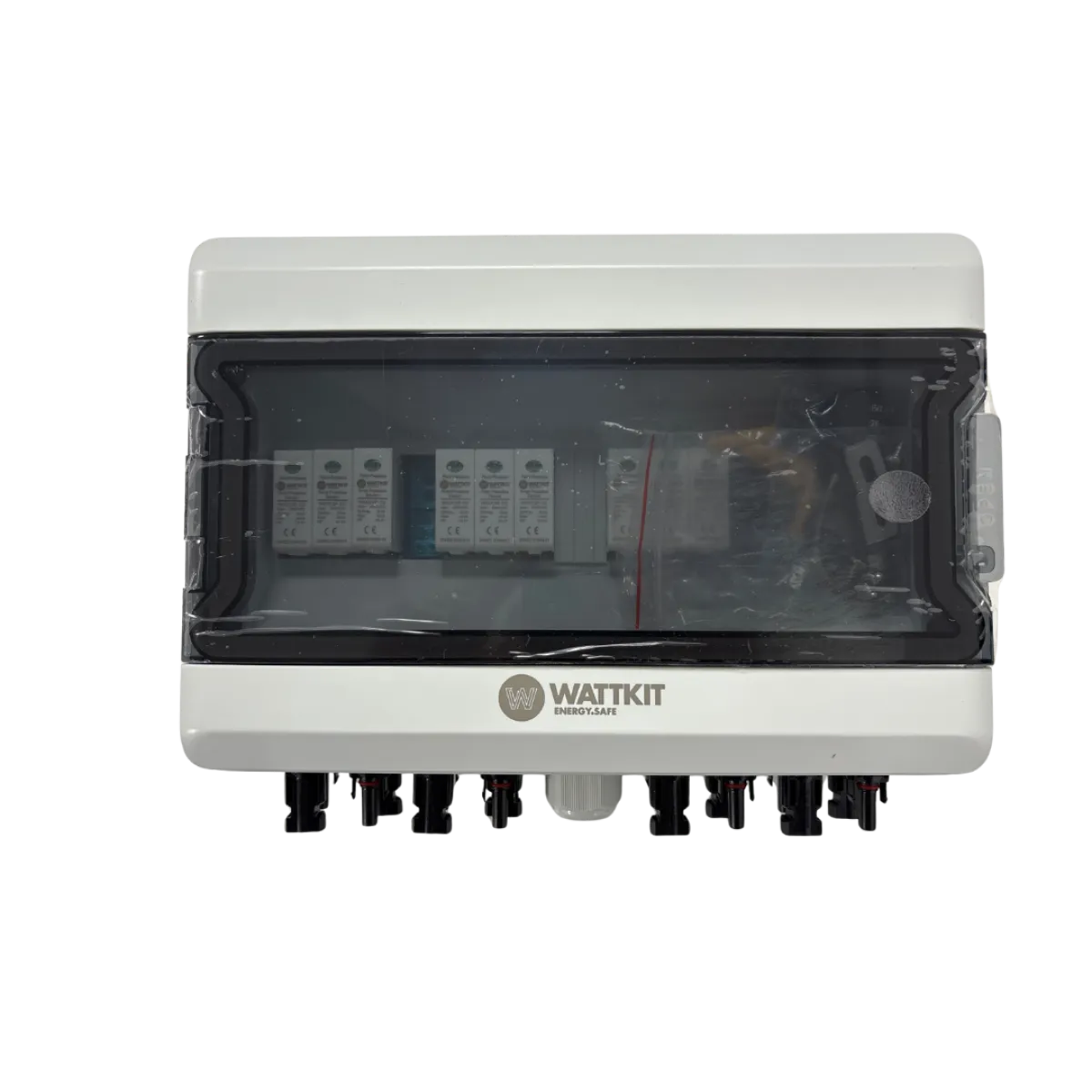

The WattKit ELE-WK-DC-4S-T2 pre-wired DC combiner box is the 4 string version of the WattKit array box: it arrives already assembled and wired, with the Type 2 surge protective devices (3 poles, 20–40 kA, 1000 V DC) and the fuse holders on the positive and negative conductor of each string, as shown in the manufacturer's diagram.
It sits between the PV array and the inverter and is designed for larger residential plants or small commercial installations, typically where the strings come from several roof sections. String cables are terminated with MC4 connectors, while a cable gland and a dedicated terminal are provided for earthing. The enclosure has an IP65 protection rating and an operating temperature from −25 to +60 °C, so it is also suitable for outdoor mounting.
Key features
Four strings protectedA 4 strings IN / 4 strings OUT configuration for plants on several roof sections or of larger size.
Already assembled and wiredReady to install: it cuts site time and assembly errors on the individual components.
Built-in Type 2 surge arresterThree-pole 1000 V DC SPD with In of 20 kA and Imax of 40 kA protecting the inverter and the string cables.
Fuse holders on each polarityOvercurrent protection on the positive and the negative of each string, following the manufacturer's diagram.
IP65 enclosure for outdoor useResistant to dust, water and UV rays, with an operating temperature from −25 to +60 °C.
Same performance as the 2-string versionVoltage, current and protection level are identical: only the number of strings handled changes.
Technical specifications
| Feature | Value |
|---|---|
| Product code | ELE-WK-DC-4S-T2 |
| Product type | Pre-wired DC field board (combiner box) |
| Number of input strings | 4 |
| Number of output strings | 4 |
| Rated voltage | 1000 V CC |
| Operating current | 30 A |
| Surge arrester | 3-pole DC SPD, Type 2, 20–40 kA, 1000 V DC |
| Overcurrent protection | Fuse holders on the positive and negative pole of each string |
| Connections | MC4 connectors on input and output, earth terminal |
| Protection degree | IP65 |
| Operating temperature | −25…+60 °C |
| Pressure equalization valve | Included |
| Dimensions | 332 × 230 × 120 mm |
| Weight | 0.6 kg |
| Warranty | 1 year (excluding consumables such as fuses) |
Documentation
PDFDatasheetOfficial manufacturer documentInstallation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
