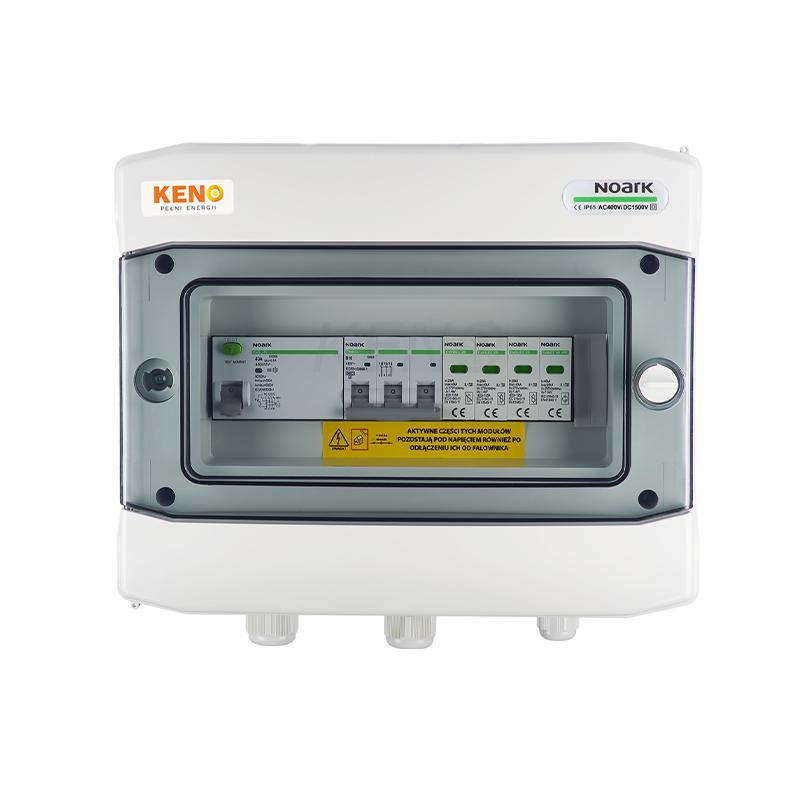

AC Combiner Box Three-Phase 10A with Type 2 SPD and 100mA Type A RCD
The alternating current combiner box is installed on the AC side of the photovoltaic system, between the three-phase inverter output and the building's main board. It is the version sized for small inverters, with a rated current of 10A per phase, and it brings together in a single watertight wall-mounted box the protections required for parallel connection to the grid.
Inside it there are a Type 2 surge protective device (SPD) that diverts to earth the surge pulses induced by indirect lightning strikes and by grid switching operations, a 10A three-phase miniature circuit breaker with curve B for protection against overloads and short circuits, and a 100mA Type A residual current device, able to detect the pulsating unidirectional fault currents produced by the inverter electronics as well.
Key features
Type 2 surge arresterThe Noark Type 2 surge arrester protects the inverter and the AC installation against the overvoltages induced by indirect lightning strikes and grid switching operations.
10A curve B MCBCurve B, with fast tripping, suits lines with low inductive loads and ensures overload and short-circuit protection for the inverter.
100mA Type A RCDDetects alternating and pulsating unidirectional leakage currents, as required for circuits supplied by static converters.
Suitable for small invertersThe 10A per phase setting is designed for three-phase photovoltaic systems of modest power.
IP65 - IK08 watertight enclosureBox made of halogen-free recyclable plastic, resistant to UV rays and impacts, suitable for outdoor mounting.
Wired and testedThe box is supplied already assembled and tested, reducing installation times and wiring errors.
Technical specifications
| Feature | Value |
|---|---|
| Switchboard type | AC combiner box (inverter-grid parallel panel) |
| System side | Alternating current (AC) |
| Number of poles / phases | Three-phase, 400V AC |
| Nominal current | 10A |
| Surge protective device (SPD) | Noark Type 2 SPD for AC networks |
| Miniature circuit breaker (MCB) | Noark three-phase, 10A, curve B |
| Residual current device (RCD) | 100mA, Type A |
| Rated voltage | 400V AC |
| Rated insulation withstand voltage | 1500V DC |
| Protection rating | IP65 |
| Impact resistance | IK08 |
| Enclosure | Recyclable halogen-free plastic material, UV resistant |
| Operating temperature | from -25 °C to +60 °C |
| Dimensions | 319 × 259 × 144 mm |
| Weight | 2.6 kg |
| Standards | IEC 61439-1, IEC 61439-2; LVD 2014/35/EU, EMC 2014/30/EU and RoHS 2011/65/EU directives |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
