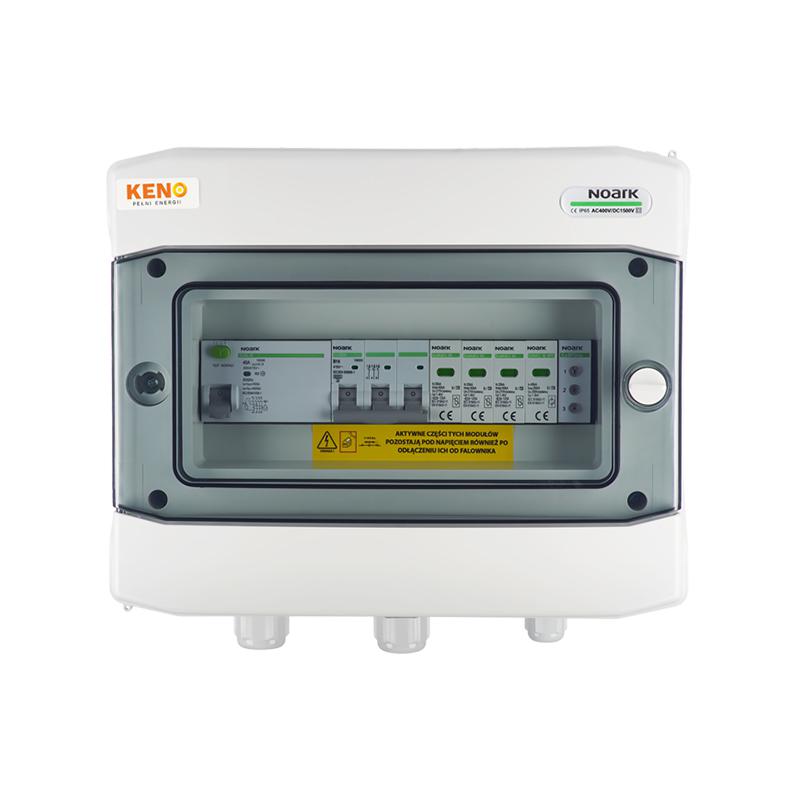

AC Combiner Box Three-Phase 16 A with Type 2 SPD and 100 mA Type A RCD
The alternating current combiner box is the protection board to be installed on the AC side of the photovoltaic system, between the three-phase inverter output and the building's main board. This version is rated for a nominal current of 16 A per phase and brings together in a single watertight wall-mounted box all the protections required for parallel connection to the distribution grid.
The box contains a Type 2 surge protective device (SPD) that limits the overvoltages induced by indirect lightning strikes and by grid switching operations, protecting the inverter electronics, a 16 A three-phase miniature circuit breaker for overload and short-circuit protection and for isolation, and a 100 mA Type A residual current device, suitable for detecting the pulsating unidirectional fault currents typical of static converters as well.
Key features
Surge protectionThe Type 2 surge arrester diverts to earth the pulses induced by indirect lightning strikes and by grid switching operations, protecting the inverter.
100 mA Type A RCDType A trips on alternating and pulsating unidirectional leakage currents, as required for circuits supplied by inverters.
16 A three-phase MCBProtects the AC line against overloads and short circuits and allows the system to be isolated manually and safely.
Intermediate ratingThe 16 A per phase setting covers medium-power three-phase photovoltaic systems, between the 10 A and 20 A versions of the same range.
IP65 - IK08 watertight enclosureThe box, made of halogen-free recyclable plastic, is dust-tight and protected against water jets, resistant to UV rays and impacts.
Ready to installSupplied already wired and tested: it reduces installation times and the risk of errors compared with on-site assembly.
Technical specifications
| Feature | Value |
|---|---|
| Switchboard type | AC combiner box (inverter-grid parallel panel) |
| System side | Alternating current (AC) |
| Number of poles / phases | Three-phase, 400 V AC |
| Nominal current | 16 A |
| Surge protective device (SPD) | Type 2 SPD for AC networks |
| Miniature circuit breaker (MCB) | Three-phase, 16 A |
| Residual current device (RCD) | 100 mA, Type A |
| Protection rating | IP65 |
| Impact resistance | IK08 |
| Enclosure | Recyclable halogen-free plastic material, UV resistant |
| Operating temperature | from -25 °C to +60 °C |
| Dimensions | 319 × 259 × 144 mm |
| Weight | 2.7 kg |
| Standards | IEC 61439-1, IEC 61439-2; LVD 2014/35/EU, EMC 2014/30/EU and RoHS 2011/65/EU directives |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
