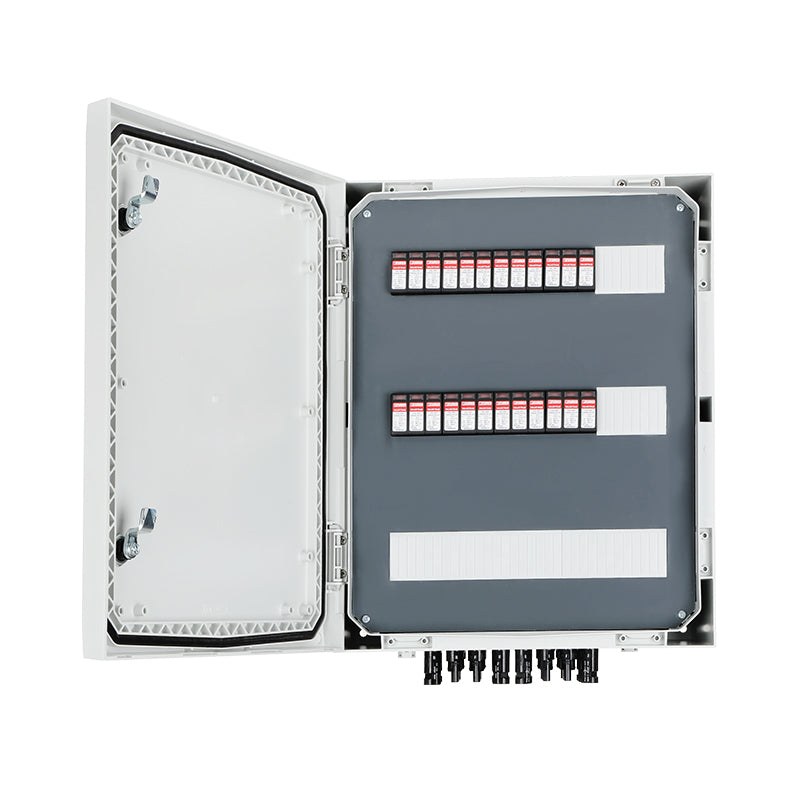

DC Combiner Box 1000 V IP66 with Type 2 SPD for 8 PV Strings and 8 MPPT
DC Combiner Box 1000 V IP66 with Type 2 SPD for 8 PV Strings and 8 MPPT
Regular price
€926.96
Regular price
Sale price
€926.96
Unit price
per
Tax included.
Couldn't load pickup availability
VAT note
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Delivery in 10-20 daysCombiner boxDC sideLitio Store
DC Combiner Box 1000 V IP66 with Type 2 SPD for 8 PV Strings and 8 MPPT
Large-format combiner box for the direct current side, prepared for 8 photovoltaic strings on 8 MPPT inputs and for systems with voltages up to 1000 V DC. It is sized for commercial and industrial installations, where several strings must be collected and protected at a single point before reaching the inverter or the group of inverters.
The enclosure has an IP66 protection rating, so it is totally dust-tight and resistant to powerful water jets: it can also be installed outdoors, on the roof or on ground-mounted structures, with no need for additional shelter. Inside there is a Type 2 surge protective device providing protection against induced transient surges, which safeguards the modules and the inverter's DC inputs by diverting the voltage peaks to the earthing system.
Key features
8 strings and 8 MPPTEight independent string circuits, for commercial-scale systems with multi-MPPT inverters.
IP66 protection ratingEnclosure totally protected against dust and resistant to water jets: suitable for outdoor installation.
Type 2 arresterIt limits the induced transient surges on the 1000 V direct current side.
Large-format enclosure405 × 500 × 200 mm: ample room for the tidy wiring of eight strings.
Sturdy construction10.2 kg of total weight, a sign of an industrial-grade enclosure and set of components.
A single collection pointIt brings together the connection and protection of the whole photovoltaic array, simplifying maintenance and diagnostics.
Technical specifications
| Feature | Value |
|---|---|
| Switchboard type | Photovoltaic combiner box |
| System side | Direct current (DC) |
| Number of PV strings | 8 |
| MPPTs managed | 8 |
| Maximum PV voltage | 1000 V CC |
| Surge protective device (SPD) | Type 2 SPD, 1000 V DC |
| Protection rating | IP66 |
| Dimensions | 405 × 500 × 200 mm |
| Weight | 10.2 kg |
Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
