Secsun QAC-10KW three-phase AC board 10 kW
Secsun QAC-10KW three-phase AC board 10 kW
Regular price
€475.40
Regular price
Sale price
€475.40
Unit price
per
Tax included.
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: €60 on orders up to €350, free shipping over €350.
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Couldn't load pickup availability
Prices include 22% Italian VAT; the reduced 10% rate covers only goods for photovoltaic and storage systems, with a customer declaration. From abroad: choose 22% VAT, or for 0% VAT place the order by bank transfer without paying and we send you a proforma invoice.
How VAT works ›
How VAT works ›
Delivery in 10-20 daysThree-phase10 kWBuilt-in SPDSecsun
Secsun QAC-10KW three-phase AC board 10 kW

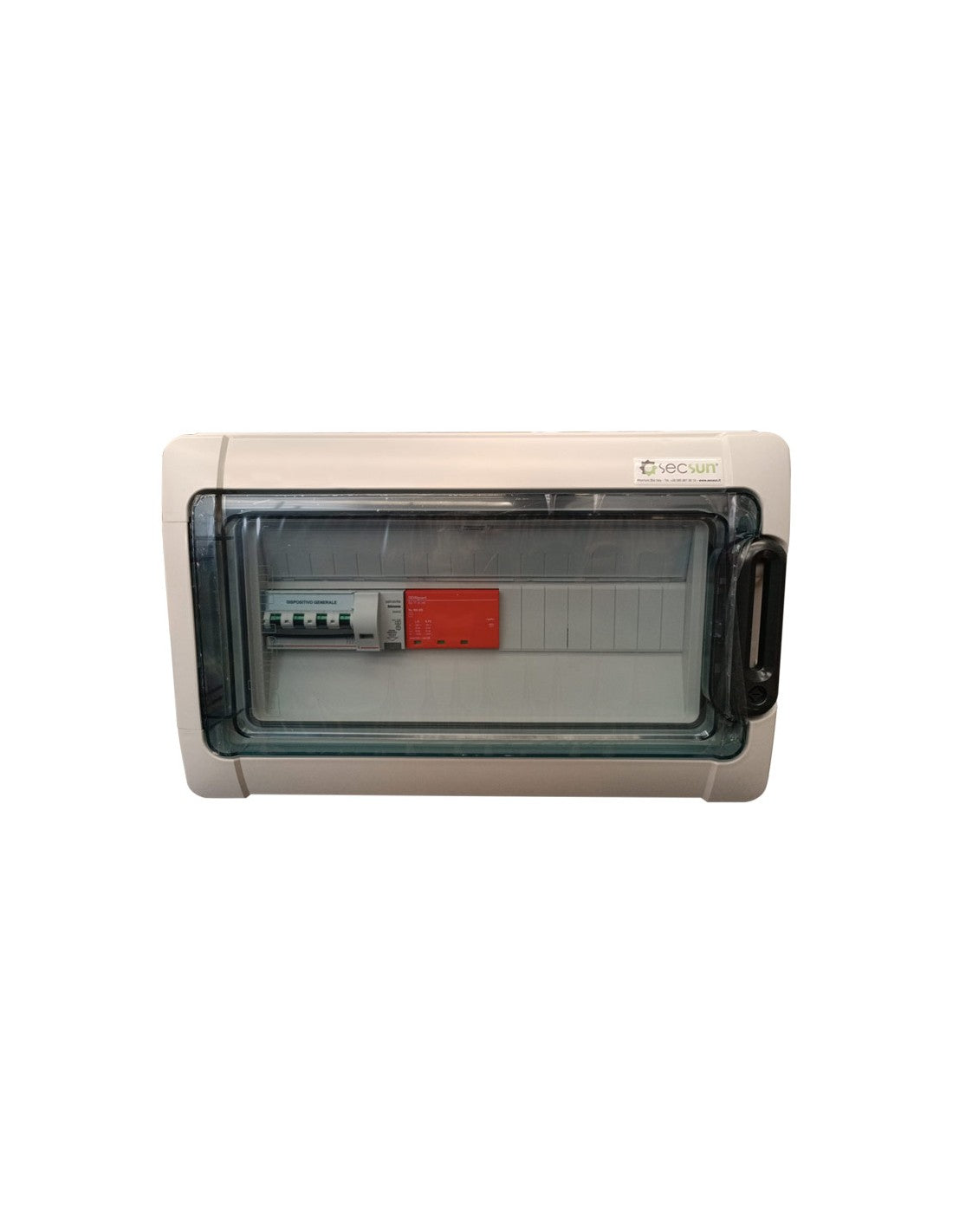

The QAC-10KW is the AC protection board to install between the three-phase inverter and the delivery point. It arrives wired and tested: inverter on one side, line on the other.
Inside you find the circuit breaker sized on the rated power, the type A RCD for personal protection and the surge arrester on the grid side. It is the quickest way to complete the AC side of the system to good practice without assembling loose components on site.
Key strengths
Line protectionCircuit breaker sized on the inverter output.
Residual current protectionType A RCD for personal safety on the AC side.
AC surge arresterGrid-side SPD to protect inverter and installation from overvoltages.
Pre-wired assemblyInverter on one side, grid on the other: no on-site assembly.
Accessible terminalsTidy wiring and numbered terminals for a quick commissioning.
Standards compliantBuilt to CEI EN 61439 and CEI 64-8 for end-user installations.
Technical specifications
| Feature | Value |
|---|---|
| Product code | QAC-10KW |
| Manufacturer | Secsun |
| Type | AC protection board |
| Power supply | three-phase 400 V |
| Rated power | 10 kW |
| Integrated surge protection | Yes, AC surge arrester |
| Actuation | Circuit breaker and type A RCD |
| Mounting | Wall mounted |
| Certifications | CEI EN 61439, CEI 64-8 |
