Icierre MM116-L all-in-one AC/DC PV board three-phase 1 string 1000 V 32 A CEI 0-21
Icierre MM116-L all-in-one AC/DC PV board three-phase 1 string 1000 V 32 A CEI 0-21
Regular price
€487.36
Regular price
Sale price
€487.36
Unit price
per
Tax included.
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: €60 on orders up to €350, free shipping over €350.
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Couldn't load pickup availability
Prices include 22% Italian VAT; the reduced 10% rate covers only goods for photovoltaic and storage systems, with a customer declaration. From abroad: choose 22% VAT, or for 0% VAT place the order by bank transfer without paying and we send you a proforma invoice.
How VAT works ›
How VAT works ›
Delivery in 10-20 daysDC + ACPre-wired and testedMade in ItalyIcierre
Icierre MM116-L all-in-one AC/DC PV board three-phase 1 string 1000 V 32 A CEI 0-21

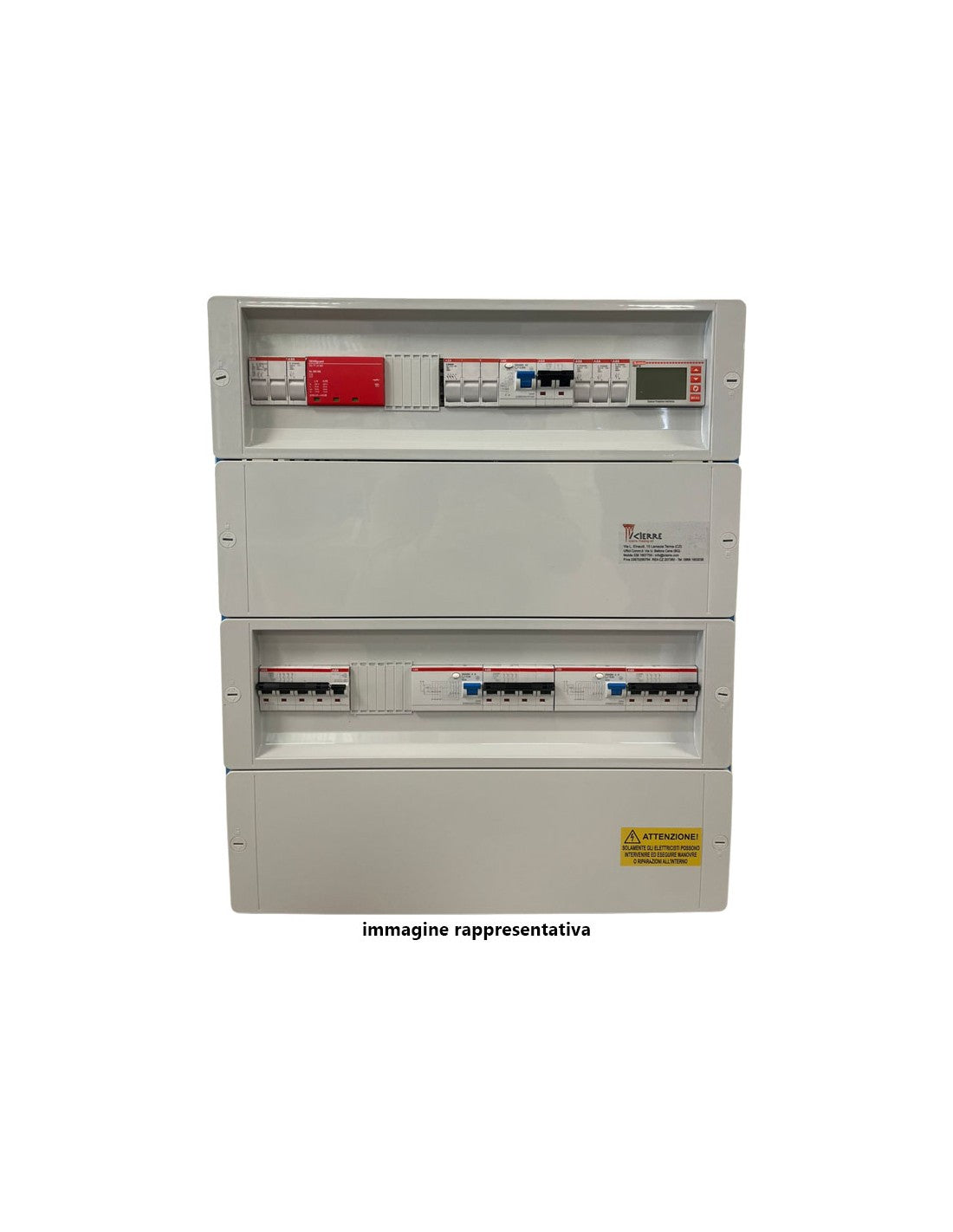

The MM116-L board by Icierre protects the PV system on both the DC and AC sides, in a single enclosure.
Icierre builds pre-wired, factory-tested PV assemblies in Italy: overcurrent protection, surge arresters, disconnecting devices and numbered terminals are fitted in the factory inside an enclosure suitable for outdoor mounting. On site only the cables need connecting, which saves time and avoids assembly mistakes.
Key strengths
String protectionDedicated fuses or fuse holders on every pole of the incoming strings.
Surge arresterType 2 SPD to divert atmospheric overvoltages to earth.
On-load disconnectionDC switch-disconnector to open the array safely.
Line protectionCircuit breaker sized on the inverter output.
Residual current protectionType A RCD for personal safety on the AC side.
Standards compliantBuilt to CEI EN 61439 for low-voltage assemblies.
Technical specifications
| Feature | Value |
|---|---|
| Product code | MM116-L |
| Manufacturer | Icierre |
| Type | Electrical assembly for PV systems |
| System side | DC and AC |
| Configuration | three-phase 1 string 1000 V 32 A CEI 0-21 |
| Power supply | three-phase 400 V |
| Certifications | CEI 0-21, CEI EN 61439 |
| Mounting | Wall mounted, outdoor |
