Quasar Glass Router: Dual-band Wi-Fi and 4G, Quasar Anodised Case

Quasar Glass is the touch control panel in real glass for motorhomes, caravans, trucks and boats: switching, Victron data, tanks, air, tyre pressure and cameras on a single screen. No hub, no gateway and no internet required.

The router in every Quasar Glass package, on its own: dual-band Wi-Fi for STAR controllers and panels, a 4G card fitted for your region with SIM holder, five Gigabit ports, 9 to 36 V DC, Safiery firmware, Quasar anodised aluminium case.

The Quasar Glass Router hosts the kit's own private network: 2.4 GHz for the STAR controllers, 5 GHz for Quasar Glass panels and cameras, plus a 4G cellular card fitted at our bench for your region (Australia and New Zealand, Europe or the United States) and a SIM holder. Five Gigabit Ethernet ports take a Victron Cerbo GX or a wired camera. It runs Safiery-built firmware with signed updates, provides DHCP and discovery for every device in the kit, passes the Android connectivity check with or without a SIM, and restores its Safiery configuration after a factory reset rather than reverting to a stock router. Remote support and the AI Configuration Service dial out from the router; nothing listens inbound. If the router ever stops, the STAR raises its own network with the same credentials and the screens carry on.

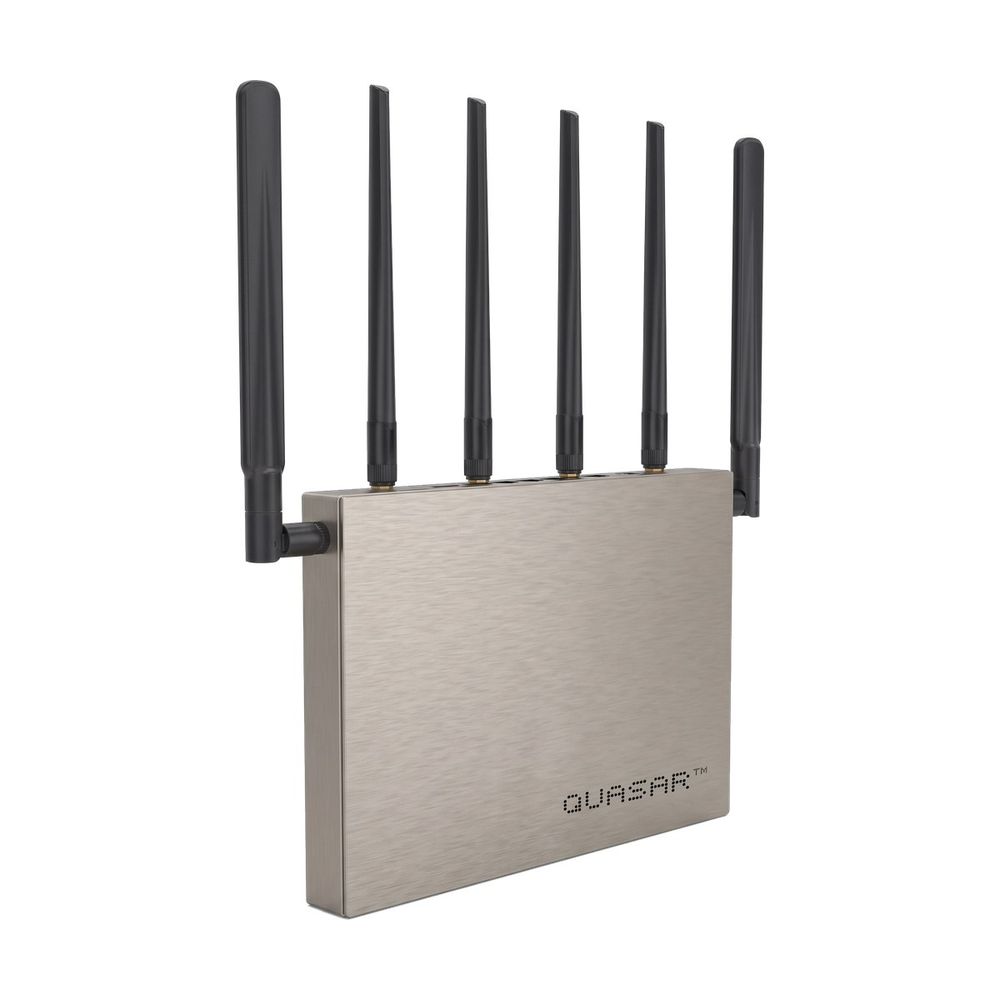

It is supplied in a Quasar anodised aluminium case matching Quasar ONE, with six SMA antenna connections, a recessed reset button and a 9 to 36 V DC input with transient and reverse-polarity protection. Ordered against a kit code it arrives provisioned to that kit. Router supplied subject to regulatory approval in each market.

• Dual-band
• 4G
• 5 x Gigabit

Key features

• Real glass, not plastic
• Switching, Victron, tanks, air, tyres and cameras on one screen
• No hub, no gateway, no internet connection
• 4, 10 and 13.3 inch sizes

Technical specifications
