Redarc BCDCWK-003 wiring kit for 25A BCDC DC-DC battery charger, rear of vehicle install (up to 8.5 m)
Redarc BCDCWK-003 wiring kit for 25A BCDC DC-DC battery charger, rear of vehicle install (up to 8.5 m)
Regular price
€323.49
Regular price
Sale price
€323.49
Unit price
per
Tax included.
Couldn't load pickup availability
Delivery in 10-20 daysWarranty 2 yearsREDARC
Shipping costsItaly: free over €150; €13 for smaller orders.
European Union: free from €350; €60 for smaller orders.
European Union: free from €350; €60 for smaller orders.

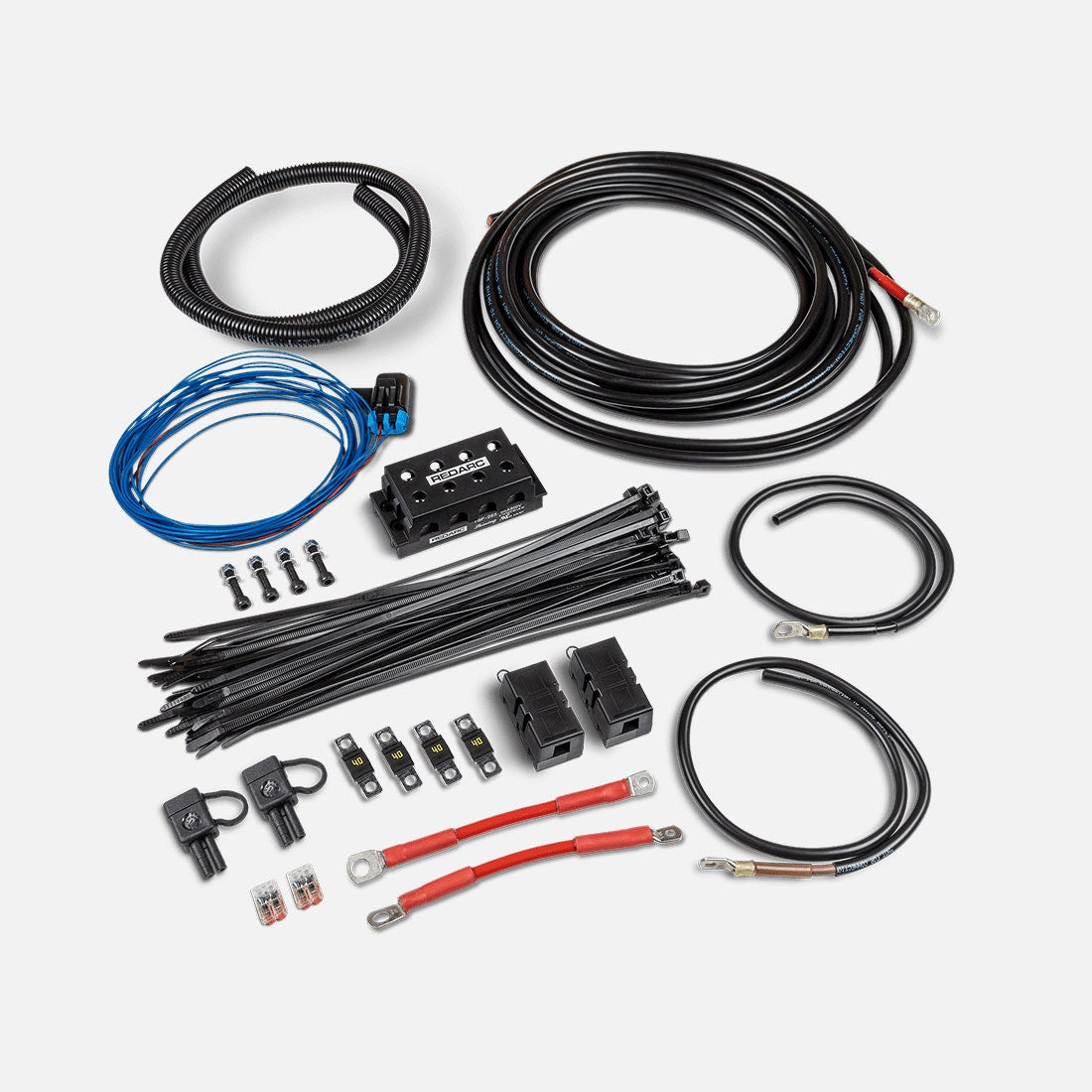

Redarc BCDCWK-003 wiring kit for 25A BCDC DC-DC battery charger, rear of vehicle install (up to 8.5 m)
The Redarc BCDCWK-003 is the wiring kit for installing a 25A BCDC DC-DC battery charger when the auxiliary battery is mounted at the rear of the vehicle – in the tray, canopy or cargo area – up to 8.5 m from the start battery.
It includes all the long-run cables, fuses, fuse holders and connectors you need. The cables are pre-crimped at one end; the other is cut to length and connected to the supplied junction block.
Compatible with BCDC1220, BCDC1220-IGN and BCDC1225D: ideal for utes and 4x4s with a rear-mounted house battery.
Key features
For long cable runsDesigned for rear auxiliary batteries up to 8.5 m from the start battery.
Complete solutionCables, MIDI fuse kit, junction block, Wago connector and conduit included.
Pre-crimped cablesOne end already terminated, the other trimmed to suit your installation.
Junction blockLets you cut the cables to length and make a secure, serviceable connection.
Protected wiring1 m of protective conduit and cable ties to secure the cables along the chassis.
Technical specifications
| Feature | Value |
|---|---|
| REDARC part number | BCDCWK-003 |
| Installation type | Rear of vehicle / tray (batteries up to 8.5 m apart) |
| Maximum BCDC current | 25 A |
| Compatible BCDC | BCDC1220, BCDC1220-IGN, BCDC1225D |
| Cables | Long-run brown, black and red, pre-crimped at one end |
| Short red cable | 150 mm |
| Fuses | Fuse kit with MIDI fuses and fuse holders |
| Blue wire | Included, with Wago® connector and cap |
| Junction block | With plastic cover, M5 × 25 mm socket head screw, M5 nylon lock nuts, M5 flat washers |
| Protective conduit | 1 m |
| Accessories | Cable ties |
| Not included | Auxiliary battery earth cable, solar panel to Anderson cable |
| Warranty | 2 years |
