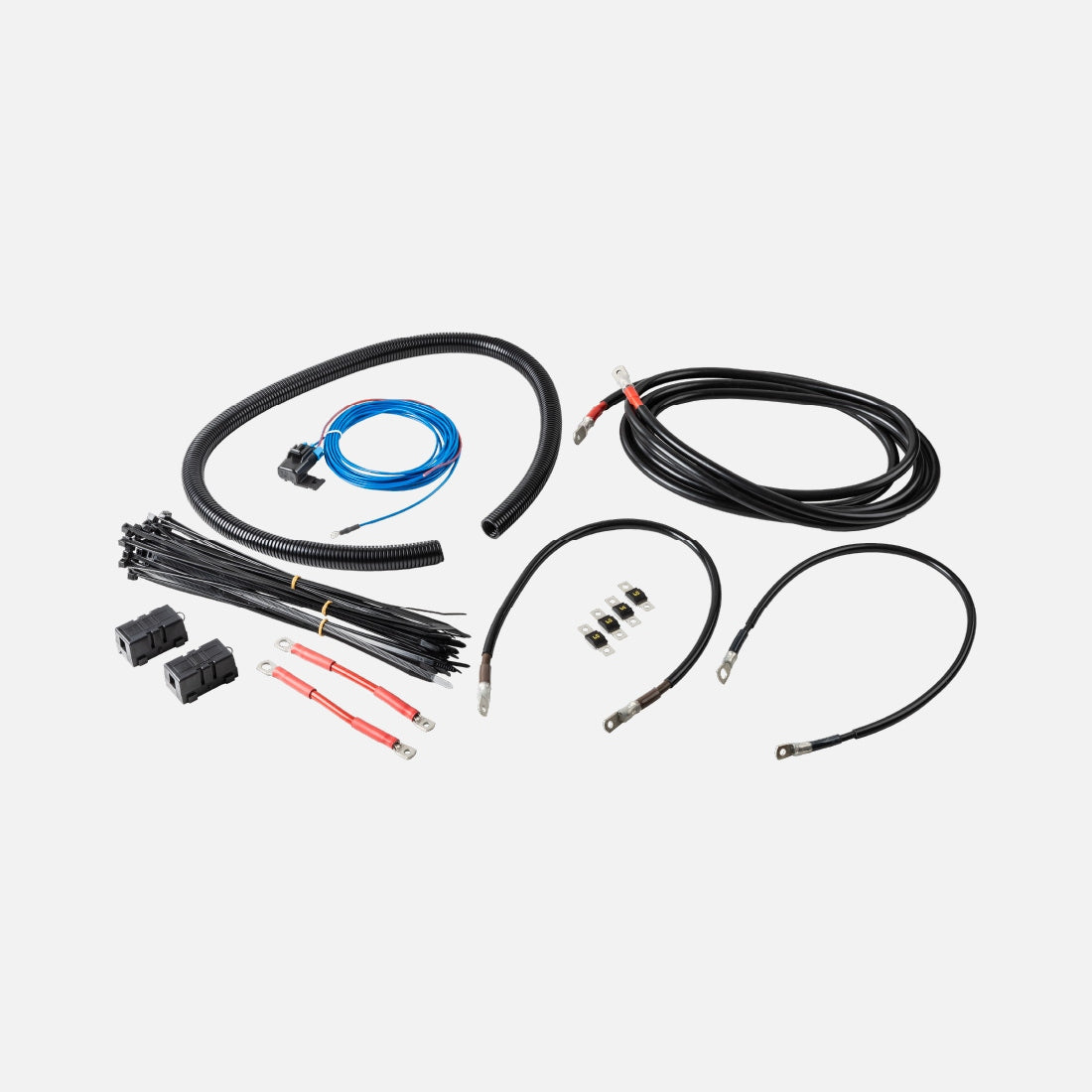

Redarc BCDCWK-107 wiring kit for BCDC Alpha 50A DC-DC charger, middle of vehicle install (4.5 m)
Redarc BCDCWK-107 wiring kit for BCDC Alpha 50A DC-DC charger, middle of vehicle install (4.5 m)
Regular price
€282.75
Regular price
Sale price
€282.75
Unit price
per
Tax included.
Couldn't load pickup availability
Delivery in 10-20 daysWarranty 2 yearsREDARC
Shipping costsItaly: free over €150; €13 for smaller orders.
European Union: free from €350; €60 for smaller orders.
European Union: free from €350; €60 for smaller orders.
Redarc BCDCWK-107 wiring kit for BCDC Alpha 50A DC-DC charger, middle of vehicle install (4.5 m)
The Redarc BCDCWK-107 is the wiring kit for the BCDC Alpha 50A DC-DC battery charger when the secondary battery is installed in the middle of the vehicle – for example in the cabin or under a seat – up to 4.5 m from the start battery.
The 21.2 mm² (4 AWG) positive cable limits voltage drop over the long run, while the cables to the secondary battery are kept short. Complete with 60A MIDI fuses, fused blue wire, conduit and 45 cable ties.
Key features
Dedicated to BCDC Alpha 50ACables and fuses sized for the BCDC Alpha.
In-cabin or mid-vehicle batterySecondary battery up to 4.5 m from the start battery.
21.2 mm² positive4.5 m red cable in 4 AWG for minimal losses over the long run.
Full protection60A fuse kit (4 MIDI + 2 fuse holders) and 2A MINI fuse on the blue wire.
Pre-crimped cablesOne end already terminated, the other cut to length.
Technical specifications
| Feature | Value |
|---|---|
| REDARC part number | BCDCWK-107 |
| Installation type | Middle of vehicle / cabin (secondary battery up to 4.5 m away) |
| Compatible BCDC | BCDC Alpha 50A (BCDC12050B), BCDC Alpha 50A R (BCDC12050R) |
| Brown cable | 600 mm – 13.3 mm² (6 AWG) |
| Black cable | 600 mm – 7.7 mm² (8 AWG) |
| Red cable | 4.5 m – 21.2 mm² (4 AWG) |
| Short red cables | 2 × 150 mm |
| Blue wire | 6.5 m – 0.5 mm² (20 AWG), with short red/blue wire |
| Fuses | 60 A kit: 4 × MIDI fuses, 2 × MIDI fuse holders; 1 × 2 A MINI blade fuse (blue wire) |
| Protective conduit | 1 m |
| Cable ties | 45 |
| Warranty | 2 years |
