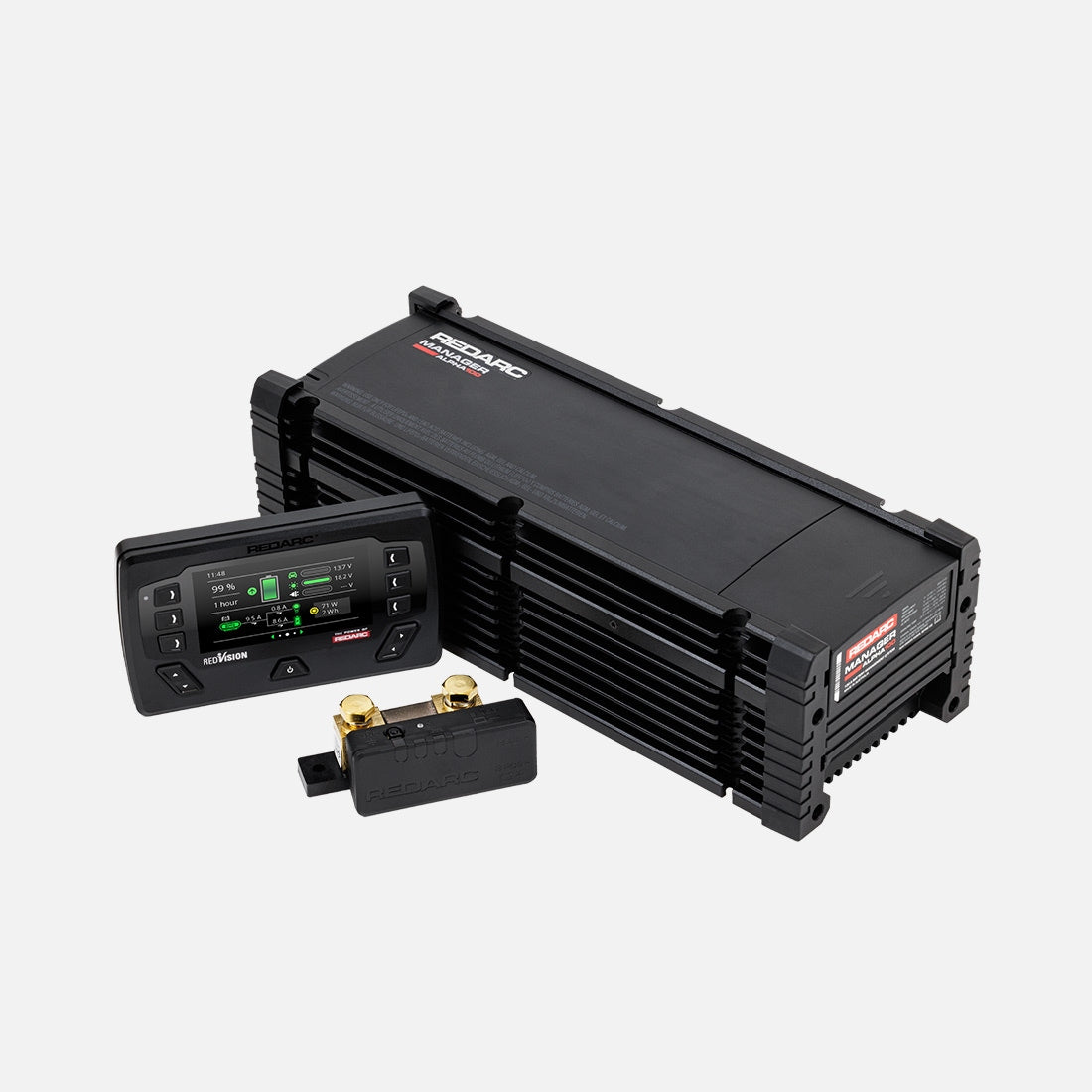

Redarc BMS12100-EU Manager Alpha100 12V 100A BMS – AC/DC/solar battery charger with RedVision, EU plug
Redarc BMS12100-EU Manager Alpha100 12V 100A BMS – AC/DC/solar battery charger with RedVision, EU plug
Regular price
€4,663.53
Regular price
Sale price
€4,663.53
Unit price
per
Tax included.
Couldn't load pickup availability
Delivery in 10-20 daysWarranty 2 yearsREDARC
Shipping costsItaly: free over €150; €13 for smaller orders.
European Union: free from €350; €60 for smaller orders.
European Union: free from €350; €60 for smaller orders.
Redarc BMS12100-EU Manager Alpha100 12V 100A BMS – AC/DC/solar battery charger with RedVision, EU plug
The Redarc Manager Alpha100 BMS12100-EU is the most powerful battery management system in the Manager Alpha range: up to 100 A to quickly charge large battery banks in motorhomes, caravans and camper trailers.
It combines alternator (DC), mains (AC) and solar simultaneously, with integrated ±500 A battery monitoring, Bluetooth 5.1 and RedVision compatibility.
European version with EU (Schuko) mains plug for 230 V. Designed and manufactured in Australia.
Key features
100 A from three sourcesSimultaneous charging from vehicle, AC mains and solar up to 100 A combined.
For large battery banksIdeal for high-capacity lithium systems and high-draw appliances.
Compact and lightweightUp to 55% smaller and 20% lighter than equivalent systems.
Starter battery recoveryReverse charging function to top up the starter battery.
Accurate monitoring±500 A current measurement, up to 5 times more accurate than the competition.
RedVision and Bluetooth 5.1Control and monitoring from the RedVision display and your smartphone.
Technical specifications
| Feature | Value |
|---|---|
| REDARC part number | BMS12100-EU |
| Rated current | 100 A |
| Nominal output voltage | 12 V |
| Starter battery input voltage | 9-32 V DC |
| Solar input voltage | 9-32 V DC |
| AC input voltage | 95-264 V AC rms / 45-65 Hz |
| Current measurement range | ±500 A |
| Compatible batteries | Gel, AGM, calcium, standard lead-acid, lithium |
| Connectivity | Bluetooth 5.1, RedVision |
| Mains plug | EU (Schuko) |
| Operating temperature | -20 °C to +60 °C |
| Dimensions (H × W × D) | 120 × 154 × 400 mm |
| Weight | 6.1 kg |
| Warranty | 2 years |
