Redarc LFP2420 24V 20A DC-DC battery charger for LiFePO4 lithium batteries, MPPT solar regulator
Redarc LFP2420 24V 20A DC-DC battery charger for LiFePO4 lithium batteries, MPPT solar regulator
Regular price
€810.92
Regular price
Sale price
€810.92
Unit price
per
Tax included.
Couldn't load pickup availability
Delivery in 10-20 daysWarranty 2 yearsREDARC
Shipping costsItaly: free over €150; €13 for smaller orders.
European Union: free from €350; €60 for smaller orders.
European Union: free from €350; €60 for smaller orders.
Redarc LFP2420 24V 20A DC-DC battery charger for LiFePO4 lithium batteries, MPPT solar regulator

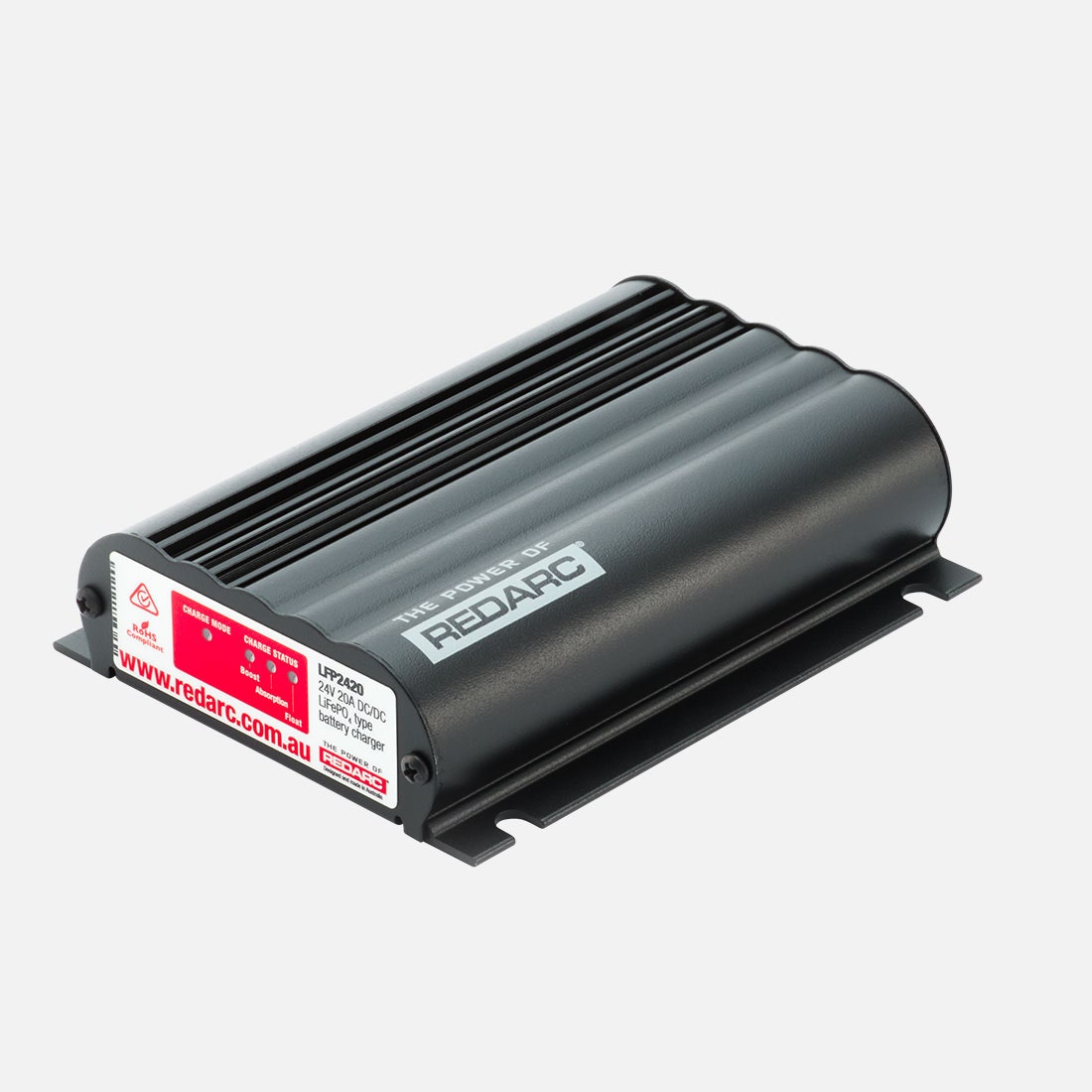

The Redarc LFP2420 is a 3-stage DC-DC battery charger with a 24 V 20 A output, dedicated to optimal charging of lithium iron phosphate (LiFePO4) batteries of any capacity.
9-32 V vehicle input (12 V or 24 V systems), built-in MPPT solar regulator, starter battery isolator and sealed fanless electronics: it can even be installed in the engine bay of trucks, special vehicles, motorhomes and boats with a 24 V house system.
Key features
Dedicated to LiFePO43-stage charge profile optimised for lithium iron phosphate batteries.
24 V 20 A outputFor 24 V auxiliary battery banks.
MPPT solar regulator9-32 V solar input with maximum yield from your panels.
Built-in isolatorProtects the starter battery from being drained.
Sealed and silentNo fan, suitable for engine bay mounting.
Technical specifications
| Feature | Value |
|---|---|
| REDARC part number | LFP2420 |
| Battery chemistry | Lithium (LiFePO4) |
| Input voltage | 9 - 32 V |
| Output voltage | 24 V DC |
| Continuous current | 20 A |
| Max. output current | 20 A |
| Solar input voltage | 9 - 32 V |
| Input fuse | 60 A / 40 A |
| Output fuse | 30 A (not supplied) |
| Engine bay mounting | Yes |
| Operating temperature | -10 °C to +80 °C |
| Dimensions (H × W × D) | 37 × 120 × 150 mm |
| Weight | 650 g |
| Warranty | 2 years |
