Redarc SRC0006 MC4 Y-connector kit for wiring 2 solar panels in parallel, 30A
Redarc SRC0006 MC4 Y-connector kit for wiring 2 solar panels in parallel, 30A
Regular price
€31.75
Regular price
Sale price
€31.75
Unit price
per
Tax included.
Couldn't load pickup availability
Delivery in 10-20 daysWarranty 2 yearsREDARC
Shipping costsItaly: free over €150; €13 for smaller orders.
European Union: free from €350; €60 for smaller orders.
European Union: free from €350; €60 for smaller orders.

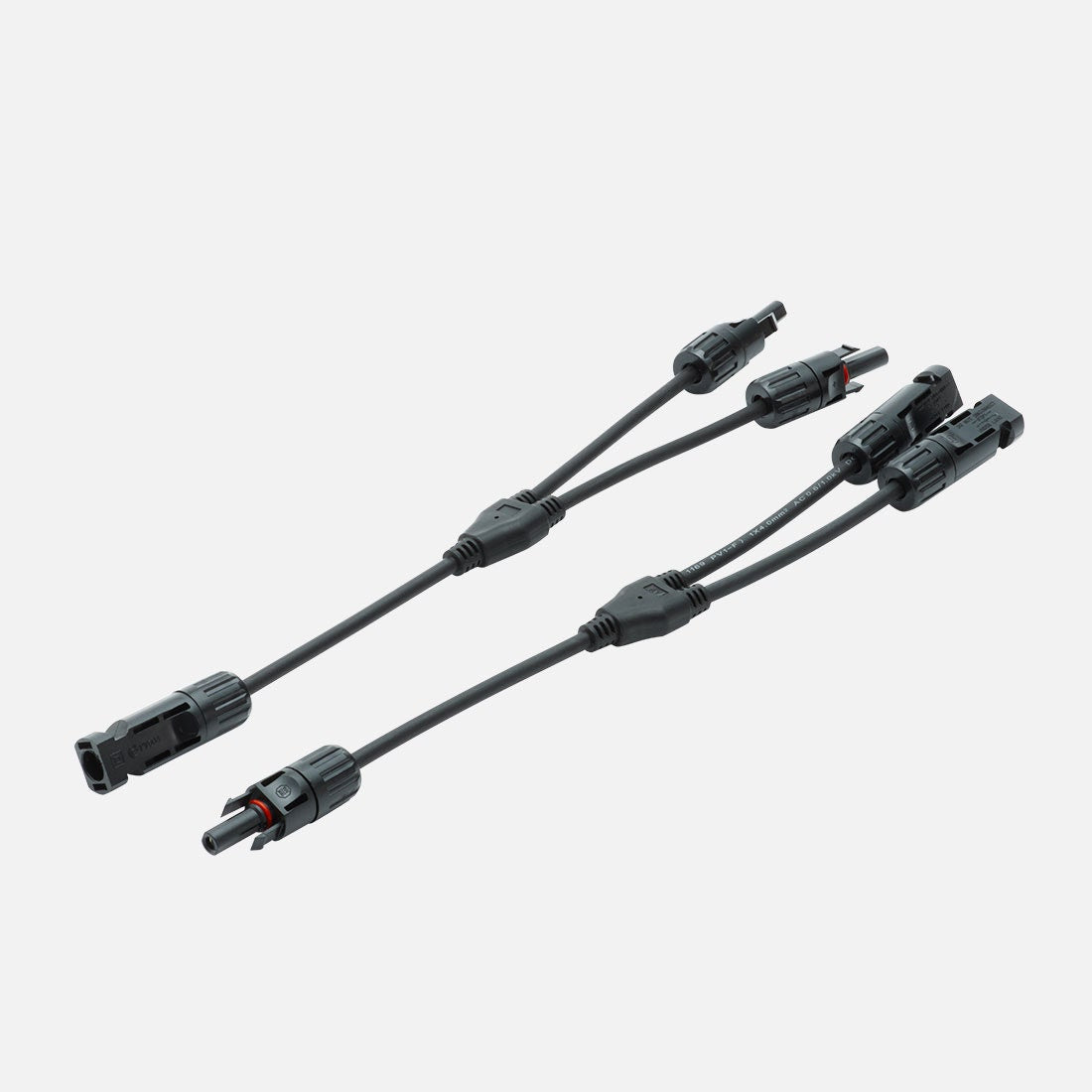

Redarc SRC0006 MC4 Y-connector kit for wiring 2 solar panels in parallel, 30A
The Redarc SRC0006 is an MC4 Y-connector kit that combines the positive and negative leads of two solar panels into a single output, so you can wire them in parallel to the regulator.
Essential when installing multiple Redarc fixed or folding panels on a motorhome, caravan or 4x4.
Key features
Parallel connectionAdds up the current of two panels while keeping the same voltage.
MC4 connectorsCompatible with MC4-standard solar panels and cables.
30 A current ratingAWG 11 tinned copper leads with UV-resistant insulation.
Complete kitY-adaptors for both positive and negative.
Technical specifications
| Feature | Value |
|---|---|
| REDARC part number | SRC0006 |
| Insulation / sheath | UV-stabilised PVC |
| Rated voltage | 50 V DC max |
| Conductor | Tinned copper |
| Rated current | 30 A |
| Conductor size | AWG 11 (Ø 2.3 mm) |
| Cable length | 300 mm (±30 mm) |
| Connectors | MC4 Y-branch |
| Warranty | 2 years |
