DC Surge Protective Device Jean Müller C3947 Type 1+2 1000V 1 MPPT

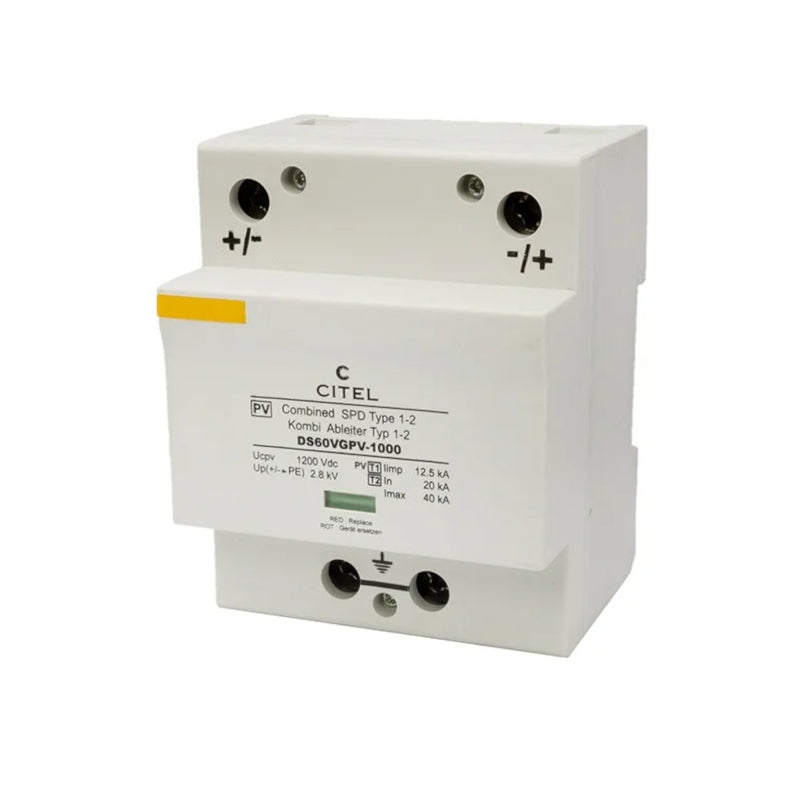

The Jean Müller C3947 (model DS60VGPV-1000) is a surge protective device (SPD) of the combined Type 1+2 class, specific to the DC side of photovoltaic systems. It protects one MPPT with a three-pole Y structure, which discharges the three PV+ / PV− / PE paths to earth, and works up to 1000V DC (Ucpv), with a withstand of up to 1200V DC.

It is installed in the DC combiner box, as close as possible to the inverter's string input or near the photovoltaic generator, and it is the device to adopt when the building or the system is fitted with lightning protection or exposed to direct lightning strikes: the Type 1 component discharges a lightning current Iimp of 12.5kA per pole, i.e. 25kA in total with a 10/350 µs waveform, while the Type 2 function limits induced surges, with an Imax of 20kA on an 8/20 µs wave. The VG technology combines varistors and a spark gap to achieve low residual protection levels with no permanent leakage current. A red mechanical indicator shows which module needs replacing and a changeover remote signalling contact makes it possible to report the alarm at a distance, an essential function in unattended installations.

Key features

Type 1+2 for the DC sideA single device covers both lightning current discharge and the limitation of induced surges on the photovoltaic array.
Up to 1000V DCUcpv of 1000V DC with a withstand of 1200V DC, compatible with 1000V photovoltaic strings.
Iimp 12.5kA per pole, 25kA in totalLightning current on a 10/350 µs wave suited to installations equipped with lightning protection.
Y arrangement for one MPPTThe three-pole Y configuration simultaneously protects the PV+ to PE, PV− to PE and PV+ to PV− paths.
Local and remote signallingRed mechanical end-of-life module indicator and changeover contact rated 250V/0.5A AC or 30V/2A DC for remote signalling.
Wide temperature rangeOperation from -40 °C to +85 °C, with a self-extinguishing PEI enclosure rated UL94-V0.

Technical specifications

FeatureValue
Product codeC3947
Device typeSurge protective device (SPD) for photovoltaic DC, model DS60VGPV-1000
System sideDirect current (DC)
Surge protective device (type)Type 1+2 (class I+II)
MPPTs managed1
Number of poles / phases3 poles, Y connection (PV+, PV−, PE)
Maximum PV voltage (Ucpv)1000V DC
Maximum continuous operating voltage (Uc)1200V DC
Lightning impulse current (Iimp 10/350 µs)12.5kA per pole, 25kA total
Maximum discharge current (Imax 8/20 µs)20kA
Protection level (Up)< 2.3kV at 5kA; < 2.5kV at 12.5kA; < 2.8kV at In; < 3.7kV at Imax
Response time< 25 ns
IndicationRed mechanical indicator for a faulty module
Remote signalling contactChangeover, max 250V / 0.5A AC or 30V / 2A DC
Signalling terminal cross-sectionMax 1,5 mm²
Number of DIN modules4
Protection ratingIP20
Operating temperatureFrom -40 °C to +85 °C
Enclosure materialSelf-extinguishing PEI UL94-V0
Mounting35 mm DIN rail
Dimensions95 × 84 × 76 mm
Weight0.41 kg
StandardsEN 61643-11 (PN-EN 61643-11) and EN 50539-11 (SPDs for photovoltaic systems)

Documentation

PDFDatasheet C3947Official manufacturer document

Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
