Steel Fixing Bracket for Solar Carport
Steel Fixing Bracket for Solar Carport
Regular price
€18.68
Regular price
Sale price
€18.68
Unit price
per
Couldn't load pickup availability
Prices exclude VAT: tax is calculated in the cart based on the delivery country.
EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
AVAILABILITY
Product available, quantity not tracked
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: 60 € per order, with no threshold
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Delivery in 10-20 daysCarportLitio Store

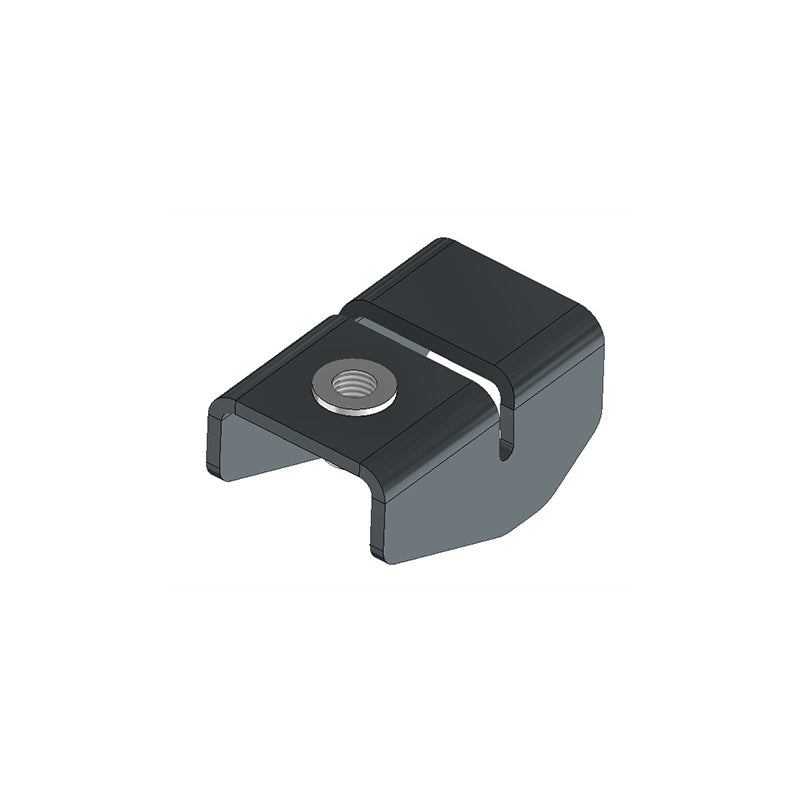

Steel Fixing Bracket for Solar Carport
Spare structural element for the steel solar carports of the W-01 series. It is a sheet steel fixing bracket, one of the components that make up the carport frame and that take part in the connection between the load-bearing profiles and the support structure of the PV modules. It is an item intended to complete an existing supply, to replace a damaged part or to extend a structure that has already been assembled.
Since it is a component of the same construction family, it keeps the original hole pattern and dimensions of the system and is fitted with the bolts specified in the carport manual, with no need for adjustments or on-site drilling. Assembly is entirely bolted: the carport structure can be dismantled and reconfigured, so the individual element can be replaced even when the plant is already in operation, working only on the section concerned.
Key features
Original spare part of the W-01 seriesComponent from the same construction family as the carport: dimensions and hole patterns already correct.
Bolted assemblyThe carport structure is entirely bolted and can be dismantled: replacement requires neither welding nor drilling.
Sheet steel elementMade of structural steel, consistent with the rest of the carport structure.
Low weightOnly 0.12 kg: it can be handled and positioned without lifting equipment.
Useful for extensionsIt makes it possible to complete the supply when the carport is extended with additional sections.
Tightening according to the manualThe structure manual indicates the tightening torques to be observed for each bolt class.
Technical specifications
| Feature | Value |
|---|---|
| Product type | Bracket / fixing element for solar carport |
| Compatible structure | Solar carport, W-01 series |
| Material | Steel |
| Mounting type | Bolted |
| Dimensions | 250 × 450 × 1 mm |
| Weight | 0.12 kg |
The structure and its foundations must be installed by qualified personnel in accordance with the structural design and the applicable standards.
