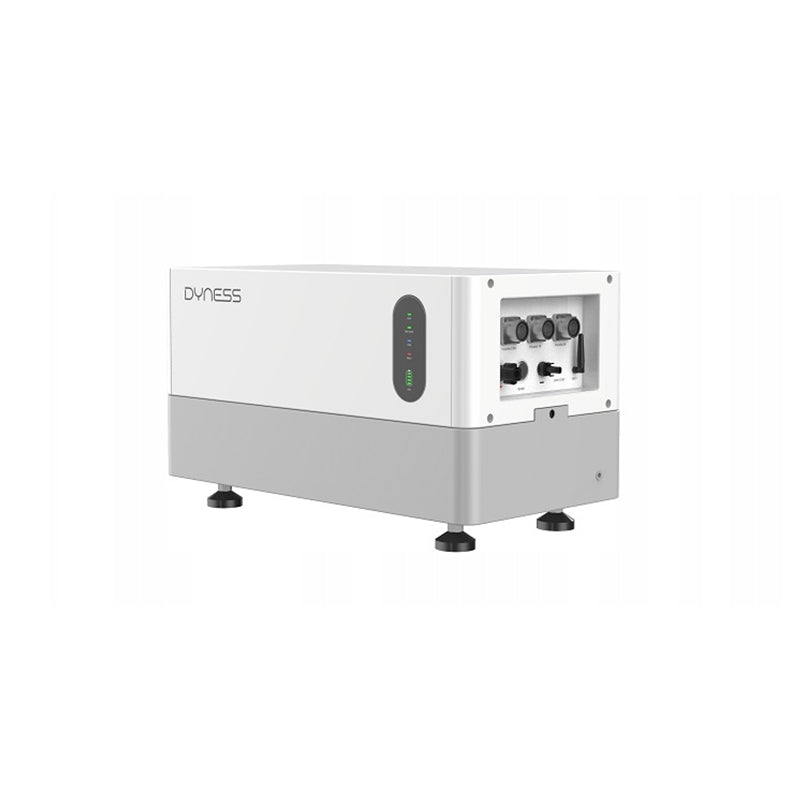

Dyness TOWER PRO BDU + Base Control Unit for Tower Pro High Voltage Systems
Dyness TOWER PRO BDU + Base Control Unit for Tower Pro High Voltage Systems
Regular price
€707.67
Regular price
Sale price
€707.67
Unit price
per
Tax included.
Couldn't load pickup availability
VAT note
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Delivery in 10-20 daysControl unitHigh voltageDyness
Dyness TOWER PRO BDU + Base Control Unit for Tower Pro High Voltage Systems
The Dyness Tower Pro BDU + BASE kit is the control unit and the base of the Dyness Tower Pro high voltage storage system (T-TP7 / TP11 / TP15 / TP19 / TP23). The base is installed on the floor and houses the HV9640 battery modules of 3.84 kWh, while the BDU placed at the top manages contactors, protections, balancing and communication with the hybrid inverter.
A Tower Pro tower can be made up of 2 to 6 modules, for an energy between 7.68 and 23.04 kWh and a voltage range from 192 to 576 V, with a maximum current of 100 A (1C). Communication takes place in CAN/RS485 towards GoodWe, Solis, SAJ and Ingeteam inverters; the protection rating is IP55 and the system integrates an aerosol fire suppression device.
Key features
Tower Pro control unitIt manages charging, discharging, protections and communication of the HV9640 modules of the Tower Pro tower.
BDU + Base kitIt includes the control unit, the floor base, DC and communication cables, connectors and mounting hardware.
From 2 to 6 modulesIt allows configurations from 7.68 to 23.04 kWh with a voltage range of 192-576 V.
Current up to 100 AIt supports a maximum charge/discharge current of 100 A (1C).
CAN/RS485 communicationIt communicates with GoodWe, Solis, SAJ and Ingeteam hybrid inverters.
Safety and IP55IP55 protection and aerosol fire suppression system with intervention in less than 5 seconds.
Technical specifications
| Feature | Value |
|---|---|
| Product code | TOWER PRO BDU |
| Model | Dyness Tower Pro BDU + BASE |
| Function | Control unit (BDU/BMS) and base for Dyness Tower Pro towers |
| Module compatibility | Dyness HV9640 (3.84 kWh, LiFePO4) |
| Modules per tower | da 2 a 6 |
| System energy | da 7,68 a 23,04 kWh |
| Voltage range | da 192 V a 576 V |
| Max charge/discharge current | 100 A (1C) |
| Compatible inverters | GoodWe, Solis, SAJ, Ingeteam |
| Communication | CAN / RS485 |
| Protection rating | IP55 |
| Safety | Built-in aerosol extinguisher (activation < 5 s) |
| BDU dimensions (W x D x H) | 587 x 310 x 280 mm |
| Weight (BDU + Base kit) | approx. 27 kg |
| Certifications | CE, UN38.3, IEC62619 |
| Warranty | 10 years |
Documentation
PDFDatasheet TOWER PRO BDUOfficial manufacturer documentPlease check compatibility with your storage system before ordering.
