Victron Energy
Victron Energy Centaur 24/60 (3) caricabatterie 24V 60A 3 uscite ingresso universale
Victron Energy Centaur 24/60 (3) caricabatterie 24V 60A 3 uscite ingresso universale
Regular price
€810.00
Regular price
Sale price
€810.00
Unit price
per
Couldn't load pickup availability
- Prices exclude VAT: tax is calculated in the cart based on the delivery country.
- EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
- Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.
AVAILABILITY
Product available, quantity not tracked
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: 60 € per order, with no threshold
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Delivery in 10-20 days5-year warrantyVictron Energy

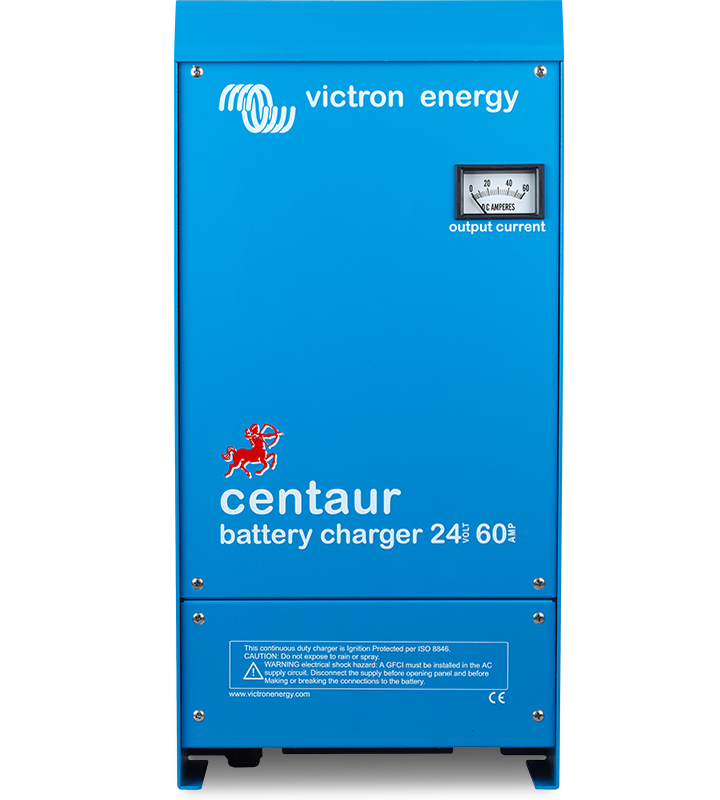

Victron Energy Centaur 24/60 (3) battery charger 24V 60A 3 outputs universal input
Victron Energy Centaur 24/60 (3) battery charger 24V 60A 3 outputs universal input is a Victron Energy mains battery charger for battery packs. The declared figures are: Input voltage 90-265 VAC / 90-400 VDC, Frequency 45-65 Hz, Power factor 1. Product code: CCH024060000.
Centaur battery chargers have an auto-ranging 90-265 V AC 50/60 Hz input and can be used anywhere in the world. Unlike many "universal" products, they deliver full output power across the whole input range.
A mains battery charger brings the battery back to full charge following the profile set for its chemistry.
Key features
Victron part number: CCH024060000Manufacturer's declared figure.
Input voltage: 90-265 VAC / 90-400 VDCDeclared voltage value: check it against the limits of the connected equipment.
Frequency: 45-65 HzManufacturer's declared figure.
Power factor: 1Power as stated by the manufacturer.
5-year warrantyWarranty as stated by the manufacturer.
Documentation availableThe manufacturer's datasheet is attached as a PDF in the Documentation section.
Technical specifications
| Feature | Value |
|---|---|
| Product code | CCH024060000 |
| Manufacturer | Victron Energy |
| Victron part number | CCH024060000 |
| Input voltage | 90-265 VAC / 90-400 VDC |
| Frequency | 45-65 Hz |
| Power factor | 1 |
| Absorption voltage | 14.3 V / 28.5 V |
| Float voltage | 13.5 V / 27.0 V |
| Charging algorithm | IUoU (three-stage) |
| Protections | Output short circuit, over-temperature |
| Protection rating | IP20 |
| Charging current | 60 A |
| Weight | 12 kg |
| Dimensions (H × W × D, mm) | 514 × 252 × 123 |
| Outputs | 3 |
| Temperature compensation | -2 mV/°C per cell |
| Operating temperature | -20 ÷ +60 °C |
| Humidity | max 95% non-condensing |
| Cooling | Temperature- and current-controlled fan |
| Warranty | 5 years |
