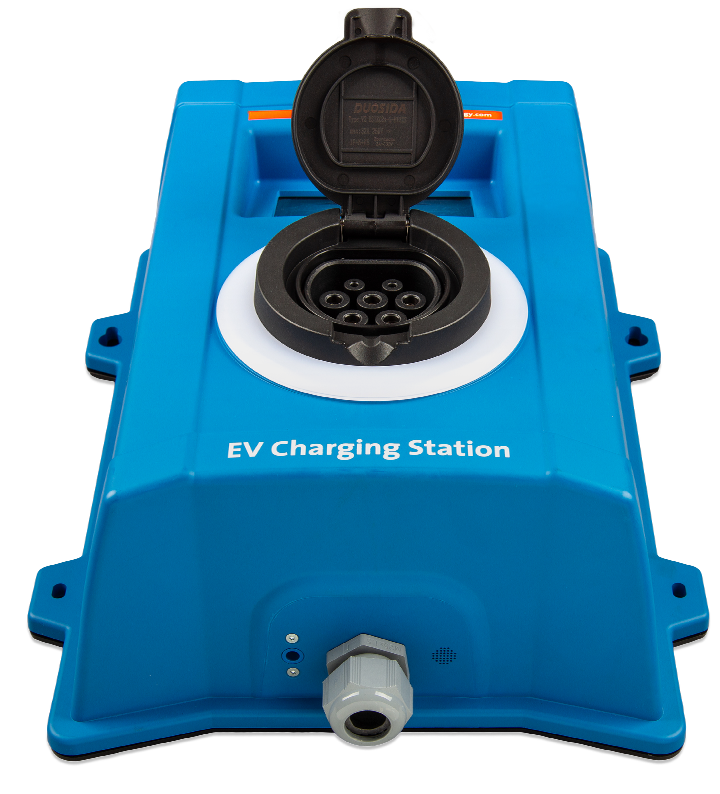

Victron Energy EV Charging Station wallbox 22kW three-phase 7.3kW single-phase with display
Victron Energy EV Charging Station wallbox 22kW three-phase 7.3kW single-phase with display is a Victron Energy charging station (wallbox) for electric vehicles. The declared figures are: Rated power 22 kW (three-phase) / 7.3 kW (single-phase), Input voltage 170-265 VAC, Charging current 6-32 A (32 A per phase). Product code: EVC300400300.
The Victron EV Charging Station works in both three-phase and single-phase: up to 22 kW AC three-phase or 7.3 kW single-phase, with a built-in LCD touchscreen for monitoring and control directly at the charging point.
The wallbox charges the electric vehicle with AC power: check the power rating and the number of phases against what the meter can supply.
Key features
Victron part number: EVC300400300Manufacturer's declared figure.
Rated power: 22 kW (three-phase) / 7.3 kW (single-phase)Power as stated by the manufacturer.
Input voltage: 170-265 VACDeclared voltage value: check it against the limits of the connected equipment.
Charge current: 6-32 A (32 A per phase)Maximum current allowed during charging.
5-year warrantyWarranty as stated by the manufacturer.
Documentation availableThe manufacturer's datasheet is attached as a PDF in the Documentation section.
Technical specifications
| Feature | Value |
|---|---|
| Product code | EVC300400300 |
| Manufacturer | Victron Energy |
| Victron part number | EVC300400300 |
| Rated power | 22 kW (three-phase) / 7.3 kW (single-phase) |
| Input voltage | 170-265 VAC |
| Charging current | 6-32 A (32 A per phase) |
| Residual current protection | External RCD required |
| Communication | Modbus TCP over WiFi, Bluetooth |
| Protection rating | IP44 |
| Weight | 3 kg |
| Dimensions (H × W × D, mm) | 377 × 307 × 148 |
| Connector | IEC 62196 Type 2 |
| Switch | External, 40 A recommended |
| WiFi | 802.11 b/g/n (2.4 GHz) |
| Display | 4.3 inch LCD touchscreen |
| Operating temperature | -25 ÷ +50 °C |
| Colour | Blue (RAL 5012) |
| Warranty | 5 years |
