Victron Energy
Victron Energy frontalino per EV Charging Station NS
Victron Energy frontalino per EV Charging Station NS
Regular price
€29.70
Regular price
Sale price
€29.70
Unit price
per
Couldn't load pickup availability
- Prices exclude VAT: tax is calculated in the cart based on the delivery country.
- EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
- Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.
AVAILABILITY
Product available, quantity not tracked
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: 60 € per order, with no threshold
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Delivery in 10-20 days5-year warrantyVictron Energy

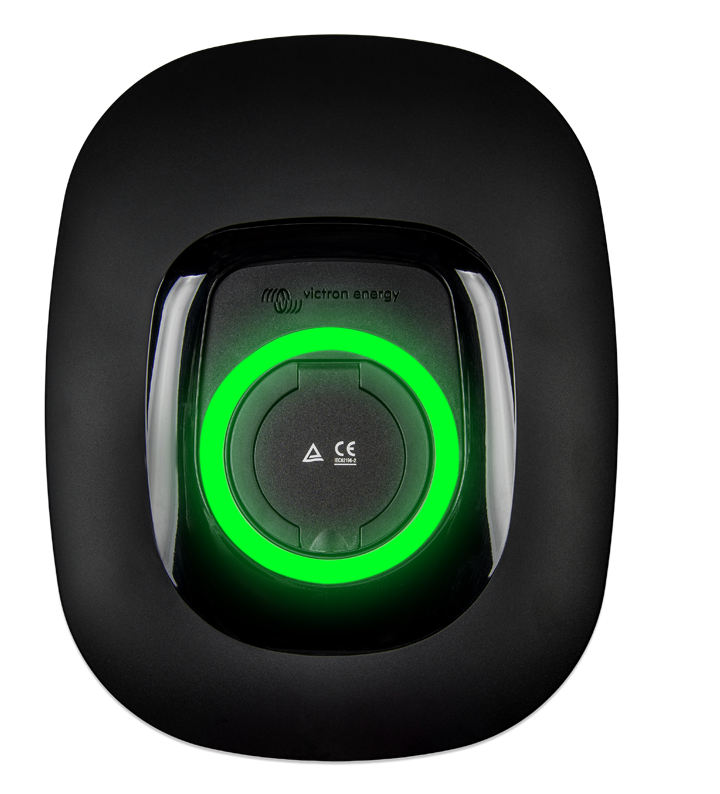

Victron Energy front cover for EV Charging Station NS
Victron Energy front cover for EV Charging Station NS is a Victron Energy accessory for inverters. The declared figures are: Rated power 22 kW (three-phase) / 7.3 kW (single-phase), Input voltage 170-265 VAC, Charge current 6-32 A (32 A per phase). Product code: EVC200300310.
The EV Charging Station NS works in three-phase and single-phase: up to 22 kW AC three-phase or 7.3 kW single-phase. Modern screenless design, available in three colours with the optional front covers.
Displays, cables and communication cards extend the inverter's functions and let you control it.
Key features
Victron part numbers: EVC200300310 · EVC200300410Manufacturer's declared figure.
Rated power: 22 kW (three-phase) / 7.3 kW (single-phase)Power as stated by the manufacturer.
Input voltage: 170-265 VACDeclared voltage value: check it against the limits of the connected equipment.
Charge current: 6-32 A (32 A per phase)Maximum current allowed during charging.
5-year warrantyWarranty as stated by the manufacturer.
Documentation availableThe manufacturer's datasheet is attached as a PDF in the Documentation section.
Technical specifications
| Feature | Value |
|---|---|
| Product code | EVC200300310 |
| Manufacturer | Victron Energy |
| Victron part number | EVC200300310 · EVC200300410 |
| Rated power | 22 kW (three-phase) / 7.3 kW (single-phase) |
| Input voltage | 170-265 VAC |
| Charging current | 6-32 A (32 A per phase) |
| Power terminals | 6-10 mm² / AWG 10-8 |
| Residual current protection | External RCD required |
| Communication | Modbus TCP over WiFi, Bluetooth |
| Protection rating | IP44 |
| Weight | 3 kg |
| Dimensions (H × W × D, mm) | 372 × 292 × 122 |
| Connector | IEC 62196 Type 2 |
| Switch | External, 40 A recommended |
| WiFi | 802.11 b/g/n (2.4 GHz) |
| Standards | IEC 61851-1, IEC 61851-22 |
| Operating temperature | -25 ÷ +50 °C |
| Self-consumption | 15 mA @ 230 V |
| Colours | light blue (standard), black, white |
| Warranty | 5 years |
