Victron Energy Orion-Tr Smart 24/48-8,5A isolato caricabatterie DC-DC 24V-48V 8,5A Bluetooth
Victron Energy Orion-Tr Smart 24/48-8,5A isolato caricabatterie DC-DC 24V-48V 8,5A Bluetooth
Regular price
€234.90
Regular price
Sale price
€234.90
Unit price
per
Couldn't load pickup availability
- Prices exclude VAT: tax is calculated in the cart based on the delivery country.
- EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
- Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.
AVAILABILITY
Product available, quantity not tracked
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: 60 € per order, with no threshold
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Delivery in 10-20 days5-year warrantyVictron Energy
Victron Energy Orion-Tr Smart 24/48-8.5A isolated DC-DC charger 24V-48V 8.5A Bluetooth
Victron Energy Orion-Tr Smart 24/48-8.5A isolated DC-DC charger 24V-48V 8.5A Bluetooth is a Victron Energy DC-DC battery charger for charging from an alternator or a second battery. The declared figures are: Input voltage 16-35 V, Nominal output voltage 48.2 V, Output voltage adjustment 40-60 V. Product code: ORI244840120.

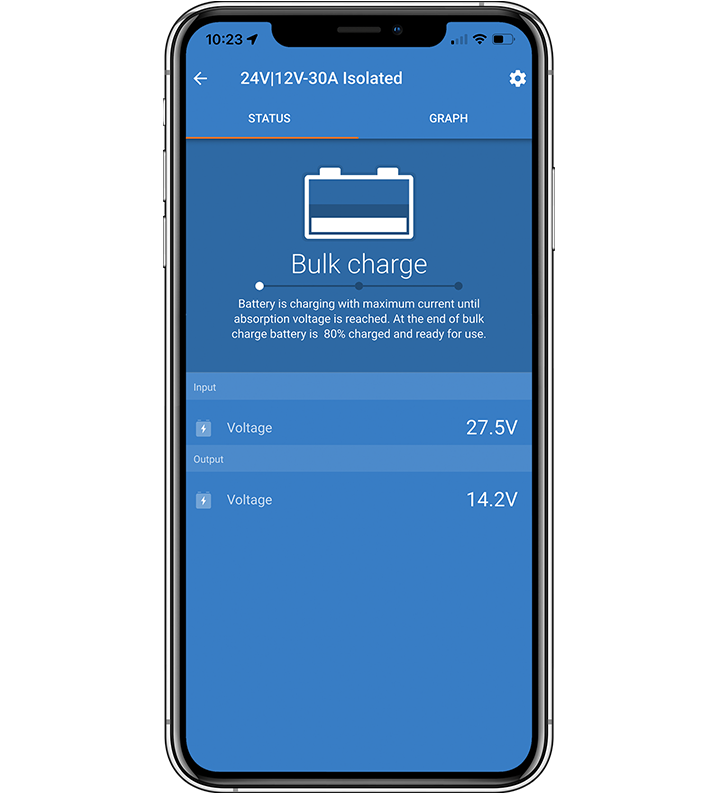

The isolated Orion-Tr Smart is an adaptive 3-stage DC-DC charger (bulk, absorption, float) designed for dual-battery systems in vehicles and boats, where the engine battery and the alternator charge the service battery. It has built-in Bluetooth for configuration and monitoring, plus galvanic isolation between input and output.
A DC-DC charger charges the service battery from a DC source while keeping it separated from the starter battery.
Key features
Victron part number: ORI244840120Manufacturer's declared figure.
Input voltage: 16-35 VDeclared voltage value: check it against the limits of the connected equipment.
Nominal output voltage: 48.2 VDeclared voltage value: check it against the limits of the connected equipment.
Output voltage adjustment: 40-60 VDeclared voltage value: check it against the limits of the connected equipment.
5-year warrantyWarranty as stated by the manufacturer.
Documentation availableThe manufacturer's datasheet is attached as a PDF in the Documentation section.
Technical specifications
| Feature | Value |
|---|---|
| Product code | ORI244840120 |
| Manufacturer | Victron Energy |
| Victron part number | ORI244840120 |
| Input voltage | 16-35 V |
| Nominal output voltage | 48.2 V |
| Output voltage adjustment | 40-60 V |
| Continuous output current (40 °C) | 8.5 A |
| Max output current (10 s) | 15 A |
| Continuous power (25 °C) | 480 W |
| Continuous power (40 °C) | 400 W |
| Efficiency | 89% |
| Bluetooth | Yes |
| Weight | 1.8 kg |
| Dimensions (H × W × D) | 130 × 186 × 80 mm |
| Galvanic isolation | 200 V DC between input, output and enclosure |
| Operating temperature | -20 ÷ +55 °C (3% derating per °C above 40 °C) |
| Warranty | 5 years |
