Victron Energy Orion-Tr Smart 48/12-30A isolated DC-DC charger 48V-12V 30A Bluetooth
Victron Energy Orion-Tr Smart 48/12-30A isolated DC-DC charger 48V-12V 30A Bluetooth is a Victron Energy DC-DC battery charger for charging from an alternator or a second battery. The declared figures are: Input voltage 32-70 V, Nominal output voltage 12.2 V, Output voltage adjustment 10-15 V. Product code: ORI481238120.

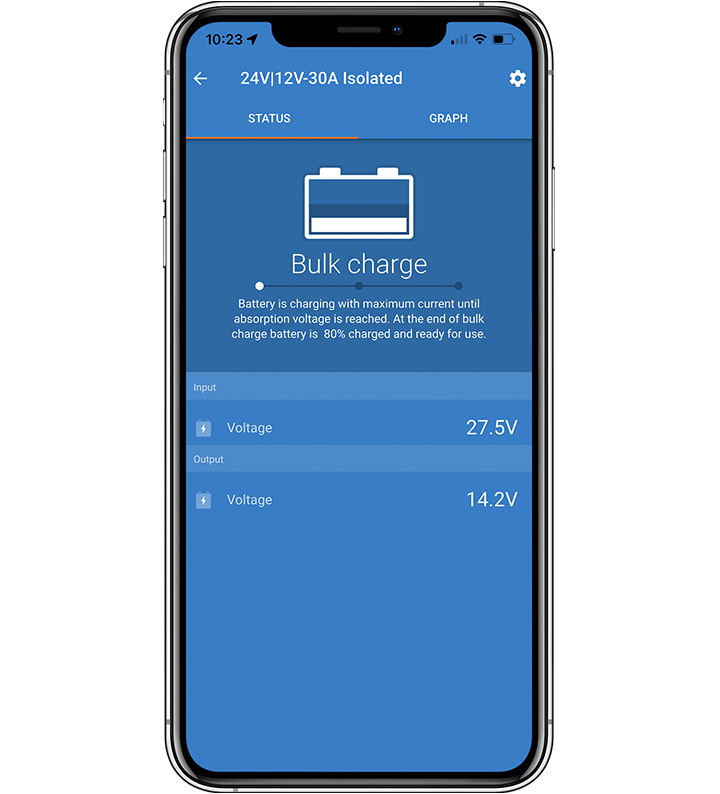

The isolated Orion-Tr Smart is an adaptive 3-stage DC-DC charger (bulk, absorption, float) designed for dual-battery systems in vehicles and boats, where the engine battery and the alternator charge the service battery. It has built-in Bluetooth for configuration and monitoring, plus galvanic isolation between input and output.
A DC-DC charger charges the service battery from a DC source while keeping it separated from the starter battery.
Key features
Victron part number: ORI481238120Manufacturer's declared figure.
Input voltage: 32-70 VDeclared voltage value: check it against the limits of the connected equipment.
Nominal output voltage: 12.2 VDeclared voltage value: check it against the limits of the connected equipment.
Output voltage adjustment: 10-15 VDeclared voltage value: check it against the limits of the connected equipment.
5-year warrantyWarranty as stated by the manufacturer.
Documentation availableThe manufacturer's datasheet is attached as a PDF in the Documentation section.
Technical specifications
| Feature | Value |
|---|---|
| Product code | ORI481238120 |
| Manufacturer | Victron Energy |
| Victron part number | ORI481238120 |
| Input voltage | 32-70 V |
| Nominal output voltage | 12.2 V |
| Output voltage adjustment | 10-15 V |
| Continuous output current (40 °C) | 30 A |
| Max output current (10 s) | 40 A |
| Continuous power (25 °C) | 430 W |
| Continuous power (40 °C) | 360 W |
| Efficiency | 87% |
| Bluetooth | Yes |
| Weight | 1.6 kg |
| Dimensions (H × W × D) | 130 × 186 × 70 mm |
| Galvanic isolation | 200 V DC between input, output and enclosure |
| Operating temperature | -20 ÷ +55 °C (3% derating per °C above 40 °C) |
| Warranty | 5 years |
