Victron Energy
Victron Energy Skylla-TG 24/100 trifase (1+1) caricabatterie 24V 100A 400V
Victron Energy Skylla-TG 24/100 trifase (1+1) caricabatterie 24V 100A 400V
Regular price
€1,849.50
Regular price
Sale price
€1,849.50
Unit price
per
Couldn't load pickup availability
Prices exclude VAT: tax is calculated in the cart based on the delivery country.
EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
AVAILABILITY
Product available, quantity not tracked
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: 60 € per order, with no threshold
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Delivery in 10-20 days5-year warrantyVictron Energy

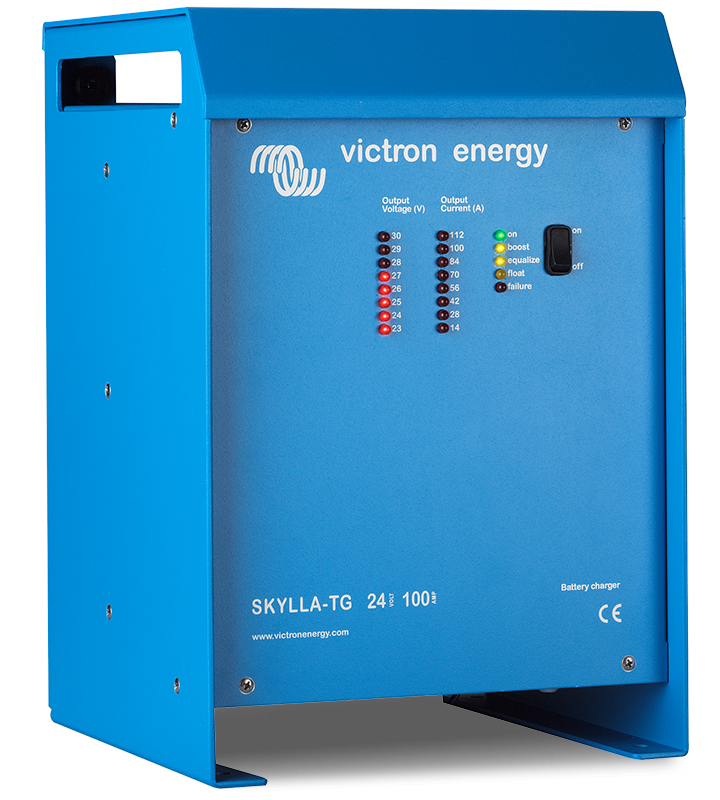

Victron Energy Skylla-TG 24/100 three-phase (1+1) battery charger 24V 100A 400V
Victron Energy Skylla-TG 24/100 three-phase (1+1) battery charger 24V 100A 400V is a Victron Energy mains battery charger for battery packs. The declared figures are: Frequency 45-65 Hz, Power factor 1, Protection rating IP21. Product code: STG024100300.
The Skylla-TG has a full-current output and a 4 A output. The charge voltage can be set precisely for any battery system.
A mains battery charger brings the battery back to full charge following the profile set for its chemistry.
Key features
Victron part number: STG024100300Manufacturer's declared figure.
Frequency: 45-65 HzManufacturer's declared figure.
Power factor: 1Power as stated by the manufacturer.
Protection rating: IP21Protection rating against dust and water.
5-year warrantyWarranty as stated by the manufacturer.
Documentation availableThe manufacturer's datasheet is attached as a PDF in the Documentation section.
Technical specifications
| Feature | Value |
|---|---|
| Product code | STG024100300 |
| Manufacturer | Victron Energy |
| Victron part number | STG024100300 |
| Frequency | 45-65 Hz |
| Power factor | 1 |
| Protections | Output short circuit, battery reverse polarity detection, battery voltage too high, temperature too high |
| Protection rating | IP21 |
| Charging current | 100 A |
| Supported battery capacity | 500-1000 Ah |
| Dimensions (H × W × D) | 515 × 260 × 265 mm |
| Weight | 23 kg |
| Operating temperature | -40 ÷ +50 °C |
| Input | 3 × 400 VAC (320-450 VAC) |
| Absorption / float | 28.5 / 26.5 V |
| Warranty | 5 years |
