Victron Energy SmartSolar MPPT 150/70-MC4 VE.Can (150V 70A) Bluetooth regolatore di carica solare
Victron Energy SmartSolar MPPT 150/70-MC4 VE.Can (150V 70A) Bluetooth regolatore di carica solare
Regular price
€398.70
Regular price
Sale price
€398.70
Unit price
per
Couldn't load pickup availability
- Prices exclude VAT: tax is calculated in the cart based on the delivery country.
- EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
- Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.
AVAILABILITY
Product available, quantity not tracked
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: 60 € per order, with no threshold
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Delivery in 10-20 days5-year warrantyVictron Energy

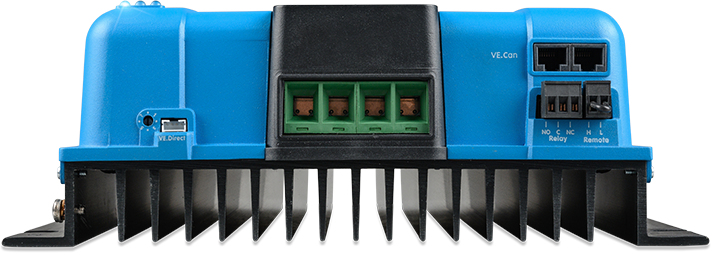

Victron Energy SmartSolar MPPT 150/70-MC4 VE.Can (150V 70A) Bluetooth solar charge controller
Victron Energy SmartSolar MPPT 150/70-MC4 VE.Can (150V 70A) Bluetooth solar charge controller is a Victron Energy solar charge controller. The declared figures are: Battery voltage 12/24/48 V automatic, Max PV open-circuit voltage (V) 150, Nominal charging current (A) 70. Product code: SCC115070511.
The SmartSolar MPPT VE.Can gets the most out of the solar panels while protecting the batteries: 98 % efficiency, plug-in display and VE.Can ports to network several charge controllers and synchronise their charging.
The charge controller matches the panel voltage to the battery voltage and manages charging; MPPT models do so by tracking the maximum power point.
Key features
Victron part number: SCC115070511Manufacturer's declared figure.
Battery voltage: 12/24/48 V automaticDeclared voltage value: check it against the limits of the connected equipment.
Max PV open-circuit voltage (V): 150Declared voltage value: check it against the limits of the connected equipment.
Nominal charge current (A): 70Maximum current allowed during charging.
5-year warrantyWarranty as stated by the manufacturer.
Documentation availableThe manufacturer's datasheet is attached as a PDF in the Documentation section.
Technical specifications
| Feature | Value |
|---|---|
| Product code | SCC115070511 |
| Manufacturer | Victron Energy |
| Victron part number | SCC115070511 |
| Battery voltage | 12/24/48 V automatic |
| Max PV open-circuit voltage (V) | 150 |
| Nominal charging current (A) | 70 |
| Maximum PV power | 12V: 1,000 W · 24V: 2,000 W · 36V: 3,000 W · 48V: 4,000 W |
| Max PV short-circuit current (A) | 50 (max 30 A per MC4 connector) |
| Weight (kg) | 3 |
| Dimensions (mm) – Tr | 185 × 250 × 95 |
| Dimensions (mm) – MC4 | 215 × 250 × 95 |
| Terminals | Tr or MC4 versions |
| VE.Can | non-VE.Can and VE.Can versions (VE.Can: 12/24/48 V automatic, 36 V manual) |
| Warranty | 5 years |
