Victron Energy
Victron Energy VE.Bus BMS V2 per batterie Lithium Smart
Victron Energy VE.Bus BMS V2 per batterie Lithium Smart
Regular price
€149.40
Regular price
Sale price
€149.40
Unit price
per
Couldn't load pickup availability
- Prices exclude VAT: tax is calculated in the cart based on the delivery country.
- EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
- Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.
AVAILABILITY
Product available, quantity not tracked
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: 60 € per order, with no threshold
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Delivery in 10-20 days5-year warrantyVictron Energy

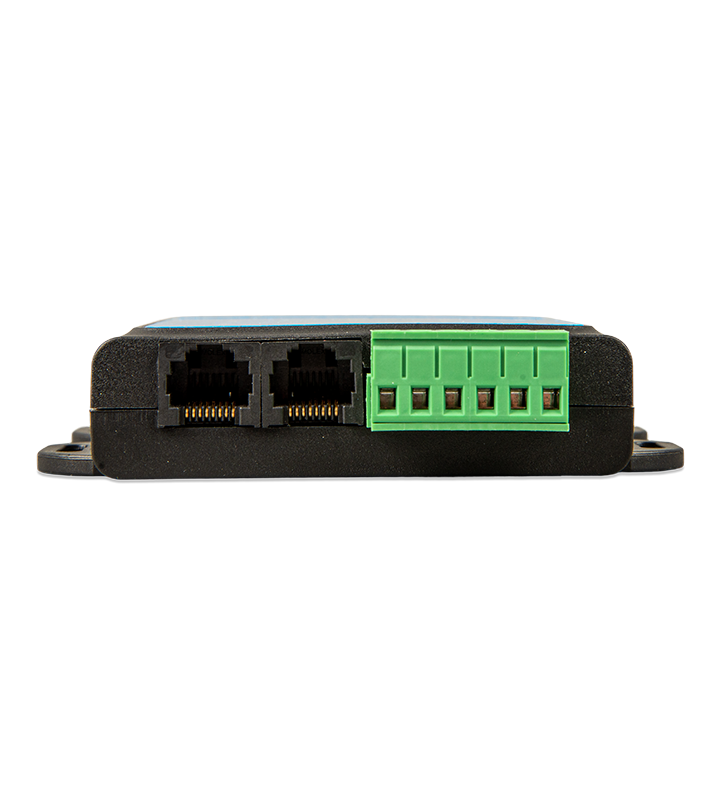

Victron Energy VE.Bus BMS V2 for Lithium Smart batteries
Victron Energy VE.Bus BMS V2 for Lithium Smart batteries is a Victron Energy accessory for storage systems and DC installations. The declared figures are: Input voltage 9-70 VDC, Protection IP20. Product code: BMS300200200.
The VE.Bus BMS V2 manages and protects one or more 12.8 V and 25.6 V Victron Lithium Battery Smart units in systems with Victron inverters or inverter/chargers using VE.Bus communication.
Accessories of this kind complete the wiring and the protection between battery, inverter and loads.
Key features
Victron part number: BMS300200200Manufacturer's declared figure.
Input voltage: 9-70 VDCDeclared voltage value: check it against the limits of the connected equipment.
Protection: IP20Manufacturer's declared figure.
5-year warrantyWarranty as stated by the manufacturer.
Documentation availableThe manufacturer's datasheet is attached as a PDF in the Documentation section.
Victron EnergyA Victron Energy branded product in the Litio Store catalogue.
Technical specifications
| Feature | Value |
|---|---|
| Product code | BMS300200200 |
| Manufacturer | Victron Energy |
| Victron part number | BMS300200200 |
| Input voltage | 9-70 VDC |
| Protections | IP20 |
| Weight (g) | 120 |
| Dimensions (mm) | 23.8 × 94.5 × 105.5 |
| Consumption | 10 mA operating (excluding load disconnect current), 2 mA cell low voltage, 1.5 mA remote off |
| GX power output | 1 A |
| AUX input | 1 A |
| Load disconnect output | normally high, 1 A output current limit |
| Charge disconnect output | normally high, 10 mA output current limit |
| Pre-alarm output | 1 A, not short-circuit protected |
| Supported batteries | 20 (102 kWh) |
| Operating temperature | -20 ÷ +50 °C |
| Warranty | 5 years |
