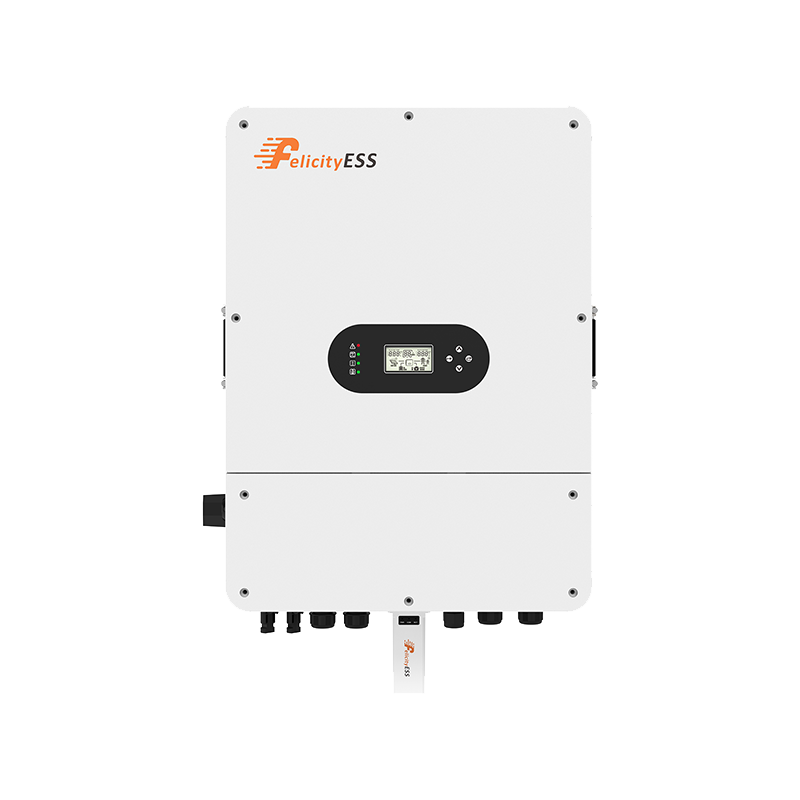

Felicity T-REX-10KLP3G01 10 kW Three-Phase Low-Voltage Hybrid Inverter 48 V
T-REX is the range Felicity took through TÜV certification, and the 10 kW three-phase is the size that comes up most often: a house on a three-phase meter, a small workshop, a farm stay. It runs on a 48 V battery bank and takes 13 kW of PV, a 30 per cent oversize that is exactly what you want in winter.
Two independent trackers up to 900 V DC leave room on the strings: you can run long strings, with less cable and lower losses. Efficiency peaks at 97 per cent and the unit weighs 39 kg, which two people can hang without trouble.
It handles grid, off-grid and UPS duty, and the changeover to the protected circuit stays under ten milliseconds. Ten-year manufacturer warranty. We ship within Italy and across the European Union.
At a glance
Part number: T-REX-10KLP3G01Genuine Felicity Solar product with the manufacturer's warranty.
Manufacturer: Felicity SolarGenuine Felicity Solar product with the manufacturer's warranty.
Model: T-REX-10KLP3G01Genuine Felicity Solar product with the manufacturer's warranty.
Rated AC power: 10 kWGenuine Felicity Solar product with the manufacturer's warranty.
Maximum AC power: 10 kWGenuine Felicity Solar product with the manufacturer's warranty.
Technical data
| Specification | Value |
|---|---|
| Part number | T-REX-10KLP3G01 |
| Manufacturer | Felicity Solar |
| Model | T-REX-10KLP3G01 |
| Rated AC power | 10 kW |
| Maximum AC power | 10 kW |
| Grid connection | Three phase 400 V |
| Maximum PV power | 13 kW |
| MPPT trackers | 2 |
| Maximum DC voltage | 900 V |
| DC current per MPPT | 30 A maximum |
| Battery voltage | 48 V |
| Battery current | per configuration |
| Maximum efficiency | 97 % |
| Backup switching | under 10 ms |
| Parallel operation | supported by the manufacturer |
| Protection rating | IP65 |
| Communication | Display, Wi-Fi, RS485, CAN |
| Cooling | Forced air |
| Dimensions | 655 × 475 × 266 mm |
| Weight | 39 kg |
| Warranty | 10 years |
