High voltage BMS control module Felicity FLH48100UCG2 up to 81.92kWh per cluster

High voltage BMS control module Felicity FLH48100UCG2 up to 81.92kWh per cluster

€599.89
€599.89
Sale Sold out Excl. VAT — calculated in the cart
See the price with VAT

Price including VAT by delivery country

  • Italy22% €731.86
  • Germany19% €713.86
  • France20% €719.86
  • Austria20% €719.86
  • Belgium21% €725.86
  • Bulgaria20% €719.86
  • Croatia25% €749.86
  • Cyprus19% €713.86
  • Czech Republic21% €725.86
  • Denmark25% €749.86
  • Estonia24% €743.86
  • Finland25.5% €752.86
  • Greece24% €743.86
  • Hungary27% €761.86
  • Ireland23% €737.86
  • Latvia21% €725.86
  • Lithuania21% €725.86
  • Luxembourg17% €701.87
  • Malta18% €707.87
  • Netherlands21% €725.86
  • Poland23% €737.86
  • Portugal23% €737.86
  • Romania21% €725.86
  • Slovakia23% €737.86
  • Slovenia22% €731.86
  • Spain21% €725.86
  • Sweden25% €749.86

Shown prices exclude VAT. At checkout the rate of the delivery country applies. Businesses with a valid EU VAT number buy without VAT (reverse charge).

See the shipping cost

Pallet shipping by country

up to 500 kgup to 750 kg
  • Italy230 € 320 €
  • Austria230 € 320 €
  • Belgium230 € 320 €
  • Czech Republic230 € 320 €
  • Denmark230 € 320 €
  • France230 € 320 €
  • Germany230 € 320 €
  • Luxembourg230 € 320 €
  • Netherlands230 € 320 €
  • Poland230 € 320 €
  • Spain230 € 320 €
  • Bulgaria320 € 410 €
  • Croatia320 € 410 €
  • Estonia320 € 410 €
  • Finland320 € 410 €
  • Greece320 € 410 €
  • Hungary320 € 410 €
  • Ireland320 € 410 €
  • Lithuania320 € 410 €
  • Portugal320 € 410 €
  • Romania320 € 410 €
  • Slovakia320 € 410 €
  • Slovenia320 € 410 €
  • Sweden320 € 410 €
  • Latvia320 € 329.24 €
  • Maltaon request
  • Cypruson request

The price does not include shipping. Goods travel on a pallet with a dedicated carrier: half pallet up to 500 kg, full pallet up to 750 kg. Above 750 kg the cart adds the further pallets on its own. The exact amount is shown in the cart.

Shipping not included

Not sold on its own: order it together with at least 5 FLH48100UMG2 modules

Available, quantity not tracked

 Configure your system in two minutes Pick the inverter and get the batteries it accepts, modules per string, switchboards, price per kWp and a cart ready to check out. Open the configurator →
See our resellers Become a distributor or reseller Contact us
  • Prices exclude VAT: tax is calculated in the cart based on the delivery country.
  • EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
View full details
Delivery in 10-20 daysBMS / control boxFelicity

High voltage BMS control module Felicity FLH48100UCG2 up to 81.92kWh per cluster

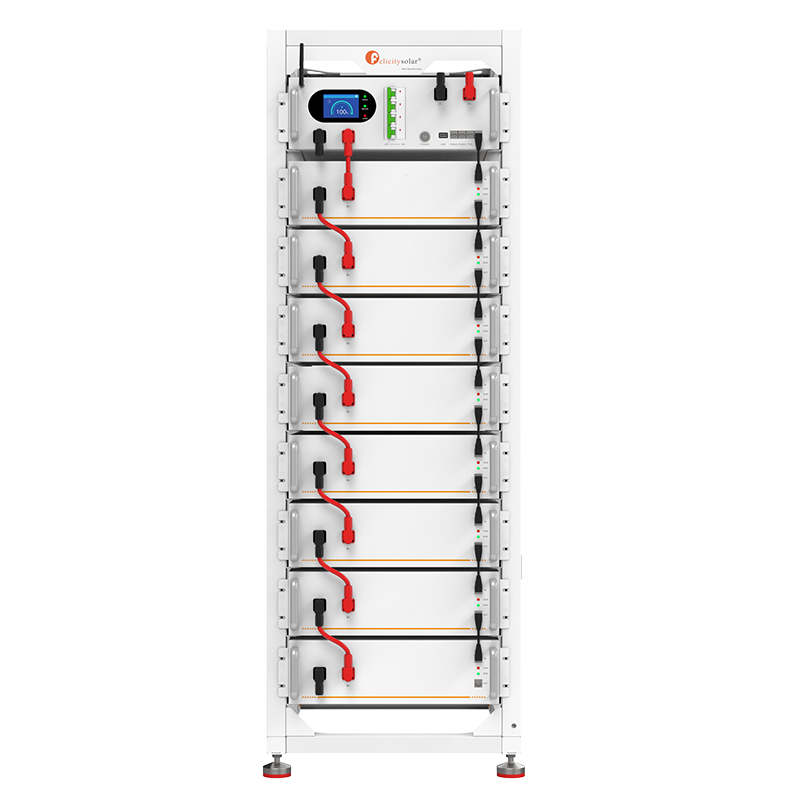

FLH48100UCG2 is the control module with BMS of Felicity's rack-mounted FLH series high voltage storage system. It manages 5 to 16 FLH48100UMG2 battery modules of 5.12kWh each, for clusters from 25.6 to 81.92kWh and a system voltage up to 921.6V; connecting up to 16 clusters in parallel takes the system beyond 1.3 MWh.

The smart BMS is configured and monitored over RS485, Wi-Fi, Bluetooth and USB and is compatible with high voltage inverters from the leading brands, including Felicity three-phase hybrids up to 125kW. Module-level balancing allows mixing new and already-in-service packs; protections include breaker and fuse, an aerosol extinguisher on every module, operating temperature from -20 to 55 °C, rack mounting with integrated grounding and a 10-year warranty.

Key features

Manages up to 16 modules5 to 16 FLH48100UMG2 modules per cluster: 25.6 to 81.92kWh, with system voltage up to 921.6V.

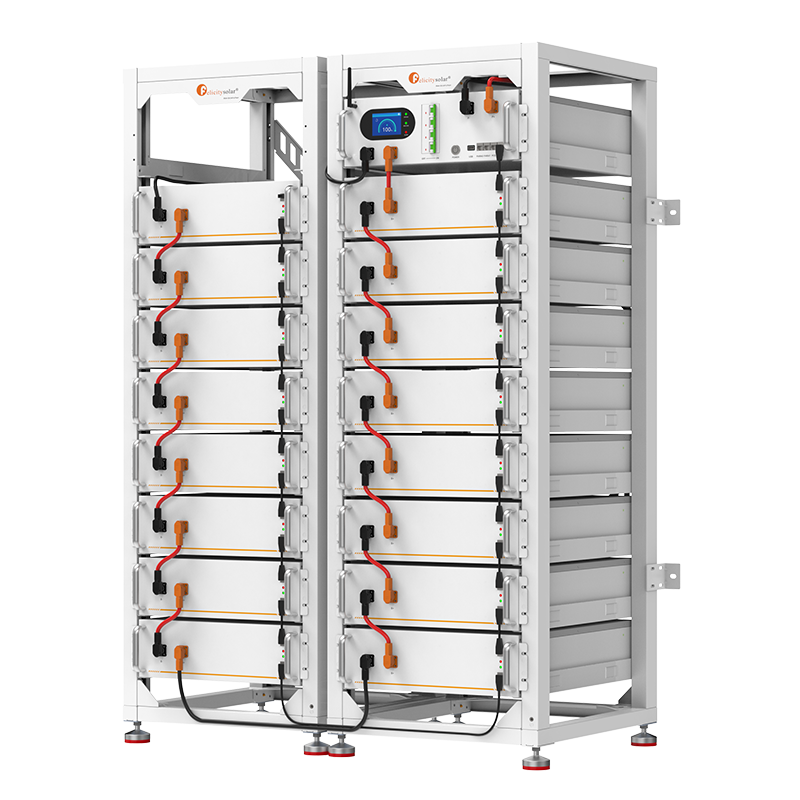

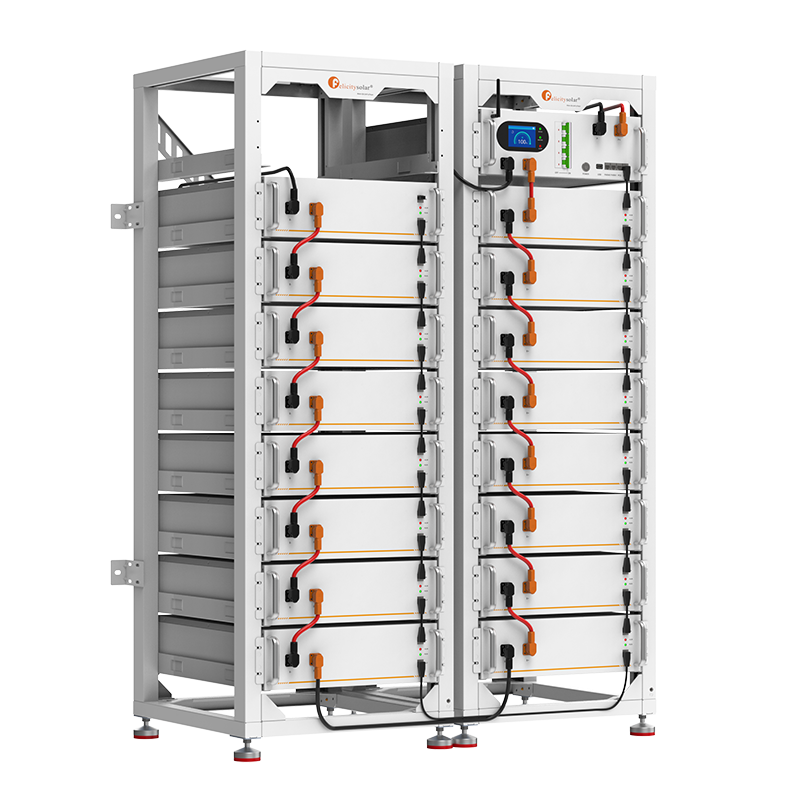

Up to 16 clusters in parallelA scalable architecture that takes the system beyond 1.3 MWh without changing the layout.
Multi-protocol BMSConfiguration and monitoring over RS485, Wi-Fi, Bluetooth and USB, with module-level voltage balancing.
New and old packs togetherModule-level balancing supports clusters with batteries of different ages, useful when expanding.

Technical specifications

FeatureValue
Product codeFLH48100UCG2
ModelFLH48100UCG2
Role in the systemControl module (BMS) for FLH48100UMG2 high voltage batteries
Managed modules5 to 16 FLH48100UMG2 modules per cluster
System energy25.6-81.92kWh per cluster
System voltageUp to 921.6V (51.2V nominal modules)
Clusters in parallelUp to 16 (over 1.3 MWh)
Depth of discharge (DOD)90%
System cycle life≥6,000 cycles
CommunicationRS485, Wi-Fi, Bluetooth and USB
BalancingModule level, supports packs of different ages in the same cluster
Inverter compatibilityLeading high voltage inverter brands, including Felicity hybrids up to 125kW
Ingress protectionIP20
Operating temperature-20 °C to 55 °C
ProtectionsSmart BMS, breaker, fuse and an aerosol extinguisher per module
InstallationRack mounted with integrated grounding, no extra ground wires
Warranty10 years

Documentation

PDFScheda tecnica sistema 50kW con FLH48100UG2 (EN)Official manufacturer document

Installation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
