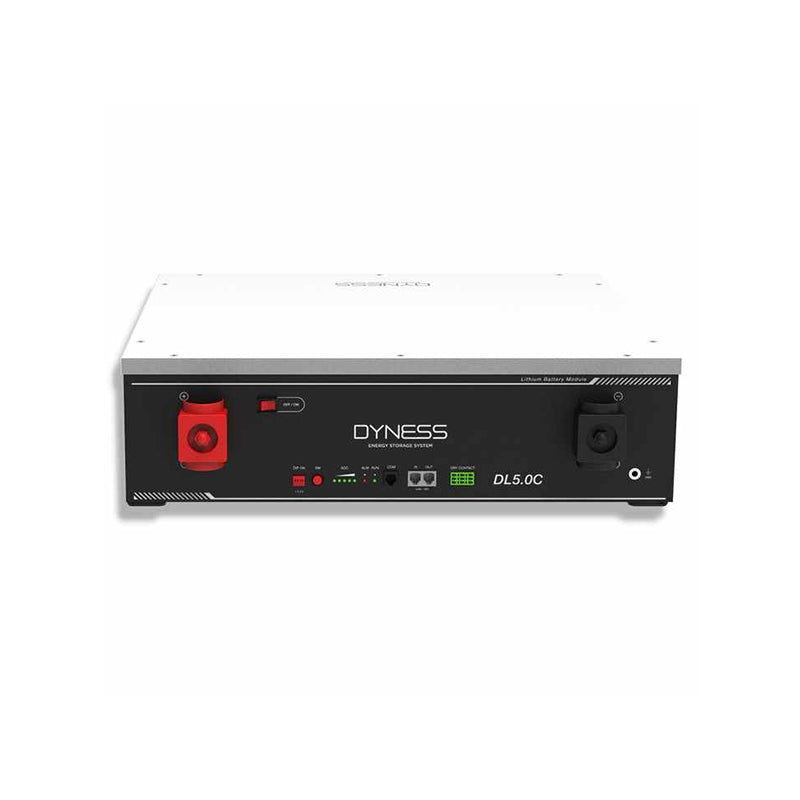

Dyness DL5.0C Low Voltage Storage Battery 5.12 kWh LiFePO4
Dyness DL5.0C Low Voltage Storage Battery 5.12 kWh LiFePO4
Regular price
€1,083.05
Regular price
Sale price
€1,083.05
Unit price
per
Tax included.
Couldn't load pickup availability
VAT note
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Businesses and non-Italian private customers: purchase with 22% VAT. The 10% rate is reserved for private customers resident in Italy — find out more.
Foreign companies entitled to 0% VAT: please write to info@litio.store.
Delivery in 10-20 daysStorage batteryLow voltage5.12 kWhDyness
Dyness DL5.0C Low Voltage Storage Battery 5.12 kWh LiFePO4
The Dyness DL5.0C is a low voltage lithium iron phosphate battery rated 51.2 V and 100 Ah, for a nominal energy of 5.12 kWh per module. It is designed for residential storage and for small commercial applications paired with 48 V hybrid or off-grid inverters, with which it communicates through the CAN (VCAN) and RS485 protocols.
The module integrates a BMS with cell level monitoring and balancing and protections against over-discharge, overcharge, overcurrent and abnormal temperatures; the charge and discharge currents are automatically adjusted according to the battery temperature. The DL5.0C supports discharges up to 1C (100 A continuous) and can be installed on the wall, on the floor or stacked up to 6 modules; in parallel it reaches 50 units for a maximum of 256 kWh. The declared service life exceeds 6,000 cycles.
Key features
5.12 kWh at 51.2 V100 Ah LiFePO4 module designed for low voltage storage systems (48 V platform).
1C dischargeSupports 100 A of continuous discharge, with a peak of 110 A for 15 seconds, for demanding loads.
Expandable up to 256 kWhUp to 6 stackable modules and up to 50 units that can be connected in parallel.
Flexible installationWall, floor or stacked mounting, to adapt to the available space.
BMS with cell balancingMonitoring and balancing at individual cell level, with full protections and current adjustment based on temperature.
Heating functionCharging is allowed down to -20 °C thanks to the integrated heating function.
Technical specifications
| Feature | Value |
|---|---|
| Product code | DL5.0C |
| Model | Dyness DL5.0C |
| Chemistry | LiFePO4 (lithium iron phosphate) |
| Nominal energy | 5,12 kWh |
| Usable energy | Not declared separately by the manufacturer |
| Rated voltage | 51,2 V |
| Voltage range | 44.8-57.6 V (recommended charge voltage 56.5 V) |
| Capacity | 100 Ah |
| Max charge current | 75 A continuous (recommended 50 A) |
| Max discharge current | 100 A continuous (1C); peak 110 A for 15 s |
| Charge/discharge power | Approx. 3.8 kW on charge and 5.12 kW on discharge (values derived from 51.2 V) |
| Depth of discharge (DoD) | Not declared |
| Modules per tower / scalability | Up to 6 stackable modules; up to 50 units in parallel, from 5.12 to 256 kWh |
| Compatible inverters | Low-voltage hybrid and off-grid inverters from the main brands in the Dyness compatibility list |
| Communication | CAN (VCAN) / RS485 |
| Protection rating | IP20 |
| Operating temperature | 0-+55 °C when charging (-20-+55 °C with heating function); -20-+55 °C when discharging |
| Dimensions (W x D x H) | 558 x 545 x 150 mm |
| Weight | 49,9 kg |
| Cycle life | Over 6,000 cycles |
| Warranty | Not declared on the official product page |
Documentation
PDFDatasheet DL5.0COfficial manufacturer documentPlease check compatibility with your inverter and with the other modules in the tower before ordering. Installation must be carried out by qualified personnel in accordance with the applicable standards.
