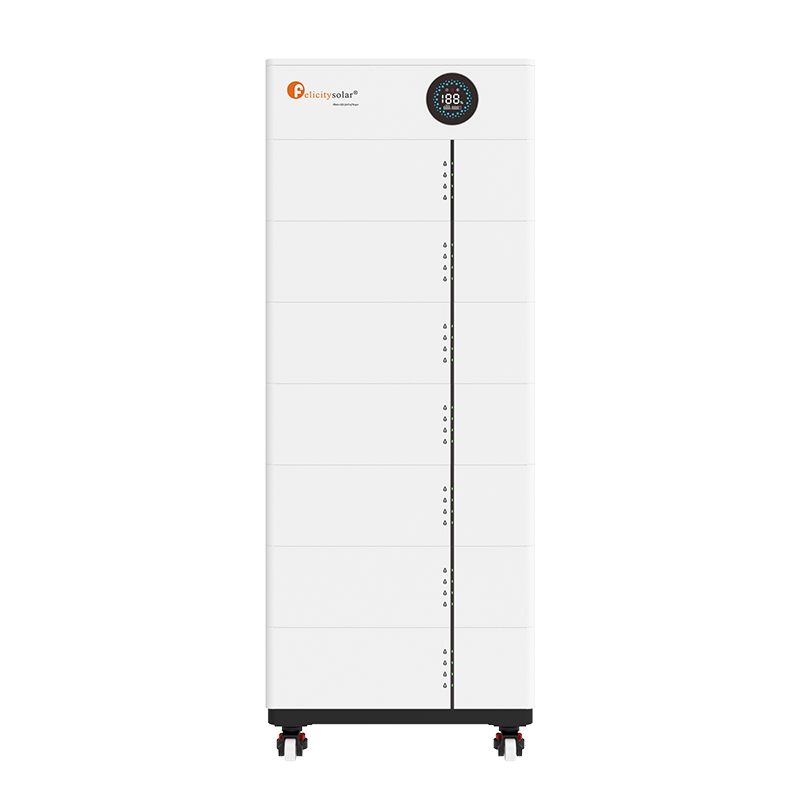

Felicity FLS48100SMG1 Low-Voltage Stackable Battery Module 5.12 kWh LiFePO4
Felicity FLS48100SMG1 Low-Voltage Stackable Battery Module 5.12 kWh LiFePO4
Regular price
€952.82
Regular price
Sale price
€952.82
Unit price
per
Tax included.
AVAILABILITY
Product available, quantity not tracked
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: €60 on orders up to €350, free shipping over €350.
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Couldn't load pickup availability
Prices shown include 22% Italian VAT. The 10% rate applies only to goods for photovoltaic and storage systems, with a declaration from the customer. From outside Italy: pick 22% VAT, or for 0% VAT place the order by bank transfer without paying and we will send a proforma invoice.
How VAT works ›
How VAT works ›
Delivery in 10-20 daysFelicity Solar
Felicity FLS48100SMG1 Low-Voltage Stackable Battery Module 5.12 kWh LiFePO4
The FLS range is Felicity's 48 V tower: the same idea as the high-voltage systems, but with the voltage staying at 51.2 V and therefore compatible with every low-voltage hybrid inverter commonly fitted. The FLS48100SMG1 is the 5.12 kWh expansion module.
It stacks onto the BMS base from the same series and gets added as consumption grows: no external power cables, no separate cabinet to buy. LiFePO4 cells, 100 Ah, 51.2 V nominal.
At least one FLS48100SCG1 base is required to close the group and talk to the inverter. Ten-year manufacturer warranty. We ship within Italy and across the European Union.
At a glance
Part number: FLS48100SMG1Genuine Felicity Solar product with the manufacturer's warranty.
Manufacturer: Felicity SolarGenuine Felicity Solar product with the manufacturer's warranty.
Model: FLS48100SMG1Genuine Felicity Solar product with the manufacturer's warranty.
Cell chemistry: LiFePO4Genuine Felicity Solar product with the manufacturer's warranty.
Nominal energy: 5.12 kWhGenuine Felicity Solar product with the manufacturer's warranty.
Technical data
| Specification | Value |
|---|---|
| Part number | FLS48100SMG1 |
| Manufacturer | Felicity Solar |
| Model | FLS48100SMG1 |
| Cell chemistry | LiFePO4 |
| Nominal energy | 5.12 kWh |
| Capacity | 100 Ah |
| Nominal voltage | 51.2 V |
| Voltage range | 47.5 – 57.6 V |
| Charge and discharge current | 50 A nominal, 100 A maximum |
| Depth of discharge | 90 % |
| Round-trip efficiency | 95 % |
| Cycle life | 6,000 at 80 % DOD |
| Discharge temperature | -20 … +55 °C |
| Charge temperature | 0 … +55 °C |
| Protection rating | IP21 |
| Communication | CAN, RS485, screen and app |
| Expansion | stacks on the FLS48100SCG1 base |
| Mounting | Floor stacking |
| Dimensions | — |
| Weight | — |
| Warranty | 10 years |
