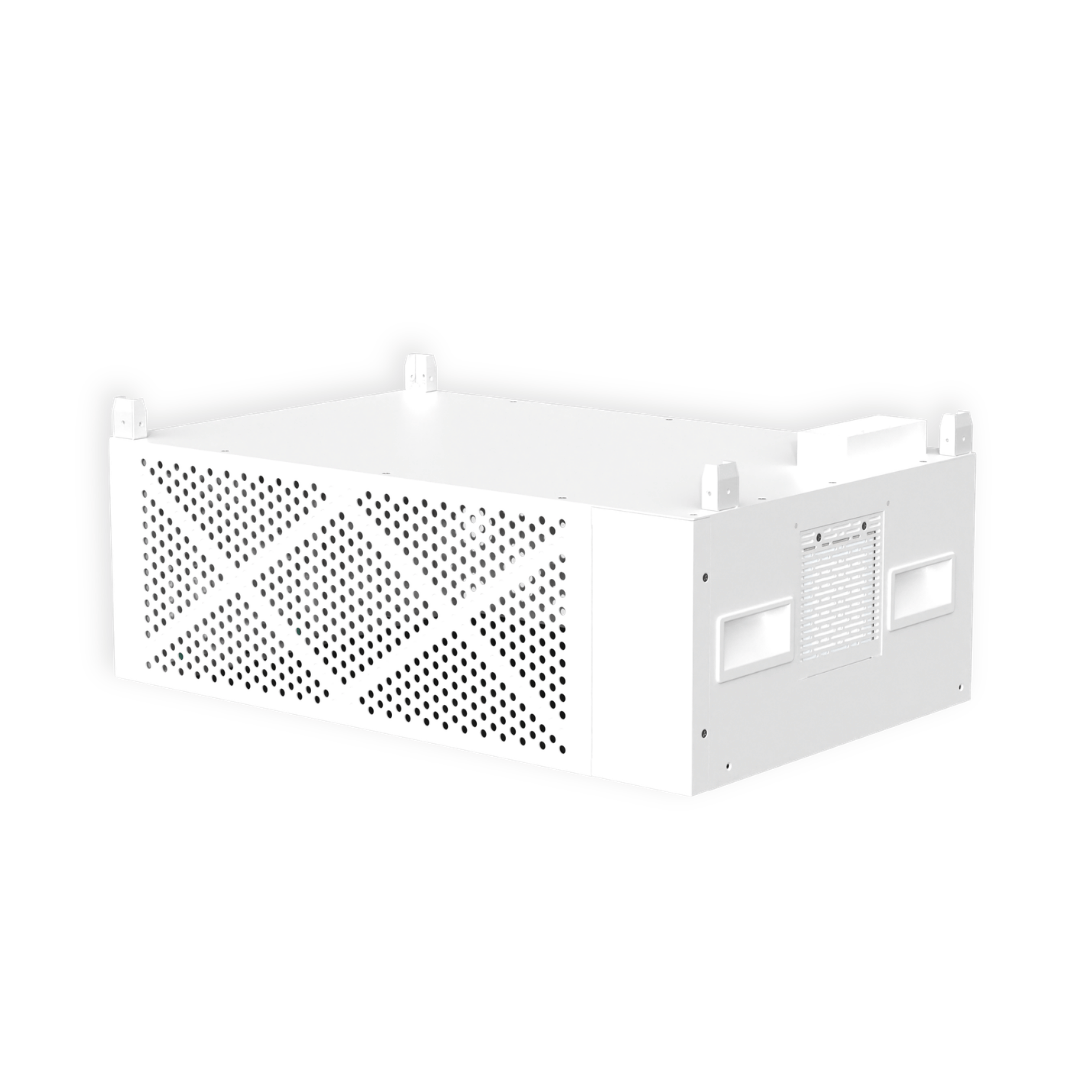

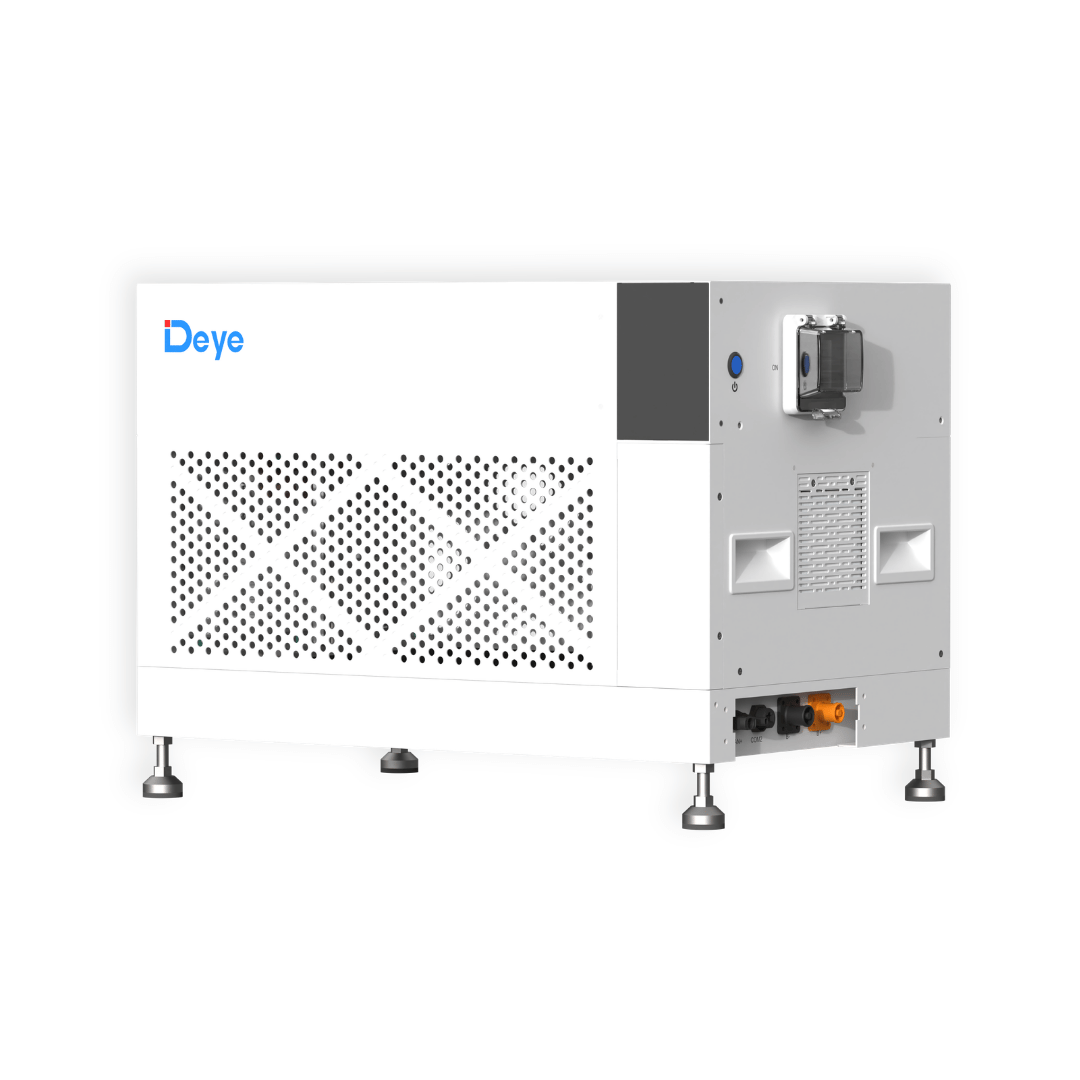

Deye GB-W-Pack12-2-A3 Battery Module 12.03 kWh LiFePO4 High Voltage
The Deye GB-W-Pack12-2-A3 is the 12.03 kWh LiFePO4 battery module of the GB-W series, the stackable high-voltage storage for indoor commercial and industrial applications. Each pack carries 235 Ah at 51.2 V and handles 230 A continuous charge and discharge, with peaks of 322 A for one second.
From 5 to 16 packs stack in series on the GB-W-Base and are managed by the GB-W-PDU-2 control box: stacks of 60.1 to 192.5 kWh, at 256 to 819.2 V, to pair with Deye hybrid inverters and PCS from 30 to 125 kW. Natural air cooling, no liquid circuit to maintain, ten-year warranty.
Key features
12.03 kWh per pack235 Ah LiFePO4 cells at 51.2 V: a handful of modules is enough to pass 100 kWh of storage.
230 A continuousCharge and discharge at 1C, with peaks of 322 A for one second: fit for heavy industrial loads.
Stacks of 5-16 packsFrom 60.1 to 192.5 kWh per cluster, run by the GB-W-PDU-2 control box on the GB-W-Base.
Natural air coolingNo liquid cooling circuit to maintain, with cells kept within a few degrees of each other.
Technical specifications
| Feature | Value |
|---|---|
| Product code | GB-W-Pack12-2-A3 |
| Nominal energy | 12.03 kWh |
| Nominal capacity | 235 Ah |
| Nominal voltage | 51.2 V |
| Cell chemistry | LiFePO4 (LFP) |
| Max continuous charge/discharge current | 230 A |
| Peak current | 322 A (1 s) |
| Packs in series per cluster | 5 to 16 |
| Cluster nominal voltage | 256 to 819.2 V |
| Cluster energy | 60.1 to 192.5 kWh |
| Usable cluster energy (90% DoD) | 54.1 to 173.2 kWh |
| Recommended depth of discharge | 90% |
| Cycle life | ≥ 6,000 (25±2 °C, 0.5C/0.5C, 70% EOL) |
| Communication | CAN / RS485, Modbus RTU, Bluetooth |
| Cooling | natural air cooling |
| Ingress protection | IP20 |
| Operating temperature | charge 0~55 °C / discharge -20~55 °C |
| Dimensions (W×D×H) | 690 × 436 × 270 mm |
| Weight | 93 kg |
| Matching control box and base | GB-W-PDU-2 (200~1000 Vdc, 230 A) and GB-W-Base |
| Certifications | IEC 62619 / IEC 62477 / IEC 62040 / IEC 62933 / VDE 2510 / IEC 61000 / UN 38.3 |
| Warranty | 10 years |
Documentation
PDFManuale utente GB-WX (EU, EN/DE)Official manufacturer documentPDFGuida rapida GB-WX (EU, EN/DE)Official manufacturer documentPDFBrochure soluzione ORION W / serie GB-W (EU)Official manufacturer documentPDFDichiarazione di conformità UE GB-W-Pack12-2-A3Official manufacturer documentInstallation and wiring must be carried out by qualified personnel in accordance with the applicable standards and the electrical design of the system.
