Deye GB-W 60.15kWh LiFePO4 256V high voltage rack storage system
Deye GB-W 60.15kWh LiFePO4 256V high voltage rack storage system
Regular price
€9,294.12
Regular price
Sale price
€9,294.12
Unit price
per
See the price with VAT
Price including VAT by delivery country
- Italy22% €11,338.82
- Germany19% €11,060.00
- France20% €11,152.94
- Austria20% €11,152.94
- Belgium21% €11,245.88
- Bulgaria20% €11,152.94
- Croatia25% €11,617.65
- Cyprus19% €11,060.00
- Czech Republic21% €11,245.88
- Denmark25% €11,617.65
- Estonia24% €11,524.70
- Finland25.5% €11,664.12
- Greece24% €11,524.70
- Hungary27% €11,803.53
- Ireland23% €11,431.76
- Latvia21% €11,245.88
- Lithuania21% €11,245.88
- Luxembourg17% €10,874.12
- Malta18% €10,967.06
- Netherlands21% €11,245.88
- Poland23% €11,431.76
- Portugal23% €11,431.76
- Romania21% €11,245.88
- Slovakia23% €11,431.76
- Slovenia22% €11,338.82
- Spain21% €11,245.88
- Sweden25% €11,617.65
Shown prices exclude VAT. At checkout the rate of the delivery country applies. Businesses with a valid EU VAT number buy without VAT (reverse charge).
Available, quantity not tracked
Couldn't load pickup availability
- Prices exclude VAT: tax is calculated in the cart based on the delivery country.
- EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
- Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.
Shipping
- Italy: €13 on orders up to €150, free shipping over €150.
- European Union: 60 € per order, with no threshold
Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.
Kit offer: Buying this kit costs less than buying the same products one by one: there is a single delivery and a lower mark-up. To look at the products in detail and get a tailored quote, visit SolarGear.eu.

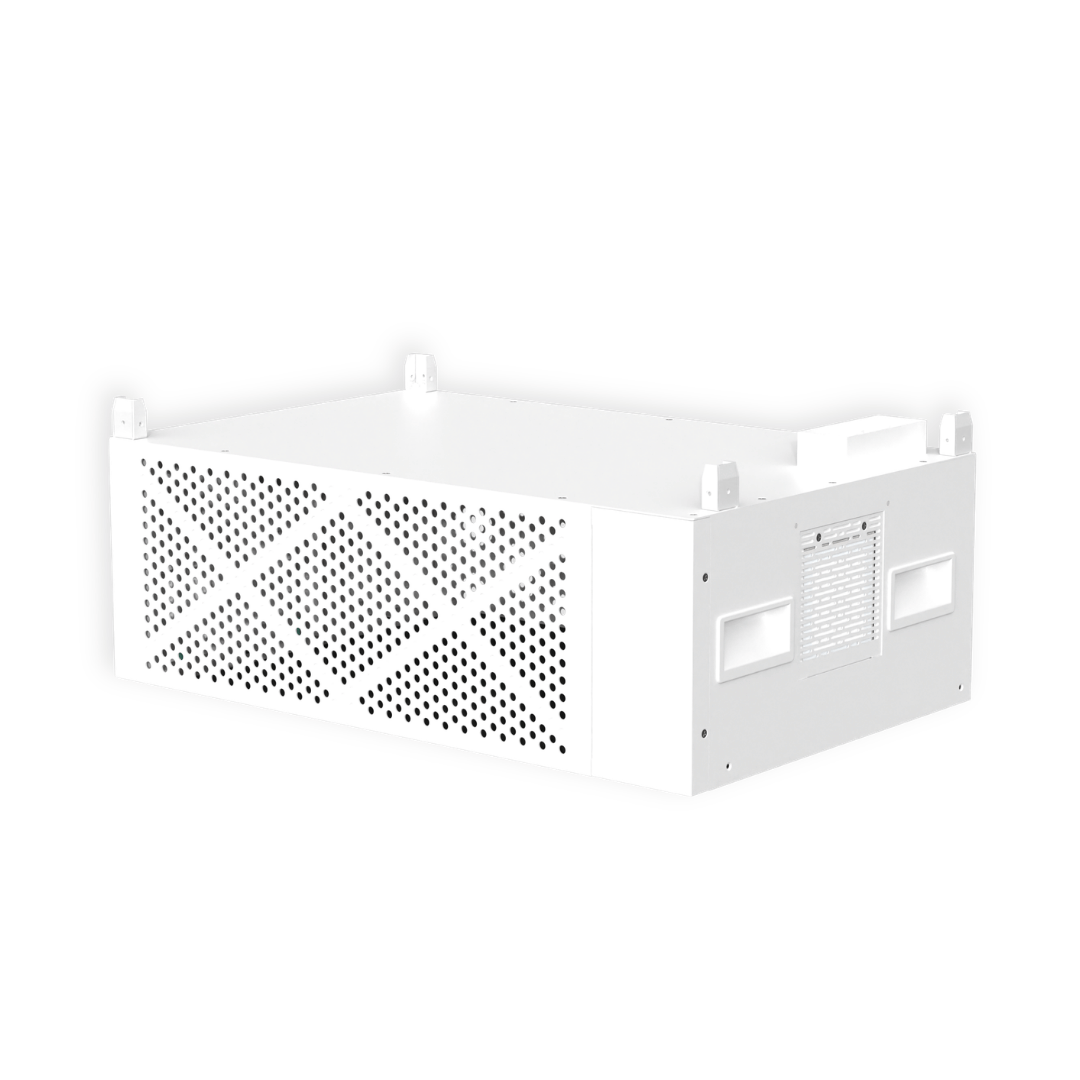

Deye GB-W 60.15kWh LiFePO4 256V high voltage rack storage system
This is not a single part, it is the whole cluster ready to install: 5 GB-W-Pack12-2-A3 modules, the Deye GB-W-PDU-2 PDU control box and the Deye GB-W-Base mounting base under one code. 60.15kWh at 256V, about 54.1kWh usable at 90% depth of discharge. Compared with buying the parts separately, the module count already matches the cabinet and the control box belongs to the same generation: nothing to cross-check, nothing left over or missing. It pairs with Deye high voltage hybrid inverters and PCS units. The series takes from 5 to 16 packs, 60.1 to 192.5kWh, so the system can grow later.
What the system contains
| Component | Qty |
|---|---|
| Deye GB-W-Pack12-2-A3 12.03kWh battery module | 5 |
| Deye GB-W-PDU-2 PDU control box | 1 |
| Deye GB-W-Base mounting base | 1 |
Technical data
| Item | Value |
|---|---|
| Nominal energy | 60.15kWh |
| Usable energy (90% DoD) | 54.1kWh |
| Cluster nominal voltage | 256V |
| Modules in series | 5 |
| Maximum charge and discharge current | 230A |
| Cell chemistry | LiFePO4 cells |
| System weight | 655 kg |
| Shipping | palletised, with a dedicated carrier quoted on the delivery address |
| Warranty | 10 years |
| Product code | SIST-GBW-60 |
The components are also sold separately: for a different size just change the number of modules, within the minimum and the cabinet capacity. Installation and wiring must be carried out by qualified personnel according to the applicable standards.
