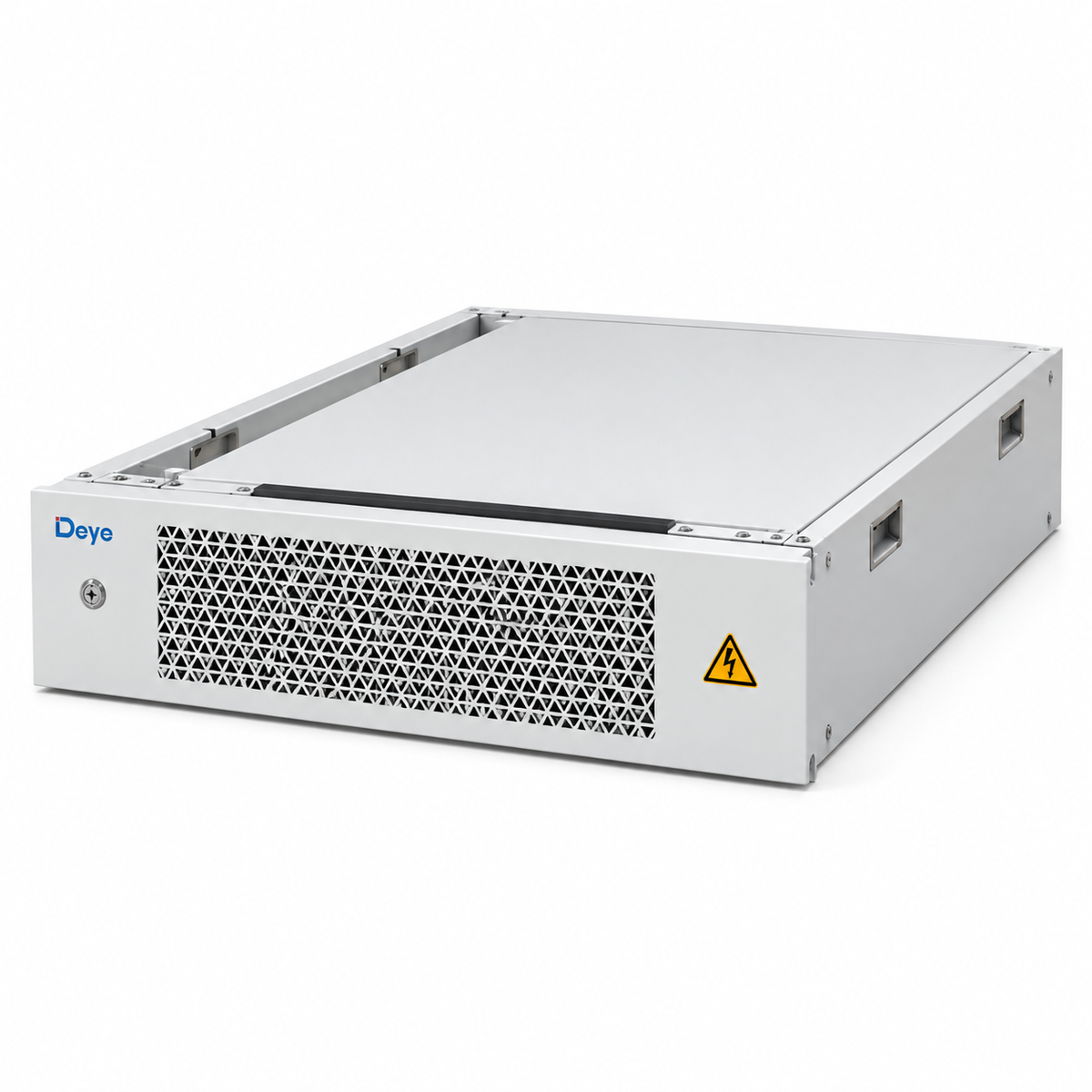

Deye SUN-MPPT-L01-EU-AM8 MPPT module 200kWp 8 trackers for PCS

Deye SUN-MPPT-L01-EU-AM8 MPPT module 200kWp 8 trackers for PCS

€2,123.99
€2,123.99
Sale Sold out Excl. VAT — calculated in the cart
See the price with VAT

Price including VAT by delivery country

  • Italy22% €2,591.26
  • Germany19% €2,527.54
  • France20% €2,548.78
  • Austria20% €2,548.78
  • Belgium21% €2,570.02
  • Bulgaria20% €2,548.78
  • Croatia25% €2,654.98
  • Cyprus19% €2,527.54
  • Czech Republic21% €2,570.02
  • Denmark25% €2,654.98
  • Estonia24% €2,633.74
  • Finland25.5% €2,665.60
  • Greece24% €2,633.74
  • Hungary27% €2,697.46
  • Ireland23% €2,612.50
  • Latvia21% €2,570.02
  • Lithuania21% €2,570.02
  • Luxembourg17% €2,485.06
  • Malta18% €2,506.30
  • Netherlands21% €2,570.02
  • Poland23% €2,612.50
  • Portugal23% €2,612.50
  • Romania21% €2,570.02
  • Slovakia23% €2,612.50
  • Slovenia22% €2,591.26
  • Spain21% €2,570.02
  • Sweden25% €2,654.98

Shown prices exclude VAT. At checkout the rate of the delivery country applies. Businesses with a valid EU VAT number buy without VAT (reverse charge).

Available, quantity not tracked

PV string calculator Work out how many modules per string before you order: open-circuit voltage in the cold, MPPT limits, current per tracker.
  • Prices exclude VAT: tax is calculated in the cart based on the delivery country.
  • EU businesses: 0% VAT with a VAT number valid in VIES — the field appears at checkout, below the delivery address.
  • Reduced 10% VAT on solar and storage for customers in Italy: write to us before ordering.

Shipping

  • Italy: €13 on orders up to €150, free shipping over €150.
  • European Union: 60 € per order, with no threshold

Rates apply to the cart total and are confirmed at checkout, where shipping to countries outside the EU is also calculated.

Read the full shipping conditions

View full details
Deye

Deye SUN-MPPT-L01-EU-AM8 MPPT module 200kWp 8 trackers for PCS

This is the module that brings the solar array into a Deye industrial storage system: eight independent MPPT trackers, up to 200kWp of modules and a DC output between 630 and 1000V that feeds the PCS directly. It sits next to the PCS, stacks up to eight units and talks to the rest of the system over CAN and RS485. We supply it with the industrial storage kits that include it, not as a stand-alone part: the sizing depends on the PCS and on how many battery clusters there are.

Technical data

ItemValue
PV power that can be connected200kWp
MPPT trackers8
DC voltagePV up to 800V, start-up at 200V
MPPT voltage range180-750V, 450-750V at full load
Maximum current40A per input, 60A short circuit
DC output630-1000V, 200A maximum
Maximum efficiencyover 99%, MPPT over 99.9%
Dimensions (W x H x D)543 x 198 x 700mm
Weight41.75kg
Protection ratingIP65
Operating temperature-40 / +60 °C
Coolingair cooled
CommunicationCAN, RS485
Declared certificationsIEC/EN 62109-1
Product codeSUN-MPPT-L01-EU-AM8

Documents

PDFOfficial Deye datasheet

This item is not sold separately: it is supplied with the industrial storage kit that includes it. If you need it as a spare or to extend an existing installation, write to us and we will quote it. Installation and wiring must be carried out by qualified personnel according to the applicable standards.
